Features of Refrigerated Centrifuge iTDL-6MX
- Microprocessor control, speed control by frequency-conversion and CFC compressor.Maintenance free Frequency-conversion motor without carbon dust pollution.
- Advanced door lid control system can both electric control open and close door lid, also equipped with emergency lid lock release to avoid power off unexpected.
- 10 programs can be stored, quickly recall the last used program.
- Automatic rotor identification to avoid over speed running by mistake operate.
- Easy operation, 7 inches LCD touch panel, shows all parameters in screen.
- With Emergency lid lock release, in case of power off.
- Error minder for wrong operate or problem.
Technical Parameters of Refrigerated Centrifuge iTDL-6MX
| Model | iTDL-6MX | Speed Accuracy | ±50r/min |
| Max Speed | 6000r/min | Timer Range | 0~99min |
| Max RCF | 5600xg | Temp Range | －20℃~﹢40℃ |
| Display | LCD Touch display | Max Capacity | 4×250ml |
| Noise | ≤60dB(A) | Power Supply | AC220v&110V 50Hz 18A |
| Weight | 85kg | Dimension | 720x500x420mm |

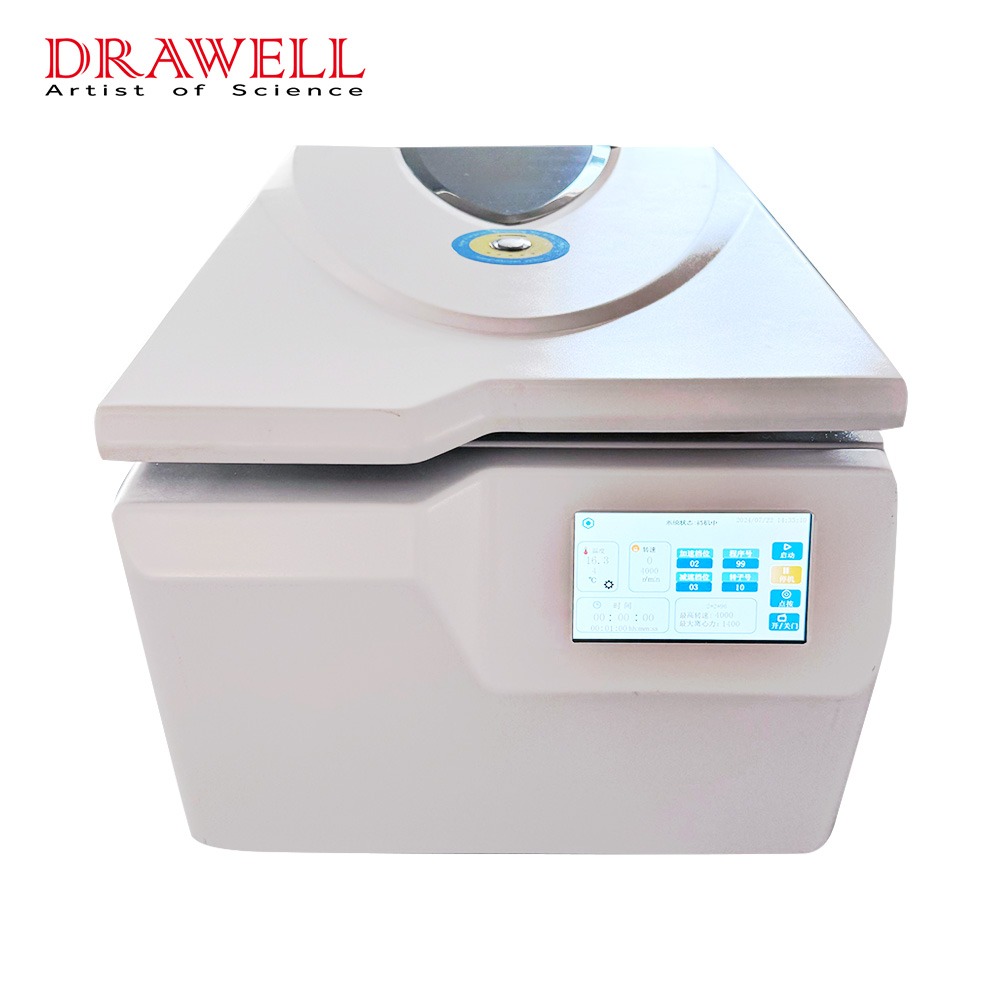

Refrigerated Centrifuge iTDL-6MX Display
Rotors of Refrigerated Centrifuge iTDL-6MX
| No.1 AR |  |
Max Speed:6000r/min | No.2 SR |  |
Max Speed:4000r/min |
| Capacity:12×15/10ml | Capacity:24×10/15ml | ||||
| Max RCF:5600xg | Max RCF:3020xg | ||||
| No.3 SR |  |
Max Speed:4000r/min | No.4 SR |  |
Max Speed:4000r/min |
| Capacity:32×10/15ml | Capacity:4/8×50ml | ||||
| Max RCF:3020xg | Max RCF:3020xg | ||||
| No.5 SR |  |
Max Speed:4000r/min | No.6 SR |  |
Max Speed:4000r/min |
| Capacity:72×2/5ml | Capacity:48×5ml | ||||
| Max RCF:3020xg | Max RCF:3000xg | ||||
| No.7 SR |  |
Max Speed:4000r/min | No.8 SR |  |
Max Speed:4000r/min |
| Capacity:4/8×100ml | Capacity:4×250ml | ||||
| Max RCF:3020xg | Max RCF:3300xg | ||||
| No.9 SR |  |
Max Speed:4000r/min | No.10 MTP |  |
Max Speed:3000r/min |
| Capacity:48×10/15ml | Capacity:2x2x96holes | ||||
| Max RCF:3020xg | Max RCF:2300xg |
Note: Rotors can be customized
