Flame Photometer
What is Flame Photometer?
The flame photometer refers to a clinical laboratory analytical instrument based on emission spectroscopy, used to determine the concentration of certain metal ions, including potassium(K), sodium(Na), lithium(Li), calcium(Ca), and barium(Ba).
The basic principle of the flame photometer is to use flame as the excitation light source and apply a photoelectric detection system to measure the radiation intensity emitted when the excited element returns from the excited state to the ground state. Judge the element type and content based on its characteristic spectrum and lightwave intensity. It is mainly composed of a light source, a light-splitting system, and a detection system.
The FP series flame photometer is a new photometer, which uses LPG burning gas as fuel. It has the advantages of small size, simple structure, convenient operation, stability, and reliability. The machine adopts a liquid crystal display, and keyboard operation, and can store up to 10 points of a standard curve and 200 sets of test data.
Features of Flame Photometer
- USB Interface(Except FP640)
- LPG as burning gas
- Direct concentration read-out
- Measuring range adjustable
- 7-inch LCD touchscreen
- Automatic Calculation of correlation coefficient (Except FP640)
- Pre-selection of flame sizes
- Flameout protection device
- Measuring range changing
- Air compressor including
Applications of Flame Photometer
Flame Photometer is widely used in agricultural fertilizer, soil analysis, cement analysis, analysis and determination of silicic acid industry; clinical laboratory, and pathological research of medical and health.
- Testing of building materials such as cement, glass, ceramics, and refractory materials;
- Testing of fertilizer and soil;
- Testing of mining, petroleum, metallurgical and chemical products;
- Testing of foods such as pharmaceuticals and beverages;
- Testing of municipal solid waste;
- Tests for various experiments in scientific research, health, teaching, and other fields.
General Specifications
| Reproducibility | ≤ 2% |
| Stability | < 3% |
| Response Time | < 8 seconds |
| Sample uptake volume | ＜6ml/minute |
| Printer | Integral Thermal Printer |
| USB data output | Optional FP win data collection software |
| Display | 7 inch Colour LCD touch screen |
| Concentration units | ug/ml, mg/100ml, mmol/l, meq/l |
| Gases | LPG, natural gas, propane-butane |
| Dimensions | 400 x 250 x 500 mm |
| Weight | 8kgs |
Specifications of Flame Photometer
|
|
FP6450 |
FP6440 |
FP6431 |
FP6430 |
FP6410 |
FP640 |
|
|
Operation mode |
7- inch color touch- screen |
||||||
|
Display value |
Concentration value |
Optical power |
|||||
|
Data range |
0.000～999.9 |
000.0～999.9 |
0000～9999 |
||||
|
Testable |
K, Na, Li, Ca, Ba |
K, Na, Li, Ca |
K, Na, Ca |
K, Na, Li |
K, Na |
K, Na |
|
|
Channel Qty. |
5 |
4 |
3 |
2 |
|||
|
Range ppm |
K |
0-100 |
|||||
|
Na |
0-160 |
||||||
|
Li |
0-100 |
o |
0-100 |
o |
o |
||
|
Ca |
0-1000 |
0-1000 |
o |
o |
o |
||
|
Ba |
0-3000 |
o |
o |
o |
o |
o |
|
|
LOD ppm |
K |
0.01 |
|||||
|
Na |
0.01 |
||||||
|
Li |
0.1 |
o |
0.1 |
o |
o |
||
|
Ca |
2 |
2 |
o |
o |
o |
||
|
Ba |
6 |
o |
o |
o |
o |
o |
|
|
Linear error |
K |
0.195 |
|||||
|
Na |
0.69 |
||||||
|
Li |
0.15 |
o |
0.15 |
o |
o |
||
|
Ca |
3 |
3 |
o |
o |
o |
||
|
Ba |
9 |
o |
o |
o |
o |
o |
|
|
Response time |
<8s |
||||||
|
Sample uptake |
<6ml/min |
||||||
|
Stability |
< 3% drift over15s when continuously aspirating. |
||||||
|
Reproducibility |
< 3% coefficient of variation for 7 consecutive samples |
||||||
|
Curve Graph |
Display |
o |
o |
||||
|
Printer |
Optional build-in thermal printer |
o |
|||||
|
COM |
USB |
o |
|||||
|
Fuel |
LPG |
||||||
|
Power |
AC220V±22V 50Hz±1Hz,250W |
||||||
|
Packing size |
570mmX530mmX400mm 0.12M3 18kg |
||||||

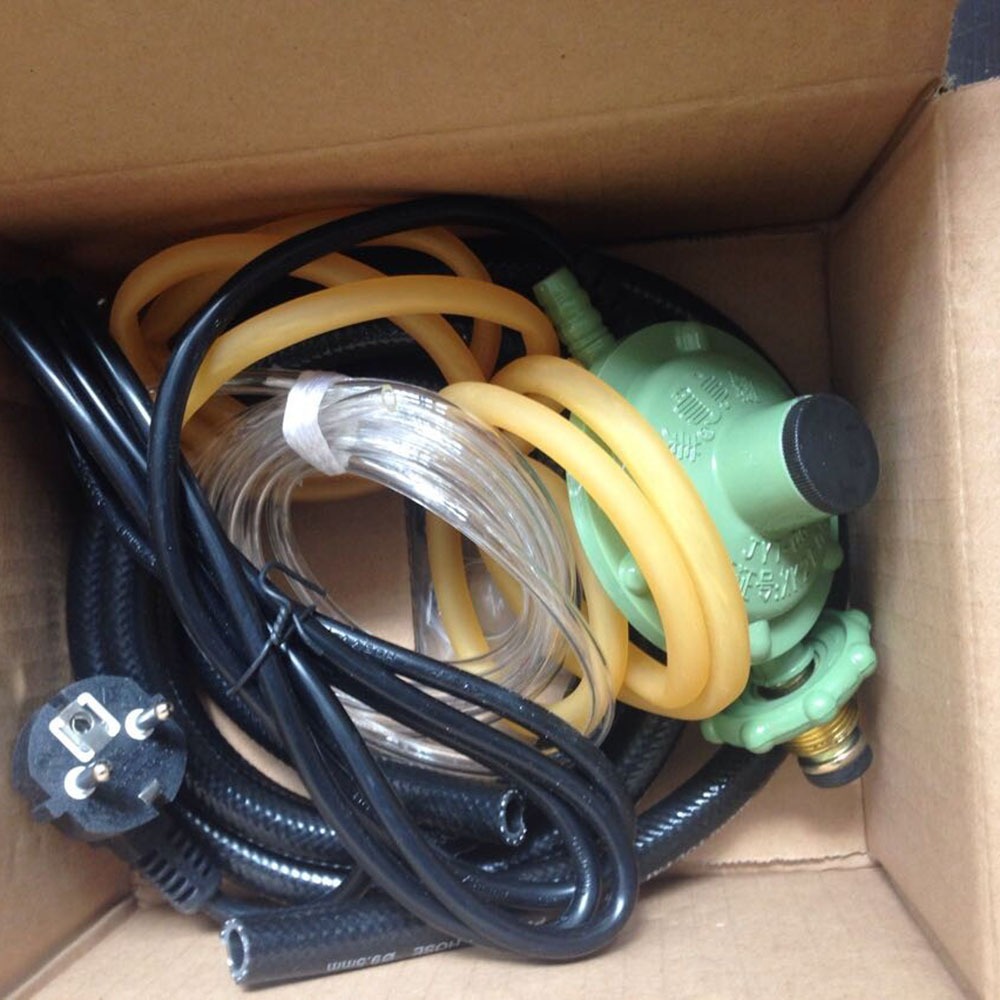

Packing List of Flame Photometer
| Item. | Quantities | Qty. |
| 1 | Main Instrument | 1 |
| 2 | User manual | 1 |
| 3 | Power Cable | 1 |
| 4 | Air Compressor | 1 |
| 5 | Pu pipe(air)Φ6*4 | 2M |
| 6 | Latex Pipe(liquid waste)Φ6 | 1.5M |
| 7 | Capillary(1.8*0.8*180) | 1 |
| 8 | Rubber pipe(liquefied gas)Φ10 | 2M |
| 9 | Liquefied gas regulator | 1 |
| 10 | Locking chuck (liquefied gas) | 1 |
| 11 | Glass Cover | 1 |
| 12 | Cover part(chimney cover) | 1 |
Detection Limits of Flame Photometer
|
Element |
mmol/L |
Ppm(ug/ml) |
|
Potassium (K) |
≤ 0.004 |
≤ 0.156 |
|
Sodium (Na) |
≤ 0.008 |
≤ 0.184 |
|
Lithium (Li) |
≤ 0.015 |
≤ 0.104 |
|
Calcium (Ca) |
≤ 0.050 |
≤ 2.00 |
|
Barium (Ba) |
≤ 0.044 |
≤ 6.03 |
Linear Error of Flame Photometer
|
Element |
mmol/L |
|
Potassium (K) |
≤0.005 |
|
Sodium (Na) |
≤0.03 |
|
Lithium (Li) |
≤0.021 |
|
Calcium (Ca) |
≤0.075 |
|
Barium (Ba) |
≤0.066 |

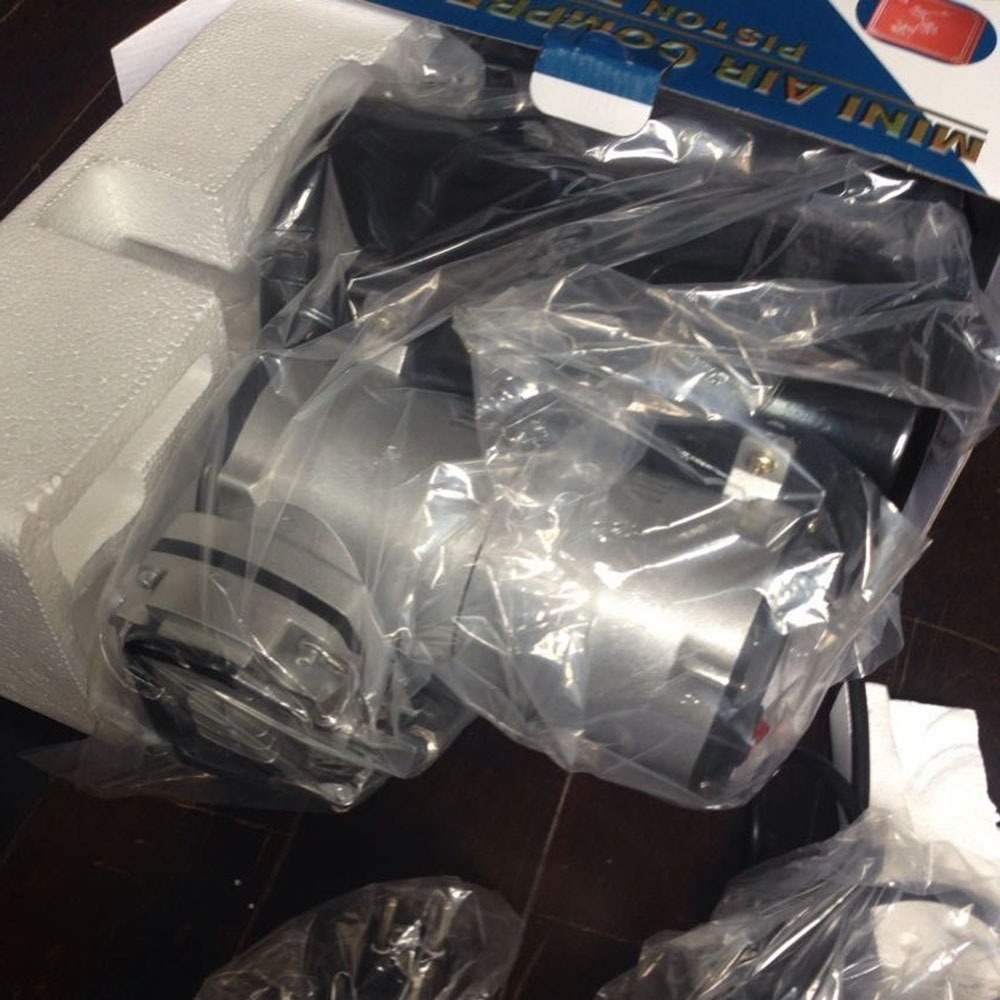

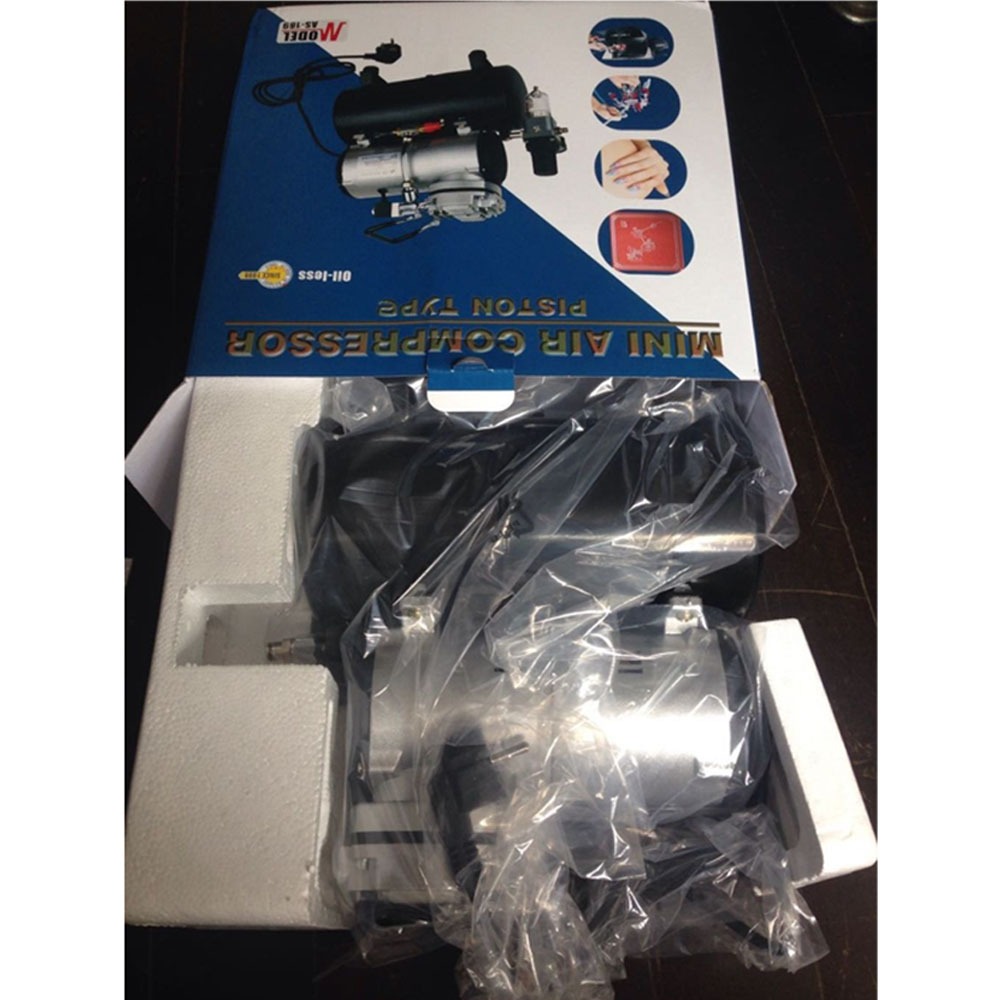

Specifications for Air Compressor
|
Type |
Single Cylinder Piston Compressor with air tank – OIL FREE |
|
Power |
1/6HP |
|
Speed |
1450-1700 rpm |
|
Air output |
20-30l/min |
|
Adjustable Pressure Range |
0 – 6 Bar |
|
Air tank |
3 litres |
Analytical Measuring Range
|
High Range |
0 ~ 5ppm |
|
Medium Range |
0 ~ 30ppm |
|
Low Range |
0 ~150ppm |

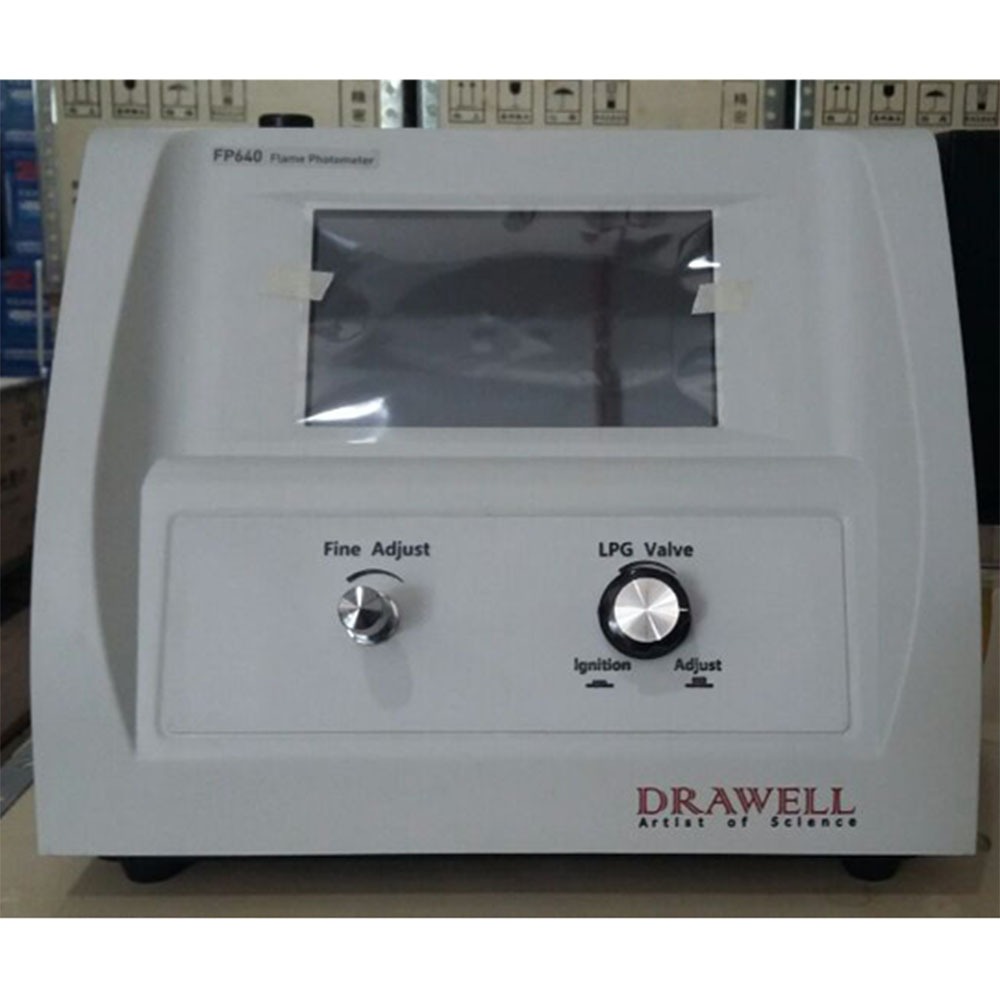

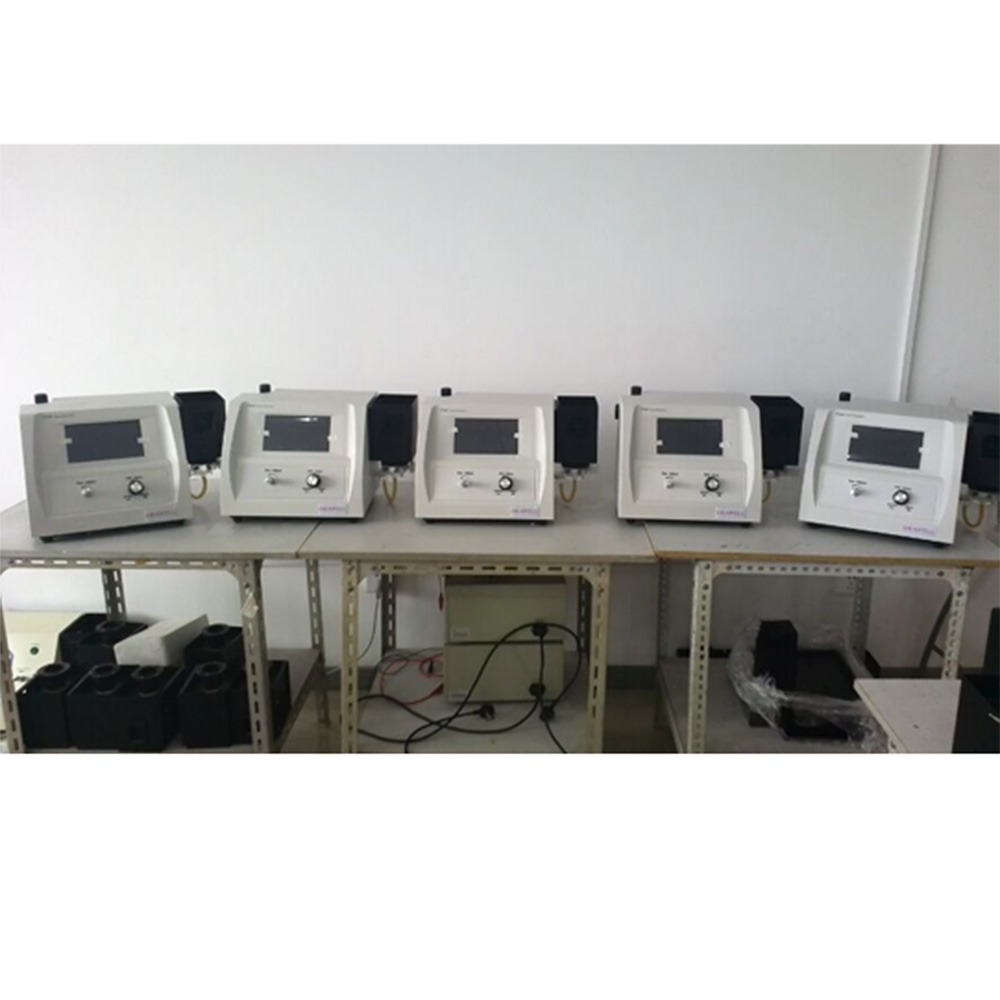

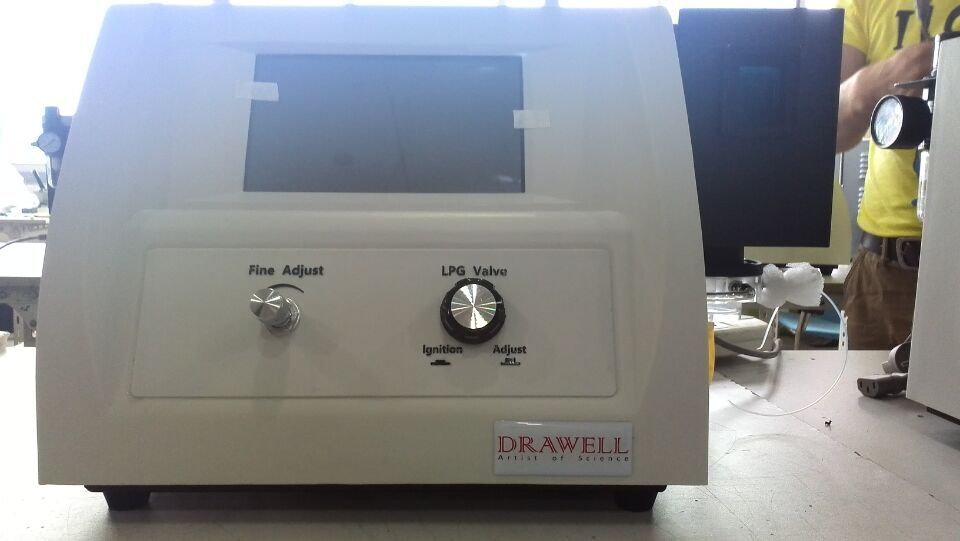

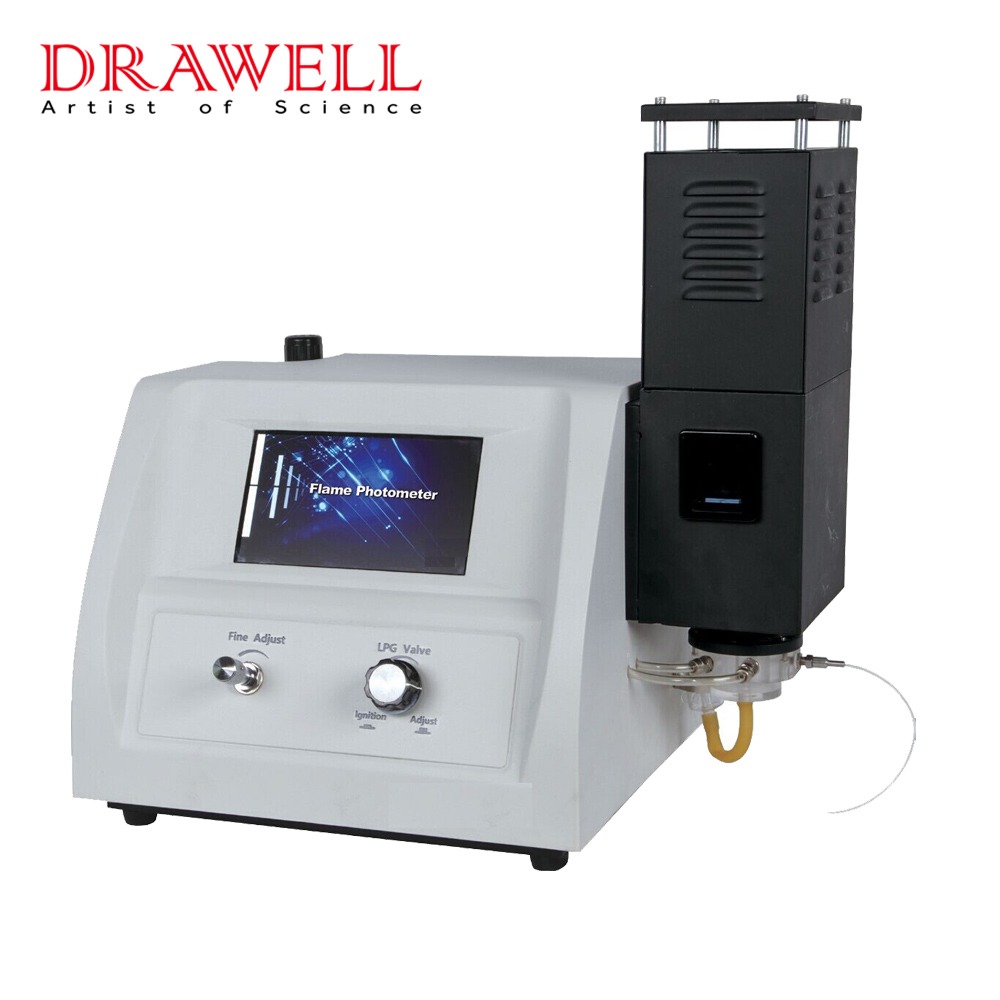

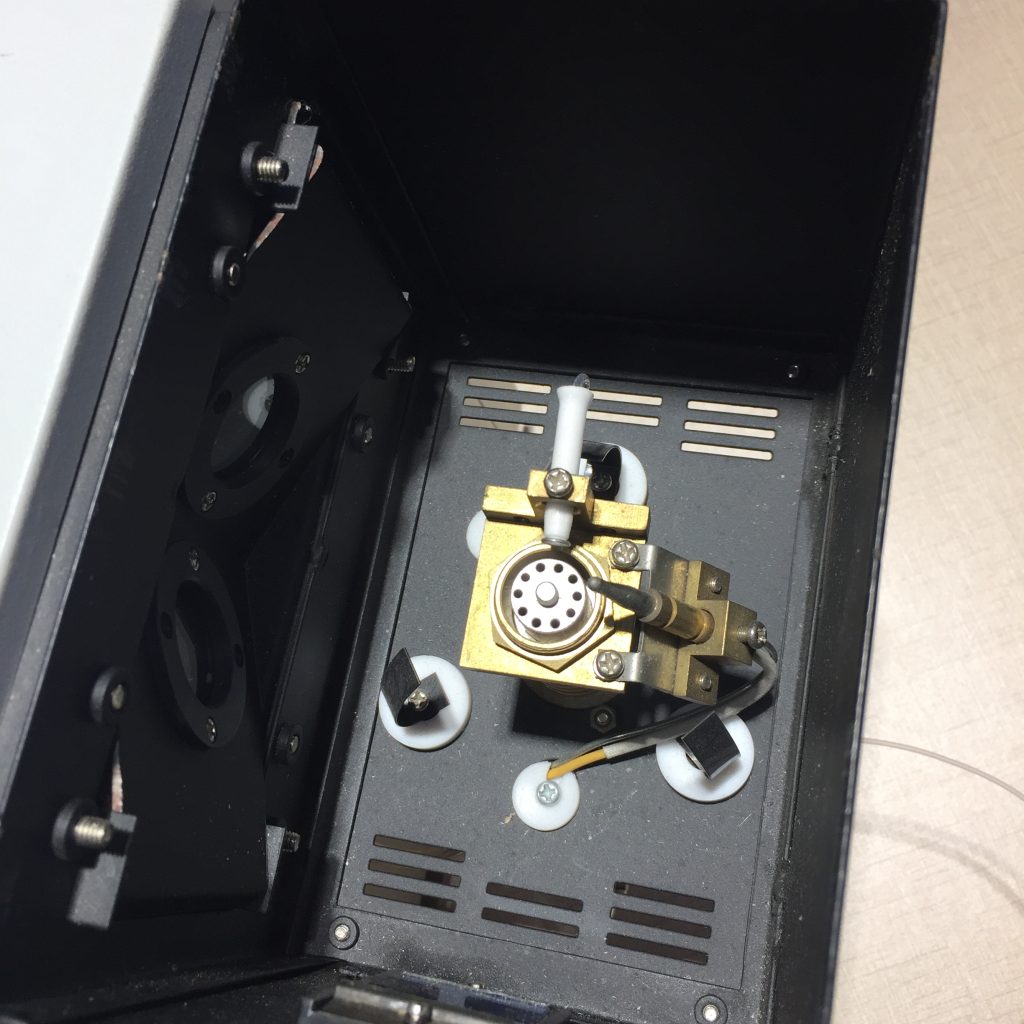

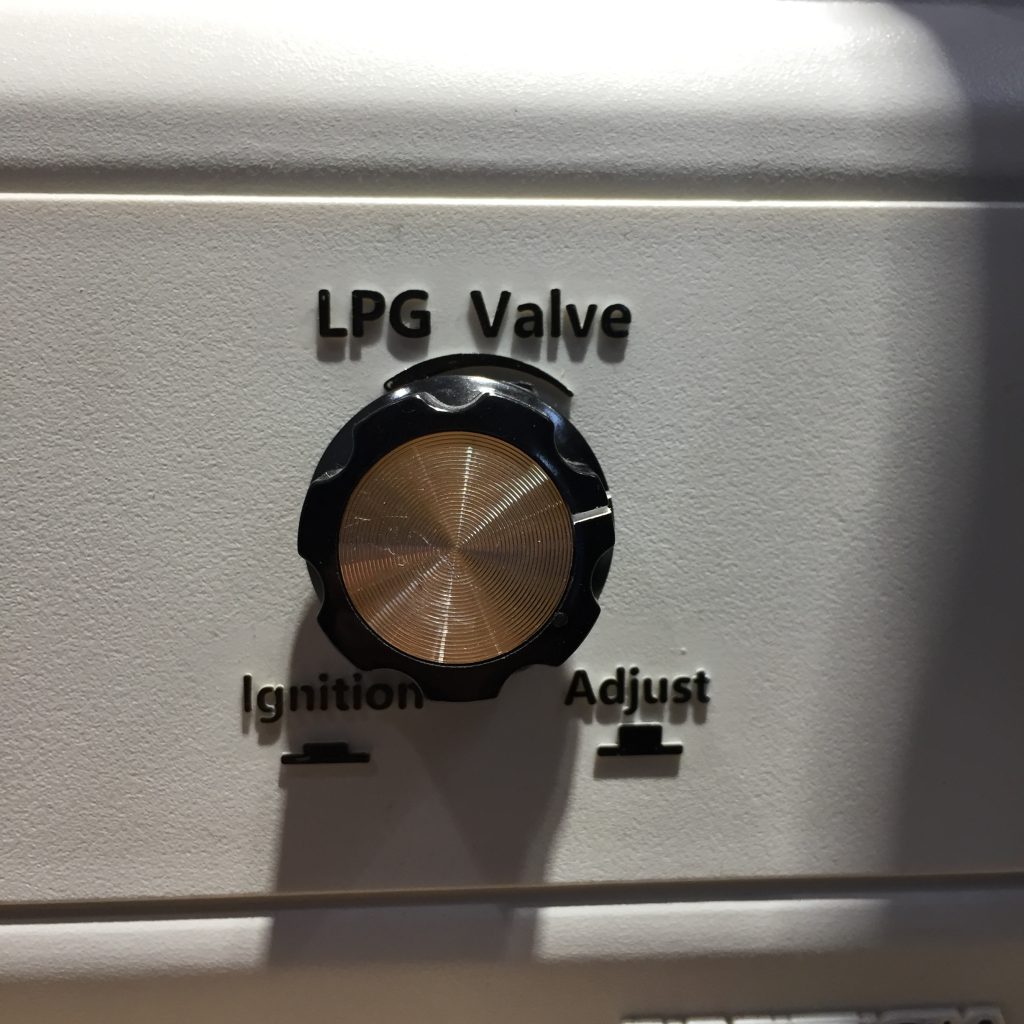

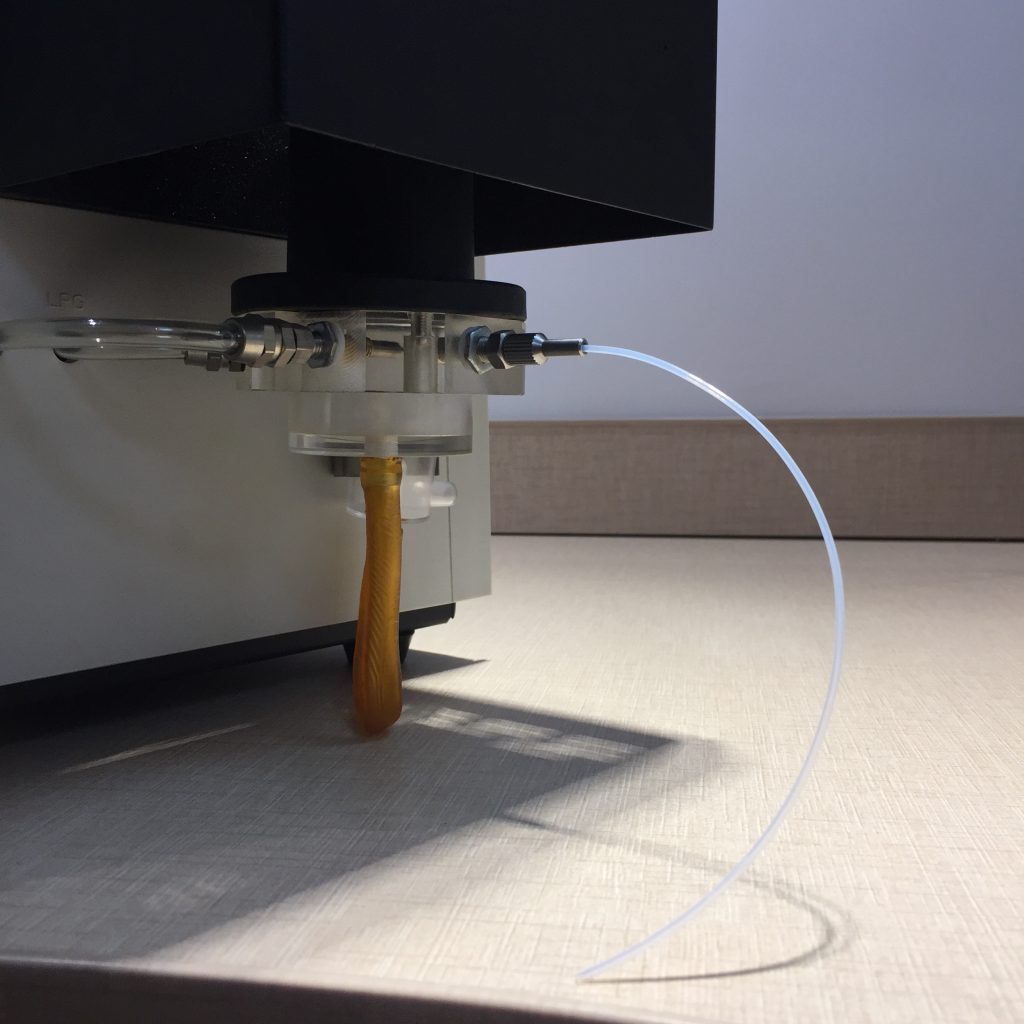

Product Display of Flame Photometer

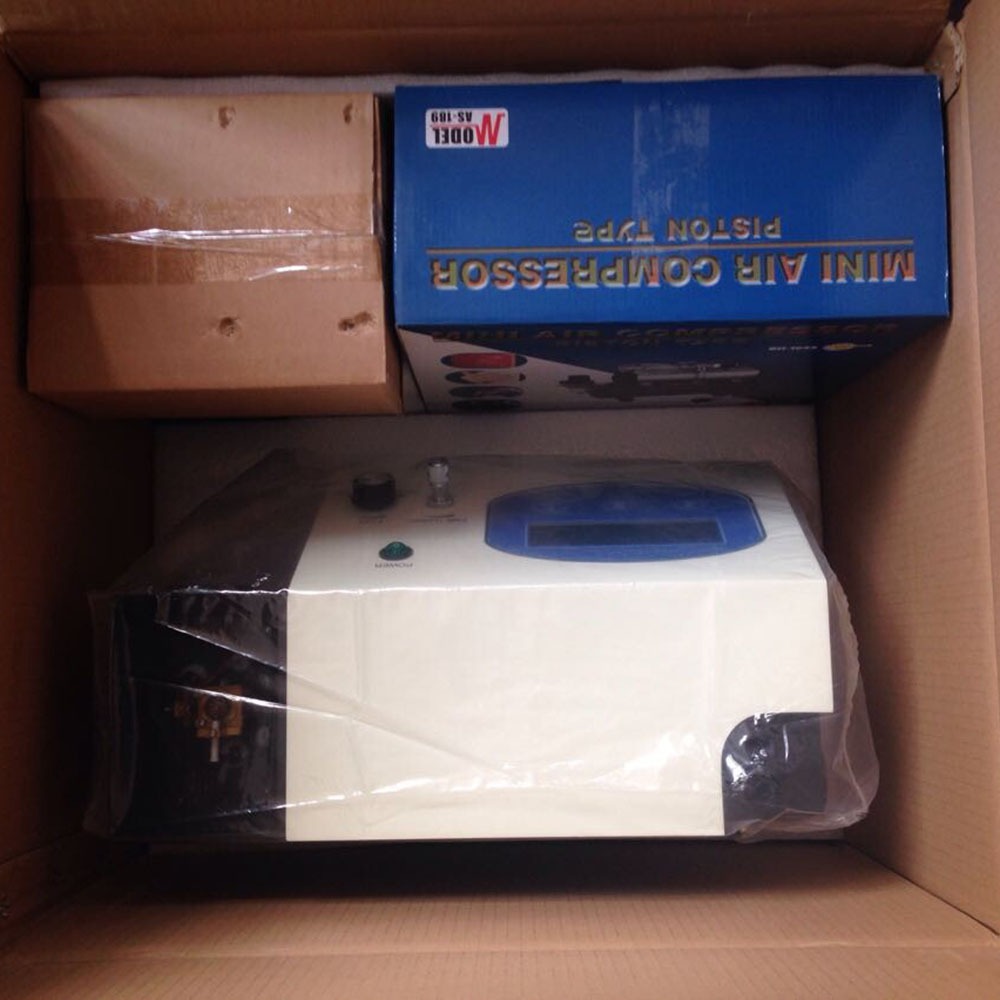

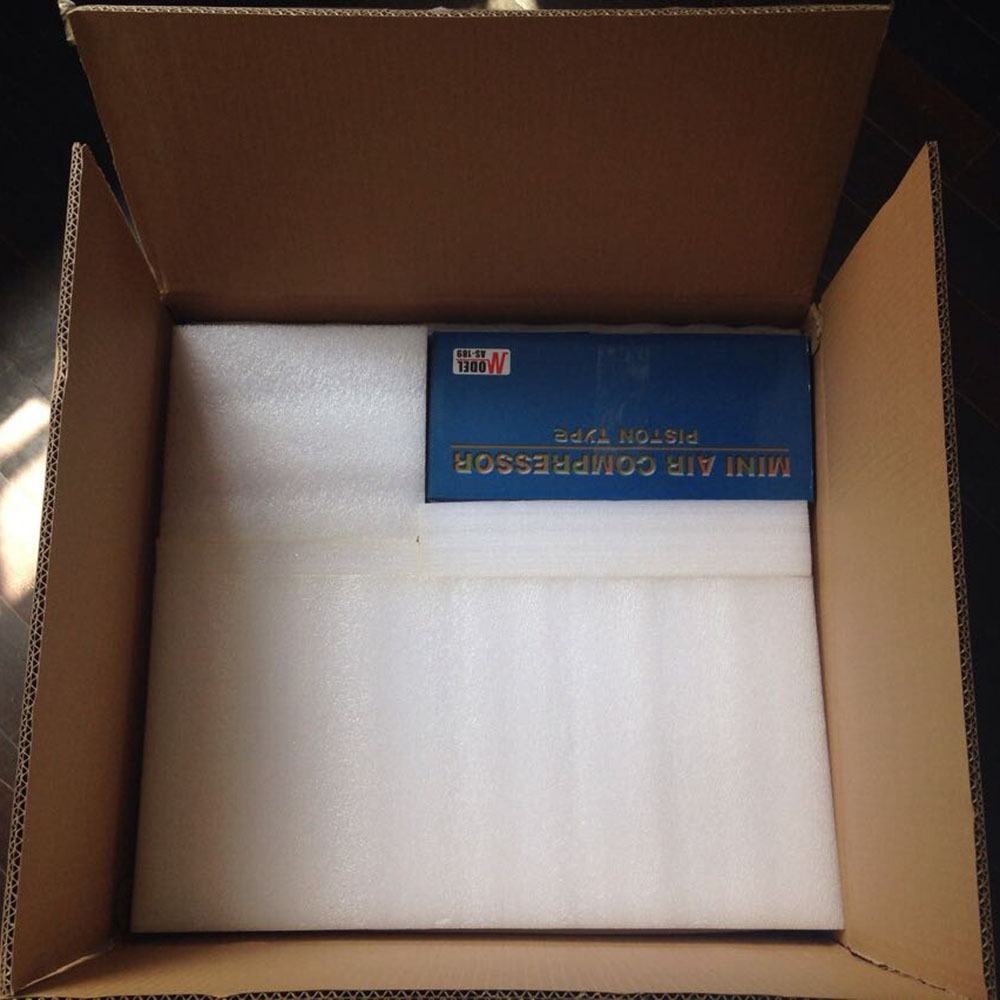

Packaging of Flame Photometer
