SC Series Constant Temperature Water (oil) Bath with Digital Control
SC series constant temperature water bath is equipped with a microprocessor intelligent control system. With a circulating pump, it can let the heated liquid flow off from the tank and thus establish a second constant-temperature field.
It is widely used in research institutes, universities, corporate quality control departments, and industrial sectors relating to petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing, and chemical analysis, etc. It can provide users with a working environment where cold or heat is controlled accordingly. As a result, the temperature is kept evenly.
Features:
- Large-screen LCD display.
- It is quick to set the temperature by touching the soft keys and is easy to operate.
- The Micro-Computer can amend the deviation of temperature measurements, temperature display is accuracy of 0.1℃.
- Fitted with an ultra-temperature alarm system.
Parameters of SC Series Constant Temperature Water Bath
| Model | Temp. Range ℃ | Temp. Stability℃ | Display Resolution (mm3) | Inner Tank Size (mm3) | Pump Flow L/min | Pump Pressure (bar) | Heating Power (KW) | Power (KW) | Top Opening Size (mm) | Drain | Dimensions (mm) |
| SC-5A | Ambient+ 8~95 | ±0. 1 | 0.1 | 260×140×140 | 0- 15 | 0.45 | 0.6 | 0.75 | 130×130 | √ | 380×318×445 |
| SC- 15 | Ambient+ 8~100 | ±0.1 | 0.1 | 300×240×200 | 0- 15 | 0.45 | 1.55 | 1.8 | 235×160 | √ | 422×348×500 |
| SC- 15A | Ambient+ 8~200 | ±0. 1 | 0.1 | 300×240×200 | Cycle | / | 1.55 | 1.8 | 235×160 | / | 482×375×490 |
| SC- 15B | Ambient+ 8~200 | ±0. 1 | 0.1 | 300×240×200 | 0- 15 | 0.45 | 1.55 | 1.8 | 235×160 | / | 482×375×490 |
| SC-20 | Ambient+ 8~100 | ±0. 1 | 0.1 | 500×300×150 | 0- 15 | 0.45 | 1.95 | 2.2 | 310×280 | √ | 620×395×445 |
| SC-20A | Ambient+ 8~200 | ±0. 1 | 0.1 | 500×300×150 | cycle | / | 1.95 | 2.2 | 310×280 | / | 642×404×440 |
| SC-20B | Ambient+ 8~200 | ±0. 1 | 0.1 | 500×300×150 | 0- 15 | 0.45 | 1.95 | 2.2 | 310×280 | / | 642×404×440 |
| SC-25 | Ambient+ 8~100 | ±0. 1 | 0.1 | 280×250×300 | 0- 15 | 0.45 | 2.1 | 2.2 | 235×160 | √ | 410×330×600 |
| SC-25A | Ambient+ 8~200 | ±0. 1 | 0.1 | 280×250×300 | cycle | / | 2.5 | 2.8 | 235×160 | / | 450×375×600 |
| SC-25B | Ambient+ 8~200 | ±0. 1 | 0.1 | 280×250×300 | 0- 15 | 0.45 | 2.5 | 2.8 | 235×160 | / | 450×375×600 |
| SC-30 | Ambient+ 8~100 | ±0. 1 | 0.1 | 400×330×230 | 0- 15 | 0.45 | 2.5 | 2.8 | 310×280 | √ | 530×450×525 |
| SC-30A | Ambient+ 8~200 | ±0. 1 | 0.1 | 400×330×230 | cycle | / | 2.5 | 2.8 | 310×280 | / | 605×425×490 |
| SC-30B | Ambient+ 8~90 | ±0. 1 | 0.1 | Ф300×300 | 6 | 0.15 | 2.5 | 2.8 | Ф150 | √ | Ф306×585 |
| SC-30C | Ambient+ 8~200 | ±0. 1 | 0.1 | 400×330×230 | 0- 15 | 0.45 | 2.5 | 2.8 | 310×280 | / | 605×425×490 |

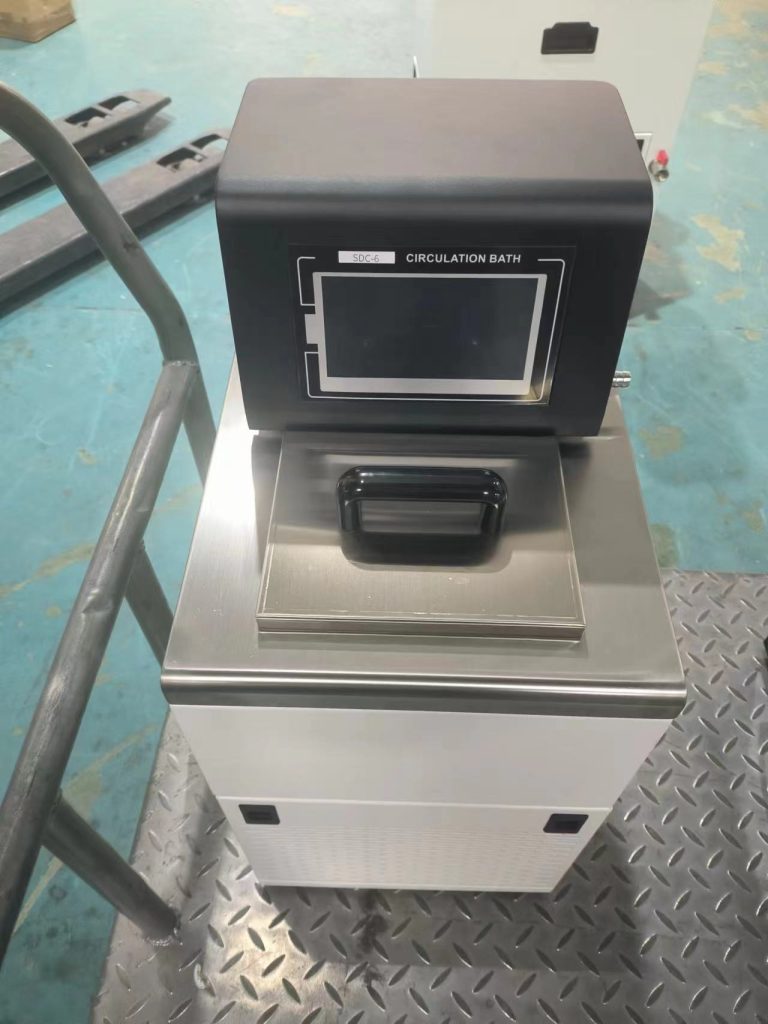

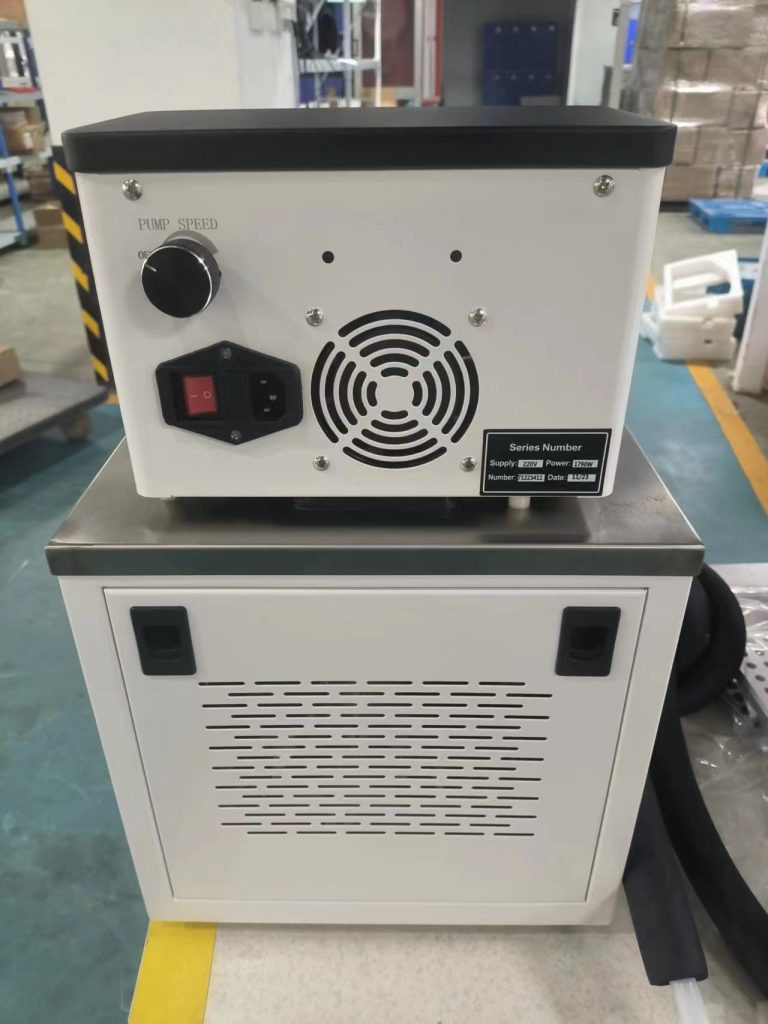

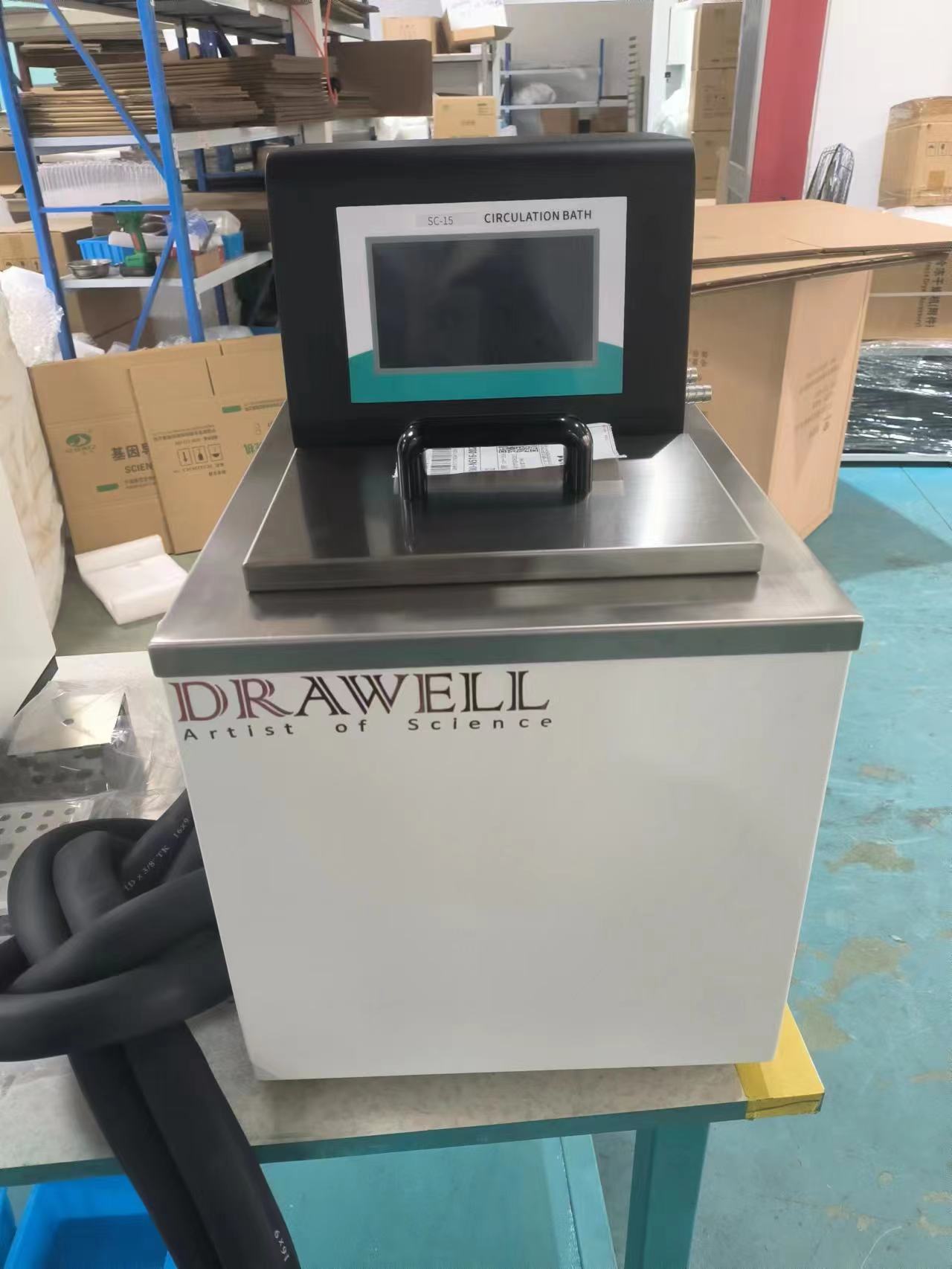

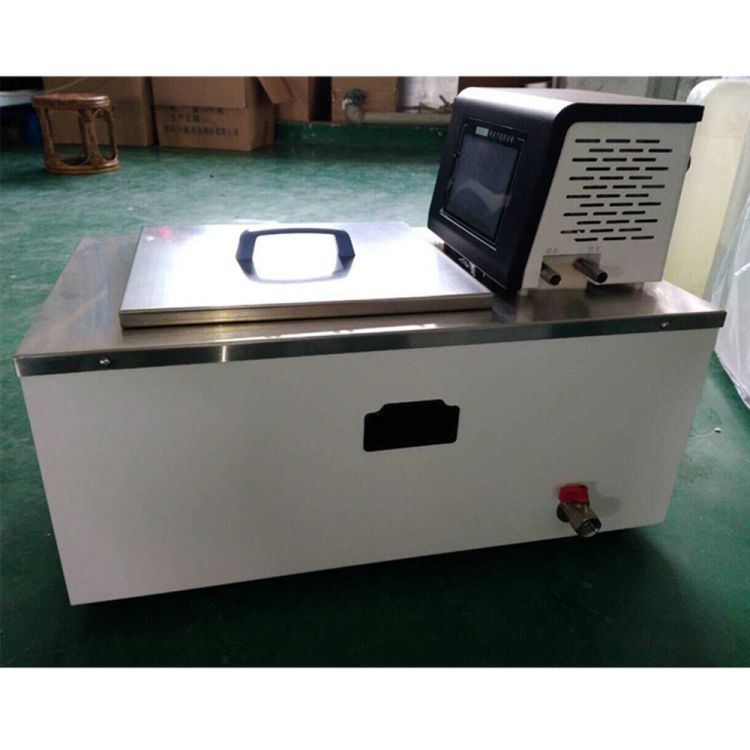

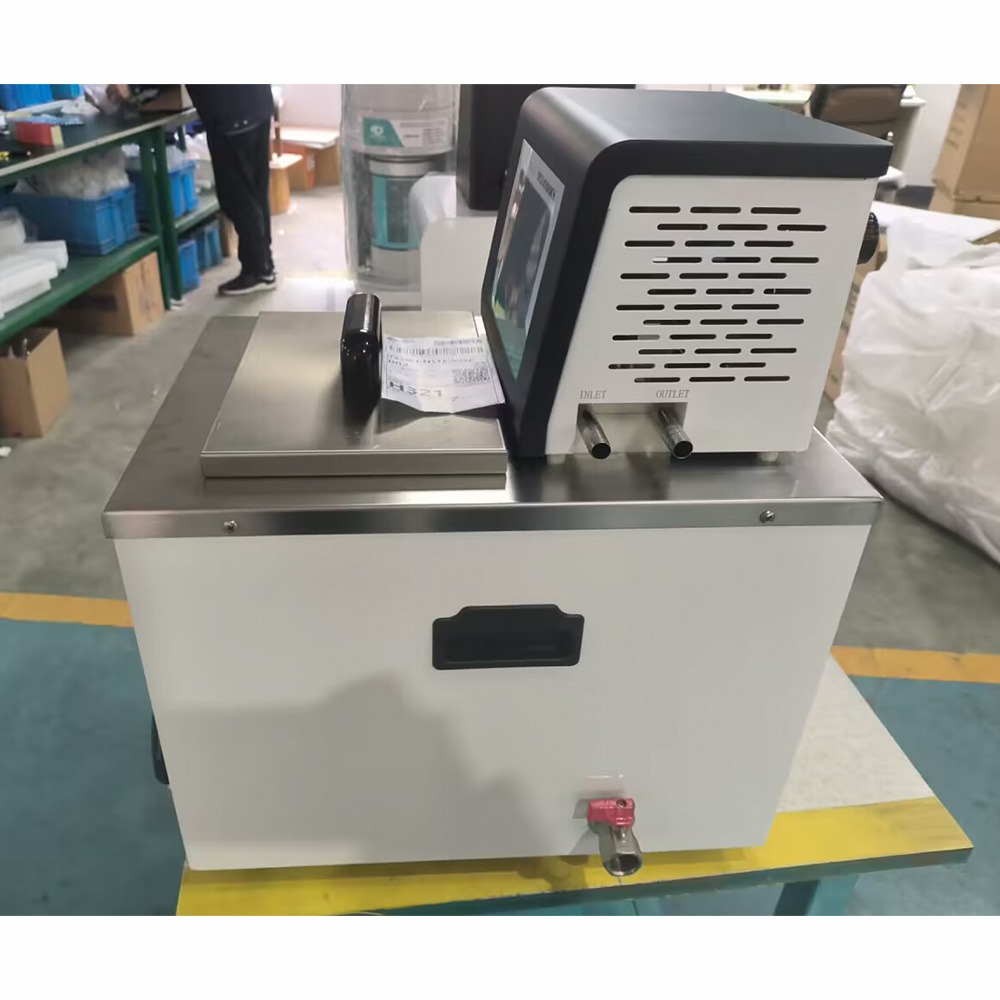

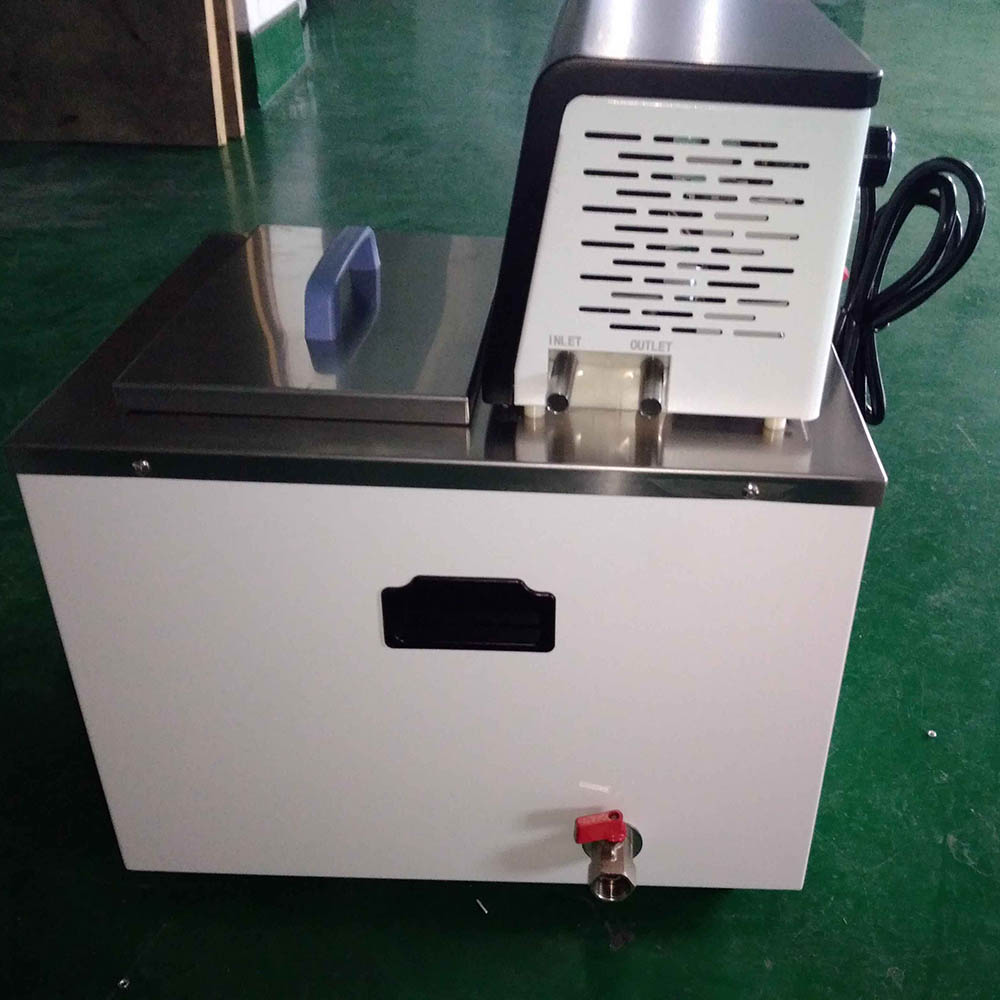

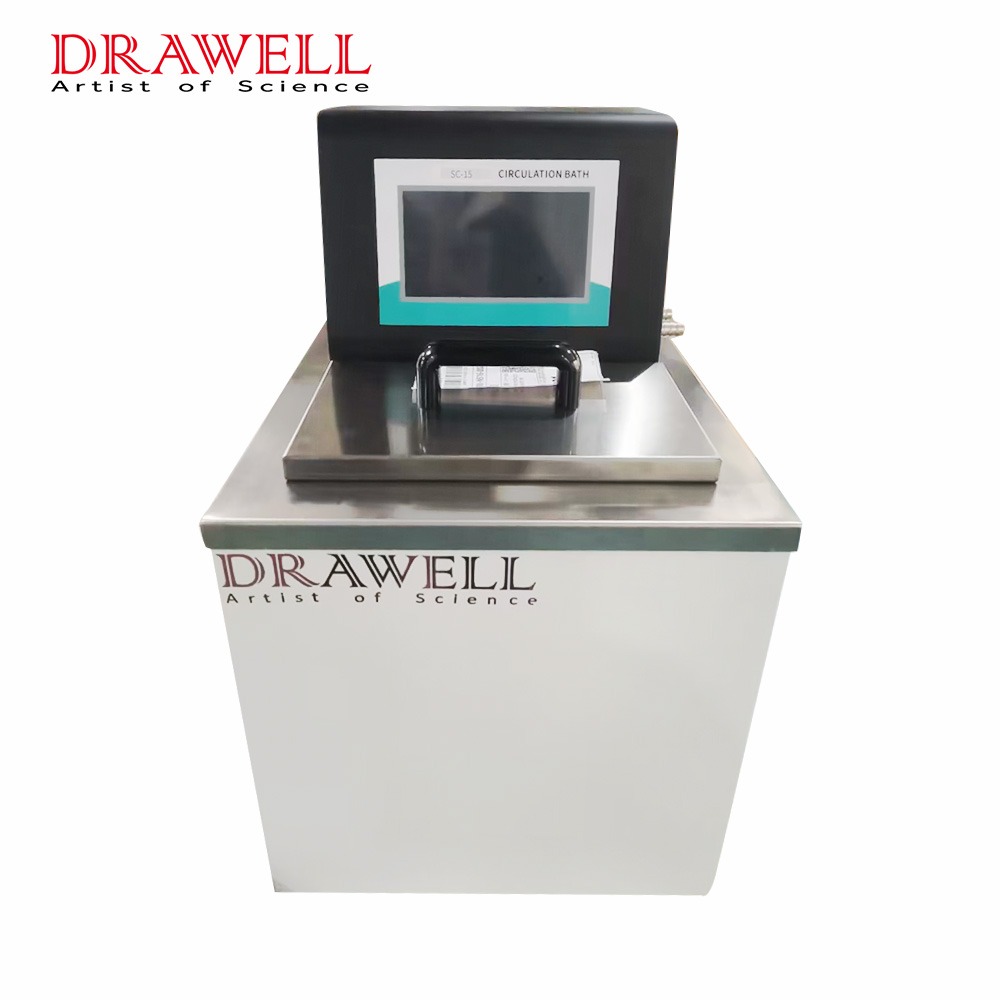

SC Series Constant Temperature Water Bath Display
