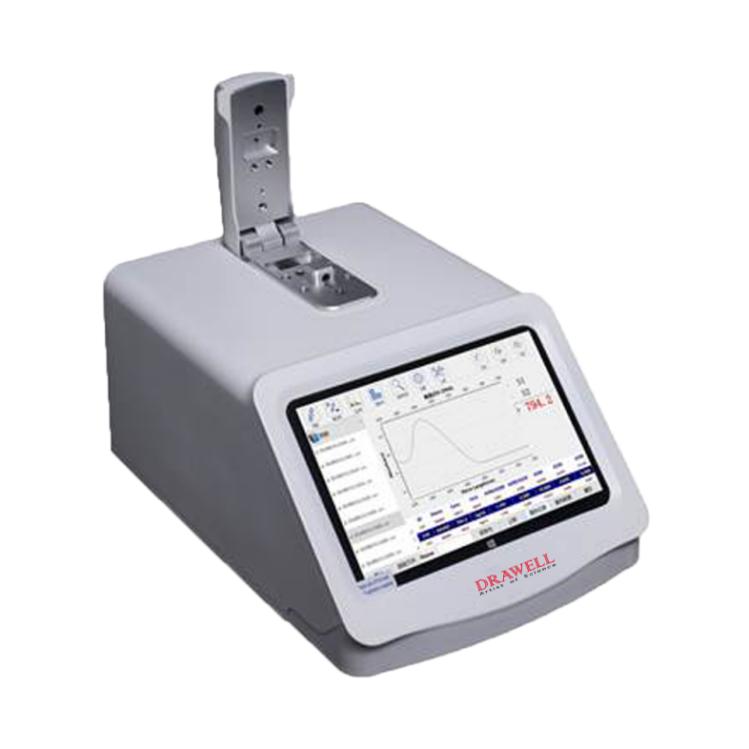

K5800/K5800C K5800H (RT-42°C) / K5800T (10-42°C) Nano Spectrophotometer (with cuvette)
The K5800/K5800C nano spectrophotometer is a new full-wavelength ultra-micro spectrophotometer, which can be used to detect nucleic acids, proteins, cell solutions, microarray samples, and conventional full-wavelength scanning. At the same time, there are a dark room and a detection platform, and you can choose two measurement modes: cuvette and detection platform.
Characteristics of K5800/K5800C/K5800H/K5800T Nano Spectrophotometer
- The optical fiber is built-in to avoid the optical fiber breakage caused by the external force collision and the measurement results in confusion
- The measurement results are saved in spreadsheet mode
- Less sample usage
- No need for a cuvette
- No need to heat, test at any time when starting up
- Fast detection speed

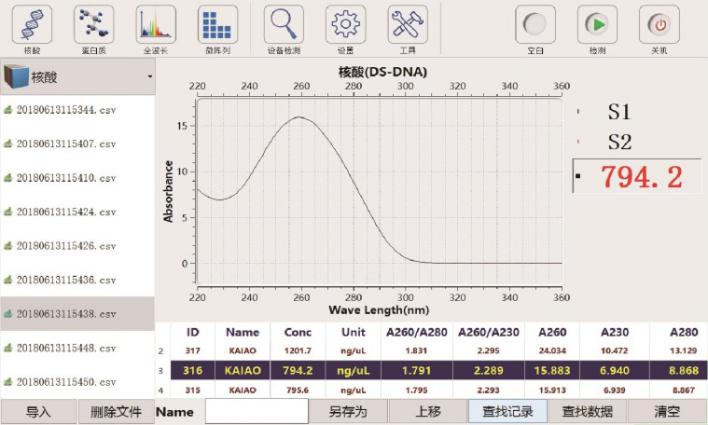

- Direct display of concentration value, absorbance value, the ratio of 260/230 and 260/280
- The sample does not need to be diluted, and the detectable concentration range is 50 times that of a conventional ultraviolet-visible spectrophotometer
- Simple operation and easy to use
Parameters of K5800 Series
- Light source: long-life pulsed xenon flash lamp
- Detector: 2048-element linear silicide CCD array
- wavelength range: 190 ~ 850nm
- wavelength accuracy: ± 1nm
- Wavelength resolution: 2 nm (FWHM at Hg 546 nm)
- Repeatability: <± 0.5nm
- Lightpath: 1mm, 0.05mm (optical path automatic conversion)
- nucleic acid measurement range: 0.4 ~ 15000ng / μl (DS-DNA)
- Protein measurement range: 0.01 ~ 400mg / ml (BSA)
- sample volume requirements: 0.3 ~ 2 μL
- Absorbance Accuracy: 1% (0.76 absorbance at 350 nm)
- Absorbance range: 0.002 – 300 (equivalent to 10mm path length)
- cuvette mixing system: own mixing system so that the sample concentration is more uniform
- Sample measurement time: less than 5 seconds
- Sample base material: stainless steel and quartz fiber
- cuvette specifications (optical path): 1mm, 2mm, 5mm, 10mm
- The minimum sample volume of the cuvette: 20 μl
- The minimum height of the cuvette sample is 5mm
- Cuvette Type: A cuvette with a traceable cuvette specification
- Cuvette Anechoic Chamber: A standard cuvette darkroom with a wide variety of cuvettes
- mixing system: comes with a mixing system
- temperature control: 4 ~ 42 ℃ thermostat adjustable temperature error <± 0.5 ℃
- through the USB port or network dump data
- without preheating, boot at any time detection
- with a liquid column to determine the abnormal function
- with automatic measurement function, simplifying the operation process
- permanent preservation of data, at any time to export or delete data
- built-in wifi, remote operation can be achieved
- The test result can be printed wirelessly
- built-in detection system; comes with a high-definition display, the touch screen operation
K5800C Cuvette Parameters
- Cuvette specifications (optical path): 1mm, 2mm, 5mm, 10mm
- Minimum sample volume of the cuvette: 20 μl
- The minimum height of the cuvette sample is 5mm
- Cuvette Type: A cuvette with a traceable cuvette specification
- Cuvette Anechoic Chamber: A standard cuvette darkroom with a wide variety of cuvettes
- Mixing system: comes with a mixing system
- Temperature control: 4 ~ 42 ℃ thermostat adjustable temperature error <± 0.5 ℃
Nano Spectrophotometer K5800H (RT-42°C)
- Heating temperature control
Nano Spectrophotometer K5800T (10-42°C)
- Heating and cooling temperature control
