ICP700T Inductively Coupled Plasma Emission Spectrometer
Inductively coupled plasma emission spectrometer, as a professional laboratory analysis instrument, has many characteristics such as testing multiple elements, being able to detect up to 70 elements, fast testing speed, and low detection limit. Mainly used in rare earth industry, silicon industry, petrochemical industry, ore analysis, metal smelting, geological research, drug safety, experimental research, environmental testing and other fields.
ICP700T Inductively Coupled Plasma Emission Spectrometer is a trace element composition analysis and testing instrument with high sensitivity photomultiplier tubes as detectors.It tests nearly 70 elements and has solid-state RF generator and automatic tuning matching technology;Equipped with a dedicated circulating cooling water system, argon gas conduit, cooling water pipe, and high sensitivity sampling system (high-efficiency atomizer with patented dual barrel atomization chamber).
Features of Inductively Coupled Plasma Emission Spectrometer ICP700T
- Multiple testing elements: More than 70 elements can be measured, including all metallic elements and the vast majority of non-metallic elements.
- Simultaneous testing of multiple elements: Test all elements at once and produce results at once.
- Fast analysis speed: Approximately 5 elements per minute, expandable up to 10 elements per minute.
- Low detection limit: The detection limit of most elements in solution samples can reach the ppb level.
- Wide linear range: Up to 5-6 orders of magnitude, allowing for simultaneous testing of high and low content.
- Less chemical interference: There is basically no chemical interference, realtime background deduction, and the test results are more accurate.
Application Areas of Inductively Coupled Plasma Emission Spectrometer ICP700T
ICP-AES is mainly used for qualitative and quantitative analysis of inorganic elements. ICP-AES, as a large and precise inorganic analytical instrument, is widely used in rare earth analysis, precious metal analysis, alloy materials, electronic products, medicine and health, metallurgy, geology, petroleum, and chemical industry, commodity inspection, and environmental protection departments.
Specifications of Inductively Coupled Plasma Emission Spectrometer ICP700T
| Main technical parameters | |
| Observation system | desktop, plasma vertical observation system |
| Precision | 2ppm mixed multi-element solution, RSD≤ 1.5% |
| Stability | 2 hours RSD < 2.0% |
| The detection limit meets the A-level requirements of the national standard | |
| Flame adjustment | The plasma flame can be adjusted in three dimensions: front, back, up, down, left, and right (controlled by a computer |
| Injection system | |
| Torch tube | integrated integrated integrated quartz torch tube |
| Atomizer | Efficient concentric nebulizer, injection speed 2ml/min |
| Atomization chamber | Patented extended atomization chamber, optional with swirl atomization chamber and hydrofuoric acid resistant atomization chamber. |
| Split sampling system for real-time observation of sample injection status | |
| The mass flow controller controls the argon flow rate, which is continuously adjustable and provides real-time numerical feedback | |
| Peristaltic pump fully automatic five channel sixteen roller shaft, continuously adjustable speed | |
| RF generator and plasma | |
| Frequency | 27.12MHz Frequency stability ≤ 0.0 1% |
| Type | Solid state high-frequency RF generator, fast water cooling, automatic tuning |
| Power | 500W~1600W, continuously adjustable, with an adjustment accuracy of< l W, power stability: < 0.01% |
| Using 99.99% argon gas | |
| Equipped with reverse power protection function for RF power supply | |
| The ignition of plasma is fully automatic control | |
| Optical system | |
| Optical stability | designed on the same platform as the injection system |
| System type | Cheney Turner type (C-T type), focal length 1000mm |
| Constant temperature of the optical system, temperature stability | ±O.1°C |
| Minimum step distance of scanning motor | < 0.0004nm |
| Resolution ratio(Mn257.610nm) | <0.005nm(4320line grating);<0.008nm(3600line grating);<0.015nm(2400line grating); |
| Wavelength range | 190-460nm(4320line grating);190-500nm(3600line grating);190-800nm(2400line grating); |
| The best testing conditions for different elements can be set | |

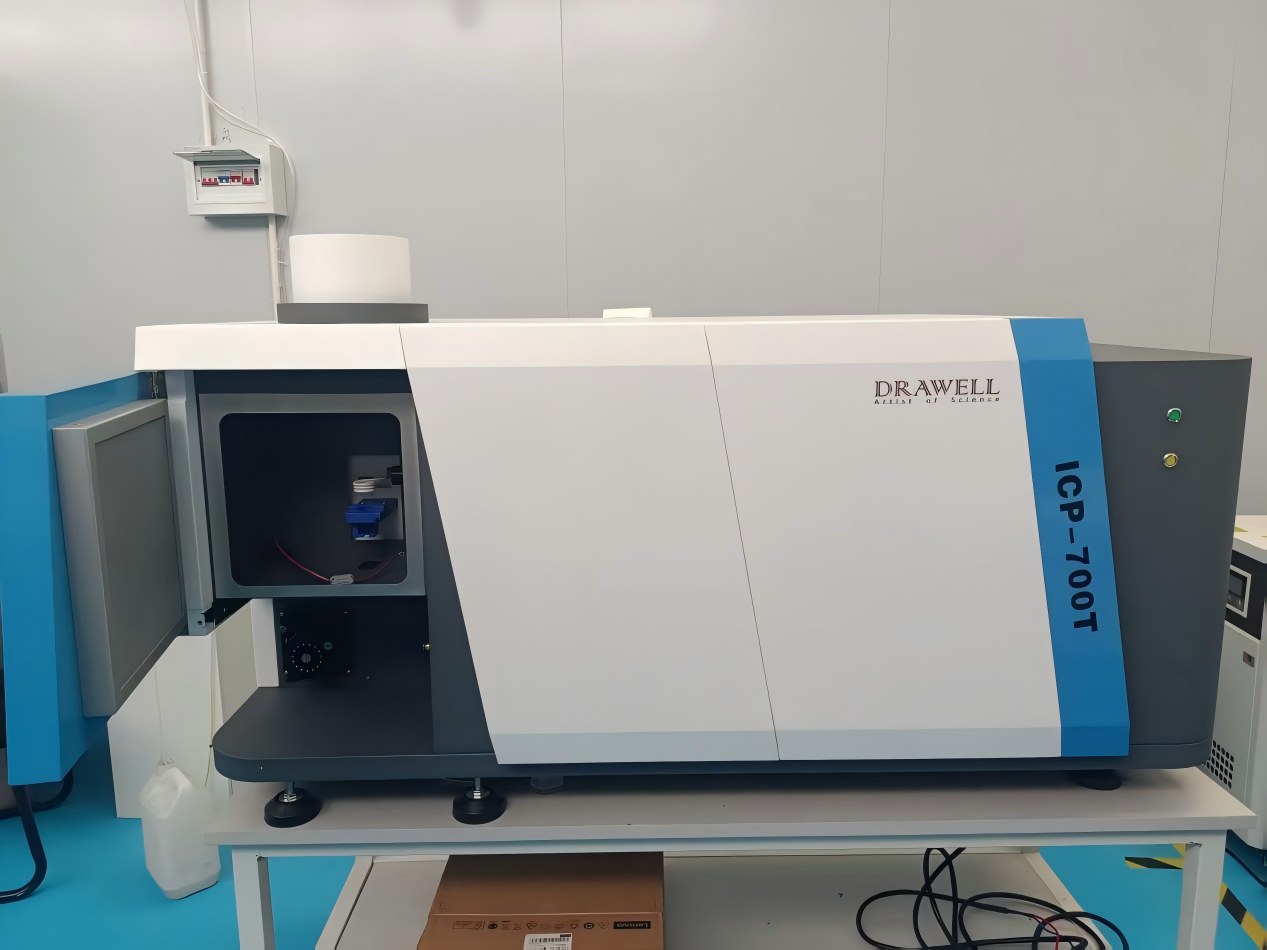

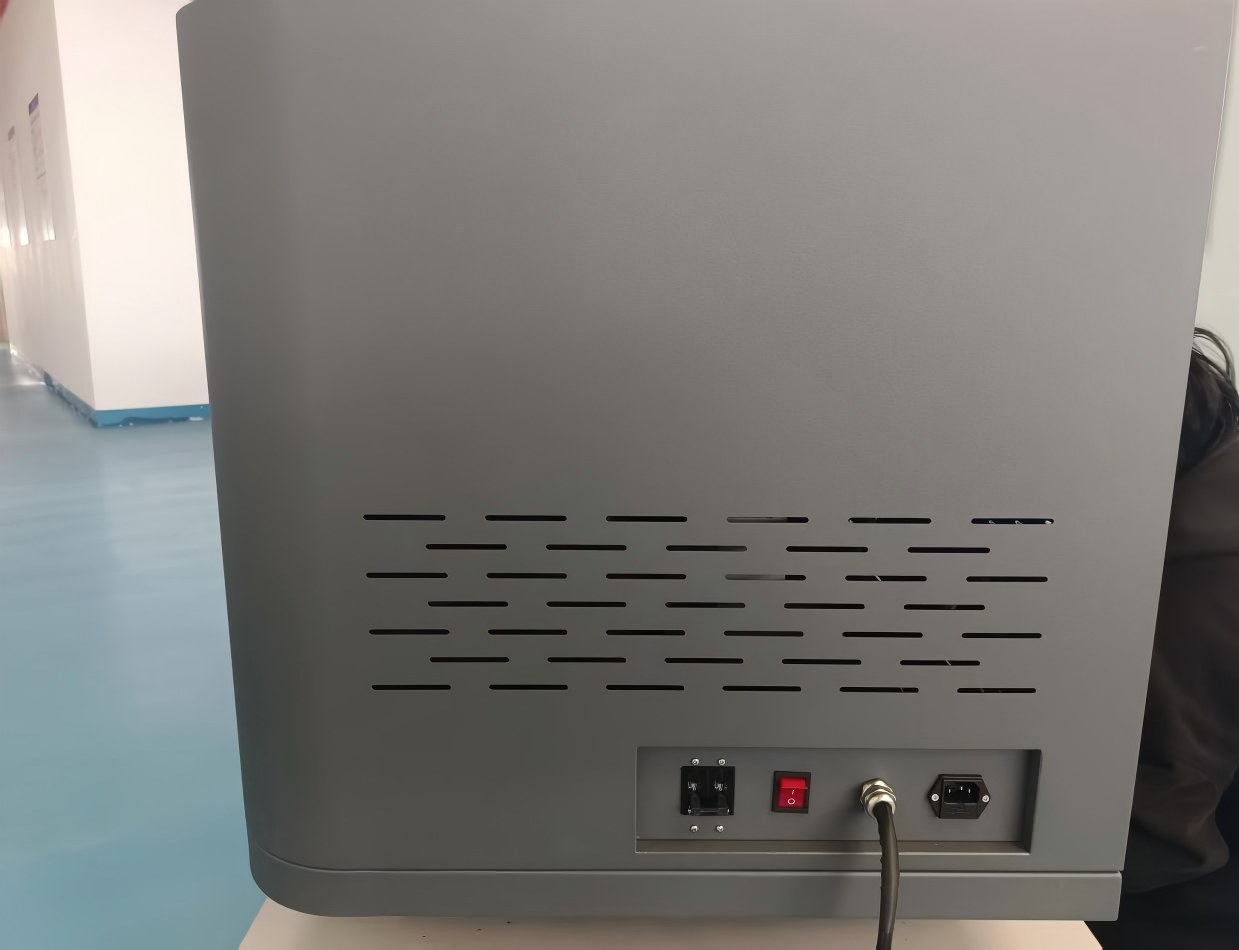

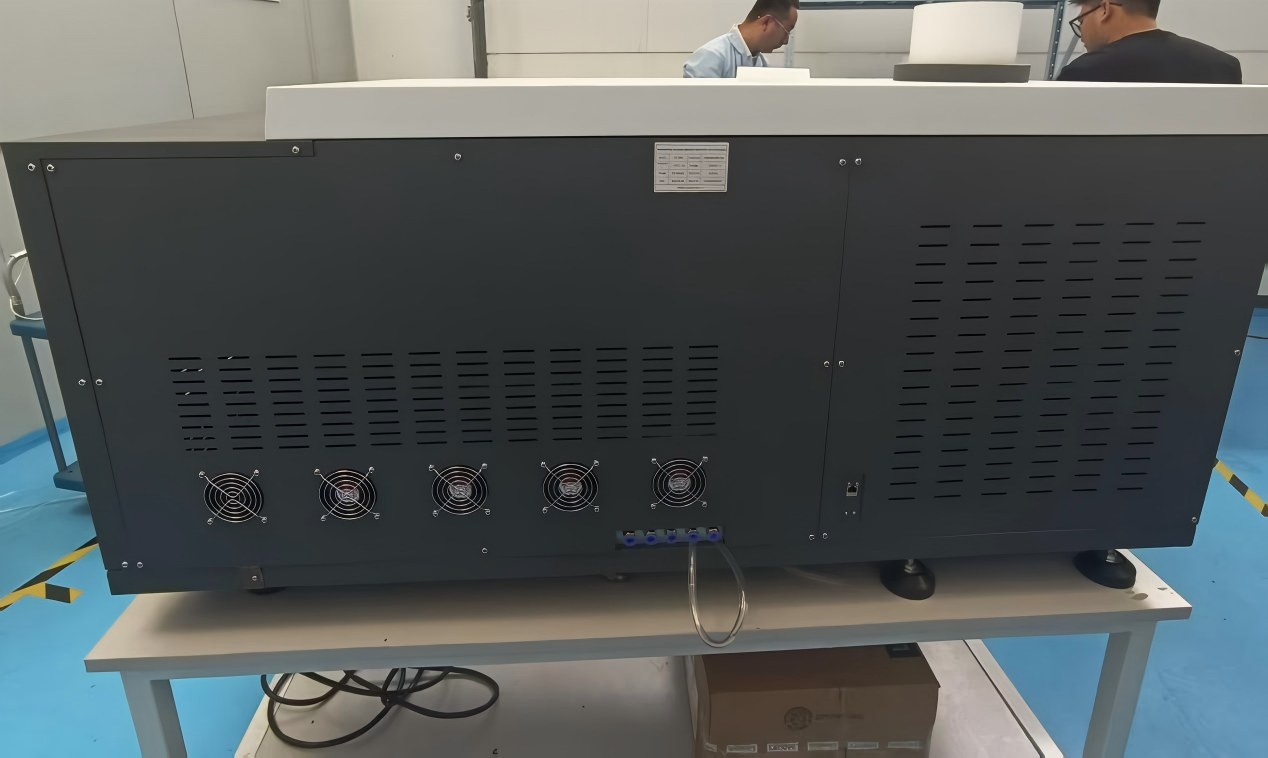

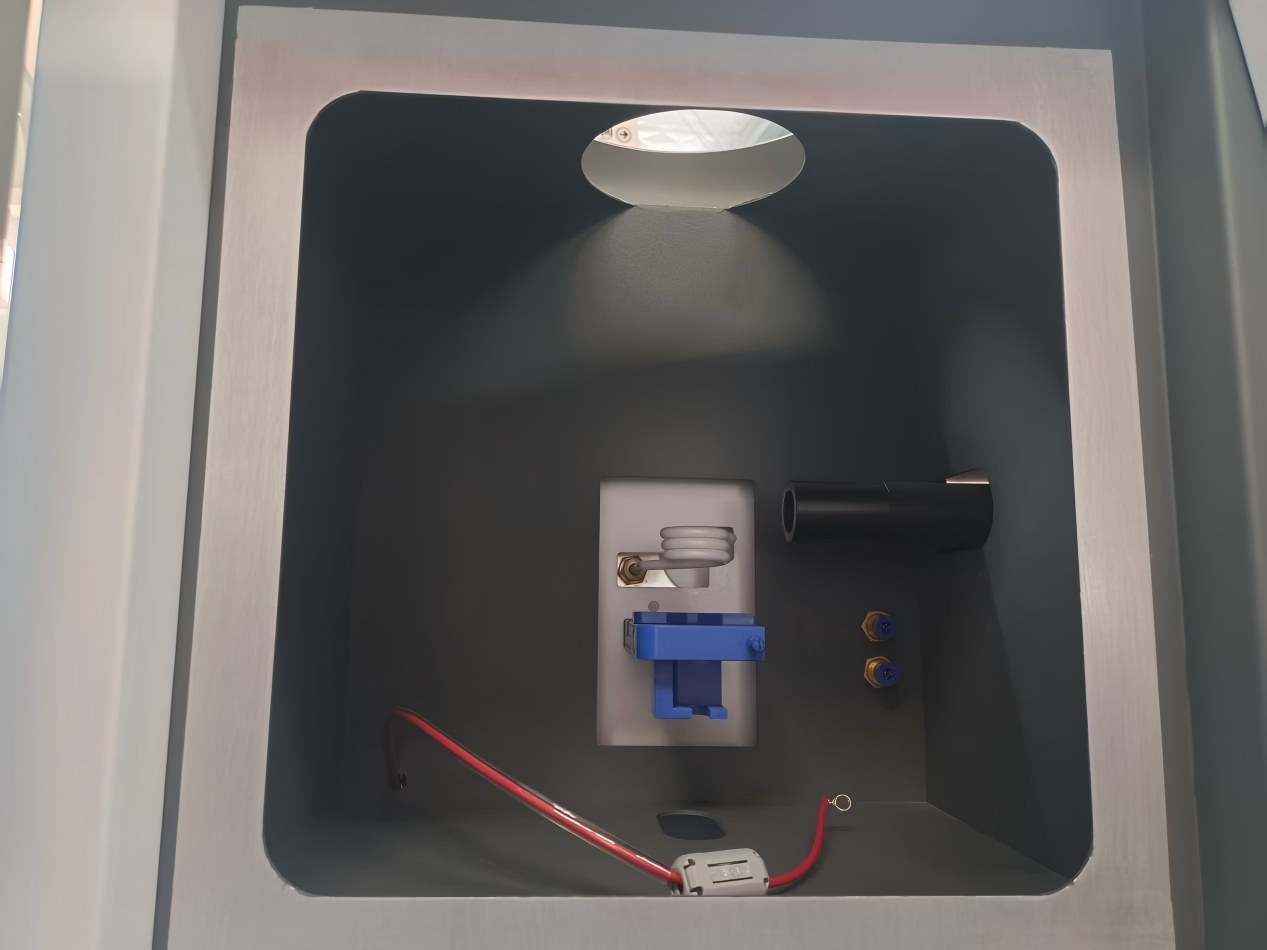

ICP700T Display
Why Choose Us?
Quality Control System:
- Every part should be put in a temperature and humidity test chamber for 72 hours before assembling.
- Every machine needs to do aging testing for another 72 before shipping.
- Every machine is with a unique serial number. The engineer will be responsible for the quality of the machine he made.
The whole machine is guaranteed for 12 months; provides technical service support for life.
During the warranty period, if the product has quality problems under normal use, after verification by Party B, it will provide free maintenance services and will not charge any fees to Party A; if the quality problem is not the instrument itself, it is due to user’s human factors. Party B needs to Charge the cost of parts repair or replacement.
Response time: Within 24 hours. Any problem, our professional team can check for you remotely.
