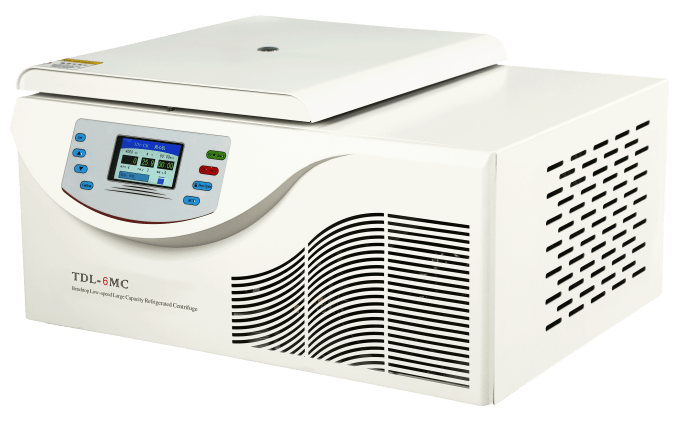

High & Low Speed Refrigerated Centrifuge TDL-5/6M/MC

Features of High & Low-Speed Refrigerated Centrifuge  TDL-5/6M/MC

  1. Microprocessor control, speed control by frequency-conversion, and CFC compressor.
  2. Maintenance free Frequency-conversion motor without carbon dust pollution.
  3. Safety Interlock system that prevents opening the centrifuge lid during running.
  4. 10 programs can be stored, and quickly recall the last used program.
  5. Imbalance sensor, Over speed and over temperature cut off
  6. Easy operation, LCD touch screen, compressor control.
  7. With Emergency lid lock release, in case of power off.
TD6-intelligent Touch LCD Display (1)
Intelligent Type
TDL-5-6M-MC-LCD Display
LCD Display

Technical Parameters of TDL-5/6M/MC Centrifuge

Model

TDL-5M

TDL-5MC

TDL-6M

TDL-6MC

Speed  Accuracy

±50r/min

Max Speed

5500r/min

6000r/min

Timer Range

0~99min

Max RCF

5120xg

5470xg

Temp Range

20℃~40℃

Display

Digital/LCD display

Max Capacity

6×500ml

Noise

≤60dB(A)

Power Supply

AC220v&110V 50Hz 18A

Weight

100kg

Dimension

656x835x45mm

Rotor of TDL-5/6M/MC Centrifuge

Note: Rotors can customize made

图片2 7No.1 AR

Max Speed:6000r/min

Capacity:12×15/10ml

Max RCF:5470xg

图片3 4No.2 SR

Max Speed:4000r/min

Capacity:6×300ml

Max RCF:4390xg

图片4 3No.3 SR

Max Speed:4000r/min

Capacity:6×250ml

Max RCF:3600xg

图片5 1No.4 SR

Max Speed:4000r/min

Capacity:32×10ml

Max RCF:2810xg

图片6No.5 SR

Max Speed:4000r/min

Capacity:148×5/7ml

Max RCF:4100xg

wps6No.6 SR

Max Speed:4000r/min

Capacity:4×500ml

Max RCF:3600xg

图片7No.7 SR

Max Speed:4000r/min

Capacity: 32×15ml

Max RCF:2810xg

图片8No.8 SR

Max Speed:4000r/min

Capacity:4×100ml

Max RCF:2810xg

图片9No.9 SR

Max Speed:4000r/min

Capacity:8×50ml

Max RCF:2810xg

图片10No.10 SR

Max Speed:4000r/min

Capacity:72×5ml

Max RCF:2800xg

图片11No.11 SR

Max Speed:4000r/min

Capacity:48×10/7ml

Max RCF:2800x

图片12No.12 MTP

Max Speed:3000r/min

Capacity:2x2x96holes

Max RCF:2300xg
