Options of HBDV-2 Digital Viscometer
- Extreme low viscometer adapter (with one spindle L0)
- Small sample adapter (with spindle 21, 27, 28 and 29 each)
- Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
- Spindle R1
- Special software that can complete the function in collecting the data automatically
- DV program control download software
- Specially used printer
The main technical indicators of HBDV-2 Digital Viscometer
| Measuring Range（mPa·s） | 320～320,000,000 |
| Rotating Speed (RPM) | 0.1 ～ 200 （Stepless Gear） |

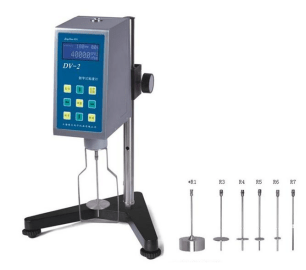

| Number of Spindles | Spindles (Code R2,R3,R4,R5,R6,R7) are equipped with the product |
| Accuracy | ±1% full scale range in use |
| Repeatability | ±0.5% full scale range in use |
| Readability | 1.when viscosity is lower than 10.0 cp : 0.01 2.when viscosity is lower than 10000 cp : 0.1 3.when viscosity is equal or higher than 10000 cp : 1 |
| Power | Power adapter ( input: 100-240V，50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value. |
Apparatus to be equipped of HBDV-2 Digital Viscometer
| digital viscosity meter | 1 pce | ascending and falling rack | 1 set |
| standard spindle | 1 set | power adapter | 1 pce |
| protective frame of spindle | 1 pce | spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
| RTD temperature probe | 1 pce |
