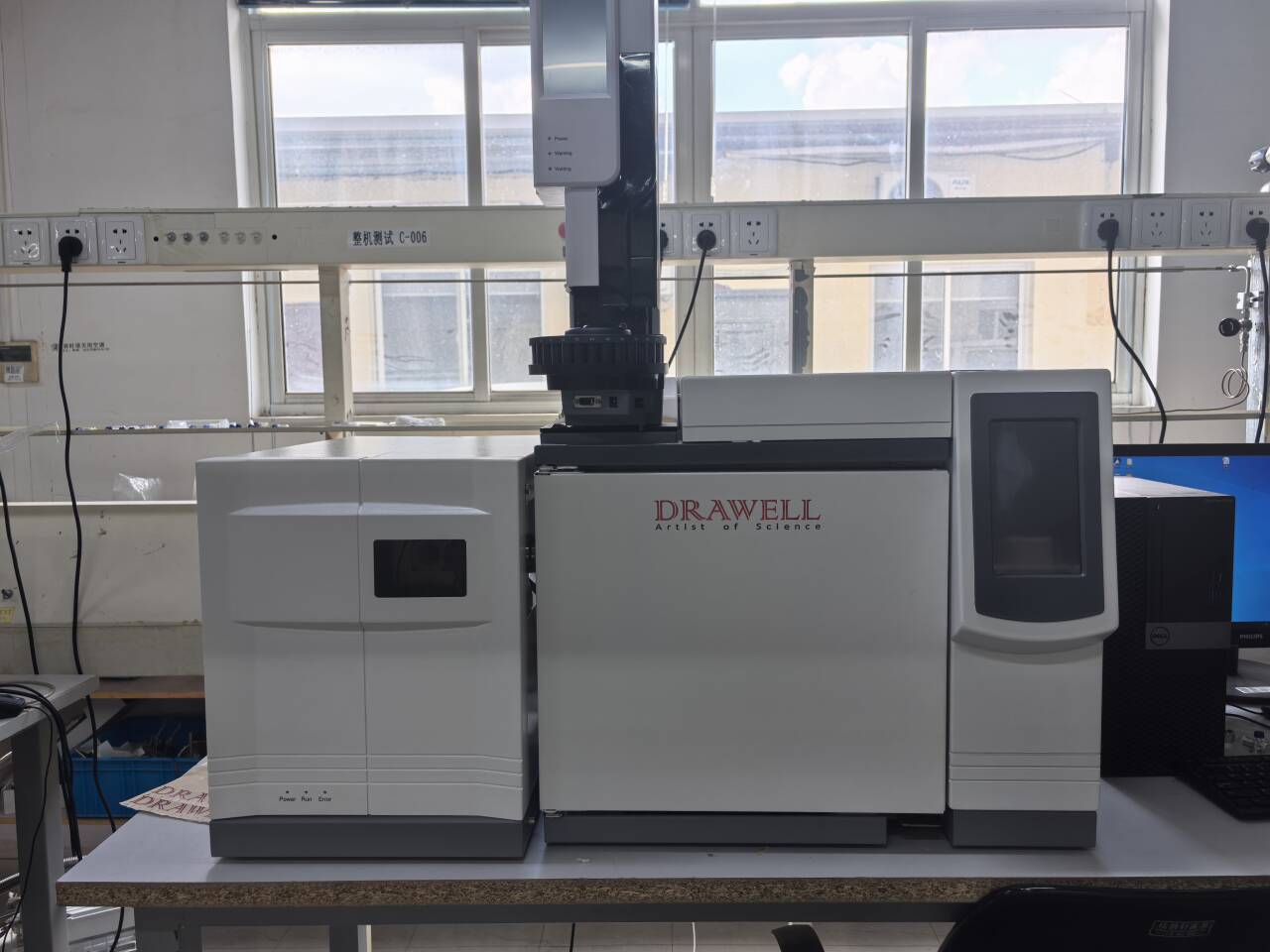

GC1290/MS8100 Gas Chromatography Mass Spectrometer

  • MSQ8100 Quadrupole mass spectrometer host

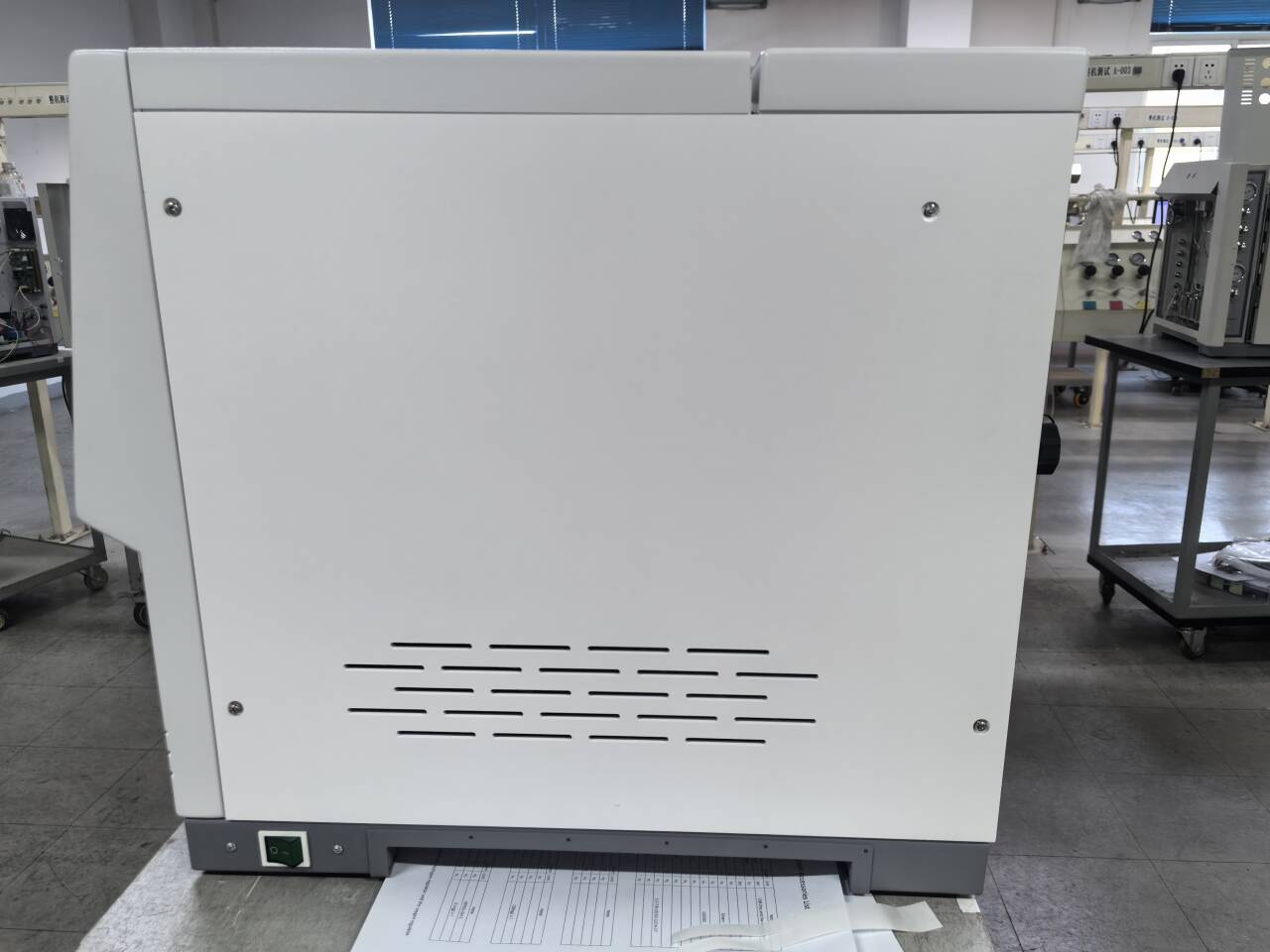

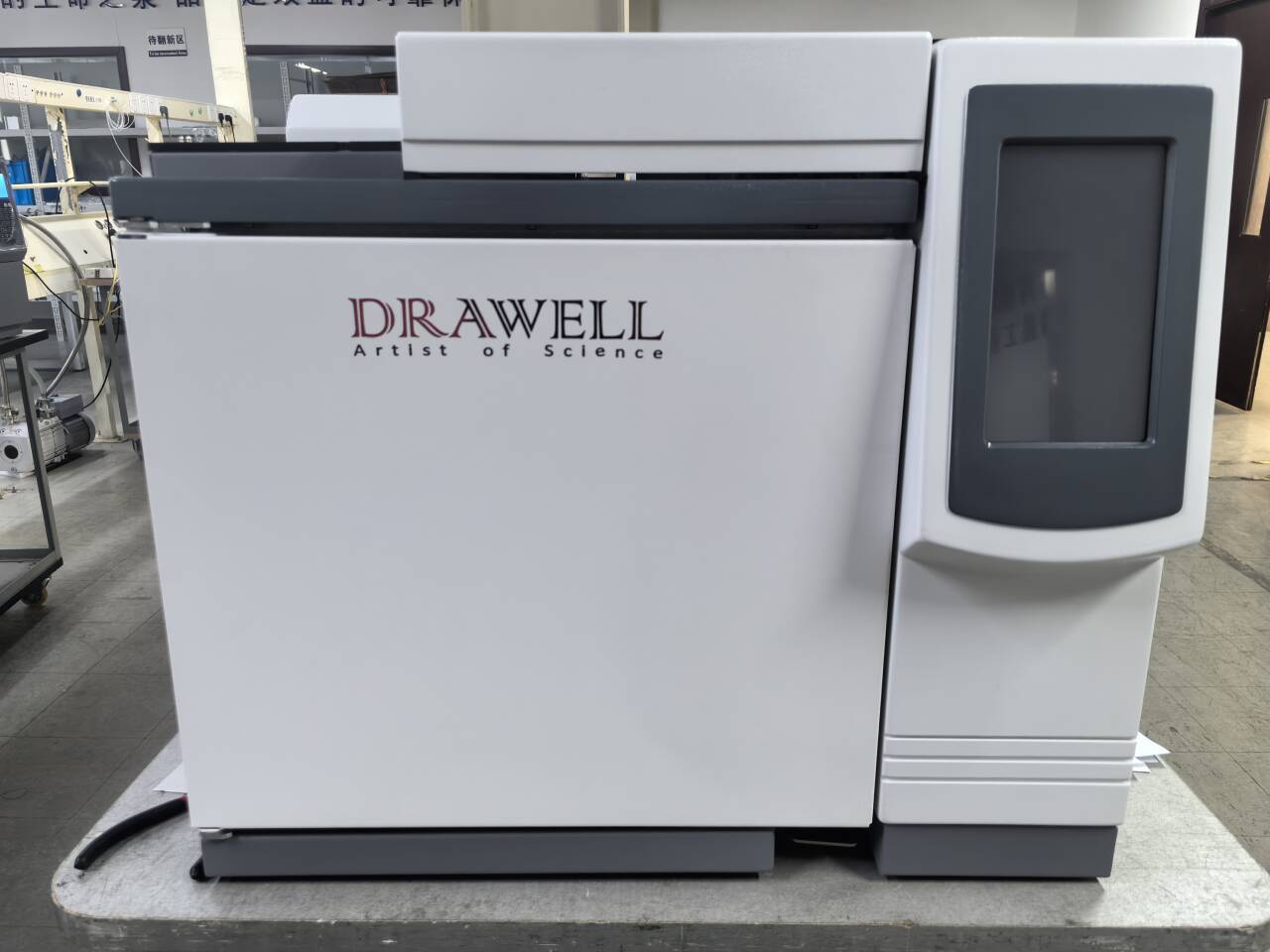

  • GC1290 gas chromatography host
  • Customized Clarity software
  • Column(DB-5MS, 0.25MM, 30M, 0.25um)
  • Large capacity integrated trap, Used for helium
GC1290/MS8100 Brochure

Features of GC1290/MS8100 Gas Chromatography-Mass Spectrometer

  • Inlet vacuum
  • Ion Source: EI (electron ionization) standard
  • High performance GC1290 gas chromatography, with EPC system and 7 inch touch screen display
  • Clarity software, comply with GLP/FDA-21 CFR Part11
GC1290 MS8100 Ion source
Ion source

Structure of GC1290/MS8100 Gas Chromatography-Mass Spectrometer

  • Sample Introduction
  • Ion Source(EI Standard)
  • Quadruple Mass Analyzer
  • Detector(Electro Multiplier)
GC1290 MS8100 Quadrupole
Quadrupole

Specifications of GC1290/MS8100 Gas Chromatography-Mass Spectrometer

Data processing system
Data acquisition and processing platformmulti-core parallel processing technology and high-speed electronic circuit design
Softwarecustomized Clarity software
SIM/ScanSIM/Scan Data synchronization acquisition
SIM/Scan Data synchronization acquisitionguarantees full mass range scanning during full analysis time without significant loss of sensitivity
 NIST library optional
Software fully supports GLP/FDA-21CFR Part11 electronic signature certification, data validity security, system certification tool (IQ/OQ) and system suitability test (SST) requirements
Mass spectrometer
Ion sourcehigh transmission efficiency Focusing inert EI source
Ion source temperature50-350 °C
Electronic energy0-300eV
Filament emission current0-300µA
Mass filterquadrupole
Mass range1.5-1100 u
Mass shaft stabilitybetter than ±0.10 u/48 hours
DetectorTriple off-axis detector with long-life electron multiplier
Full scan mode (SCAN) maximum time unlimited
The foreline pump uses mechanical pump of not less than 130L/min, and the high vacuum uses turbomolecular pump of not less than 70L/s
Gas chromatography
Column oven control system
Temperature range5 ° C ~ 420 ° C (increment 0.1 ° C)
Temperature control accuracy of the ovenbetter than ±0.05 °C (measured at 200 °C)
Program temperature control20 ramps / 21 platform program temperature, software operation ramp is unlimited
Maximum rate of program increase80 ° C / min (increment 0.1 ° C)
Cooling speed350℃~100℃≤3min
Carrier gas control system
Outlet connection methodatmospheric pressure and vacuum mode
Number of carrier gas pressure blocks3 segments
Carrier gas flow program number3 segments
Flow range0～1000mL/min(He, H2)，(Factory default:He) 0～200mL/min(N2,Ar), (Factory default: N2)
Tail blow0～100mL/min
Reference gas0～150mL/min
Pressure range0～100psi
Set resolution0.01psi
Maximum split ratio5000:1

Accessories optional

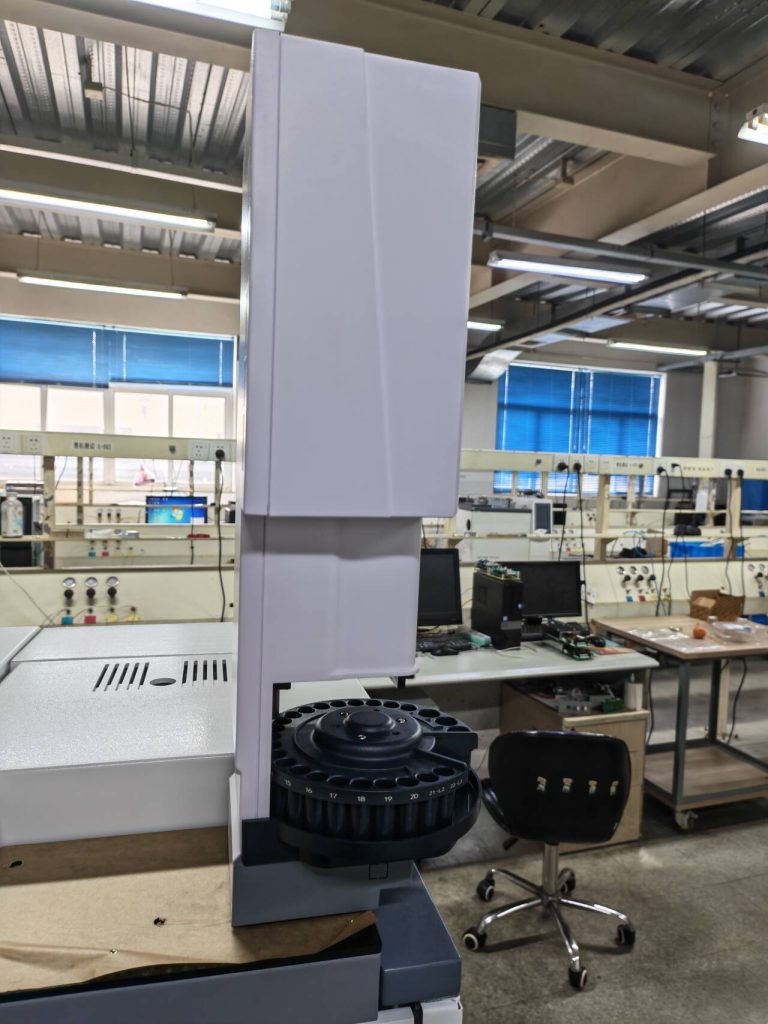

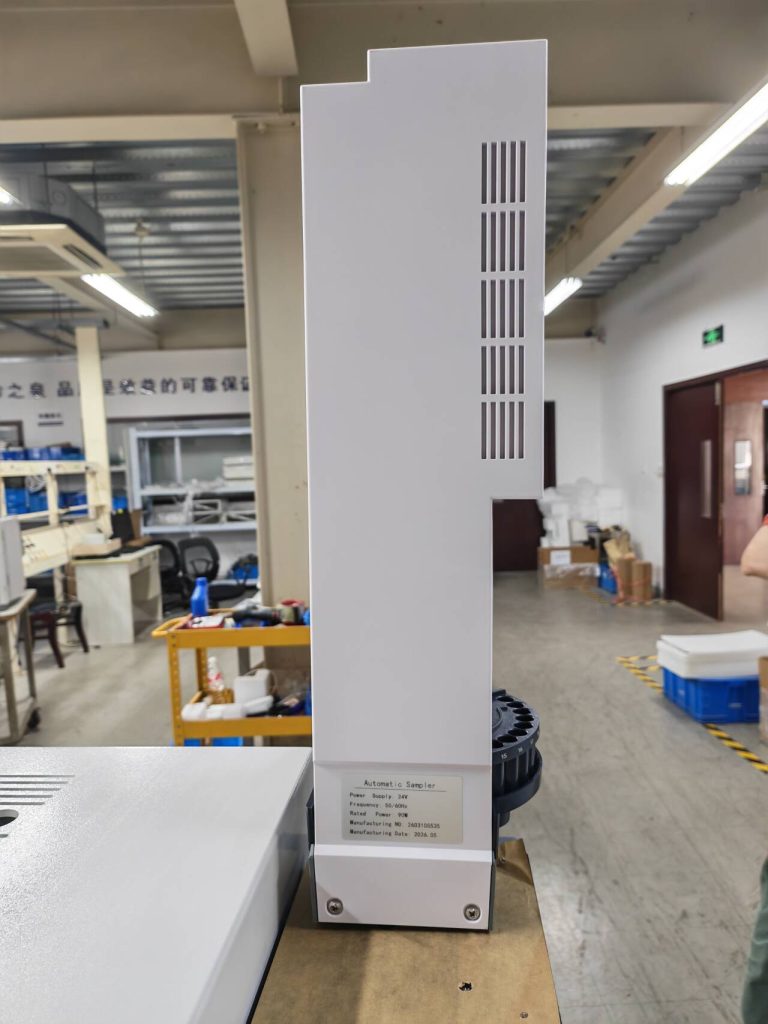

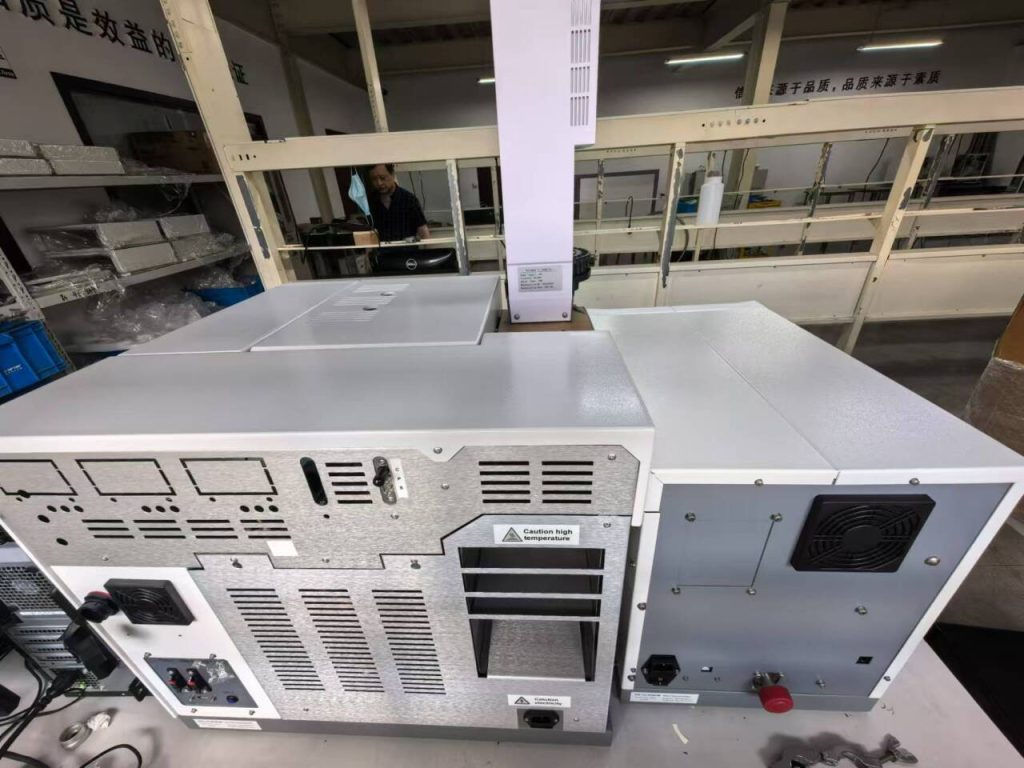

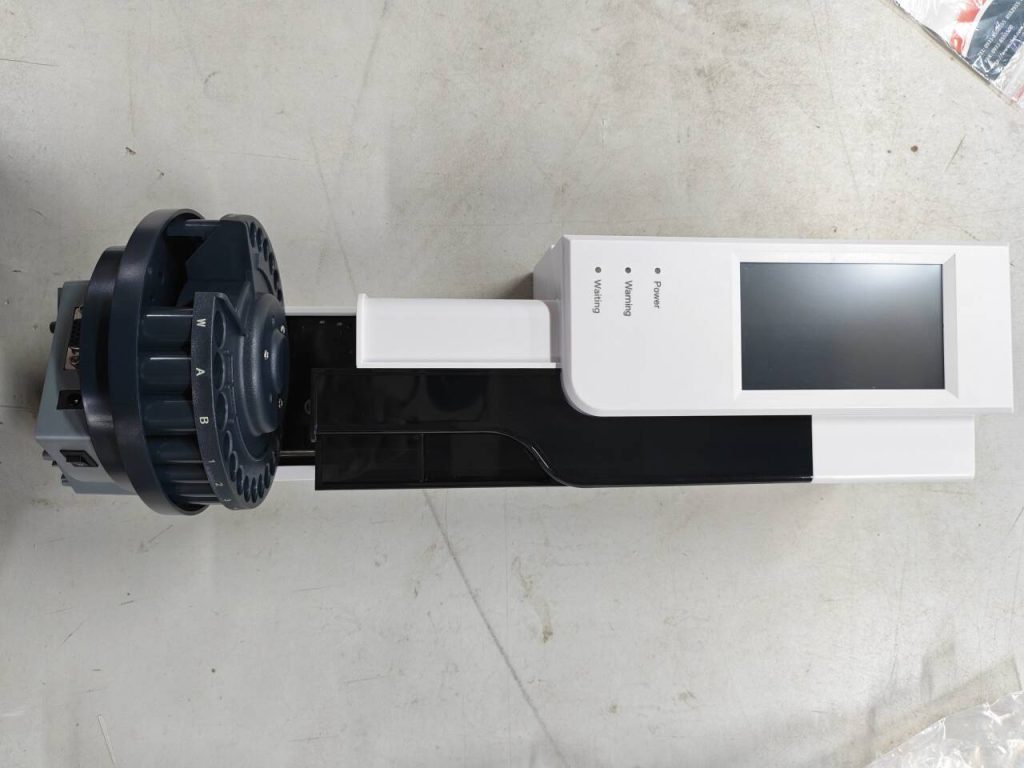

  • Auto sampler

AS-20(22 sample places) PAL LSI 850 (54*3 sample places)(From CTC Analytics, Switzerland)

  • Eclipse 4760 Purge & Trap Sample Concentrator (From OI, USA)

Customized for MSQ8100 GC/MS, used for VOCs in water and soil

4551A (water sample), 4100（water/soil sample）autosampler is optional

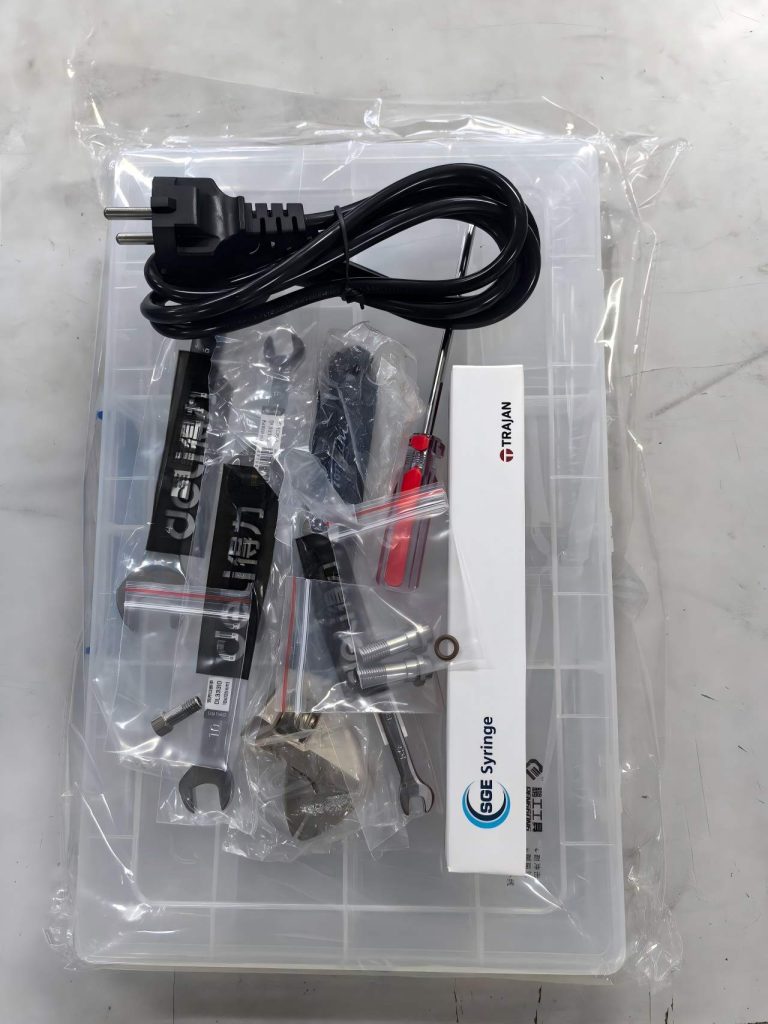

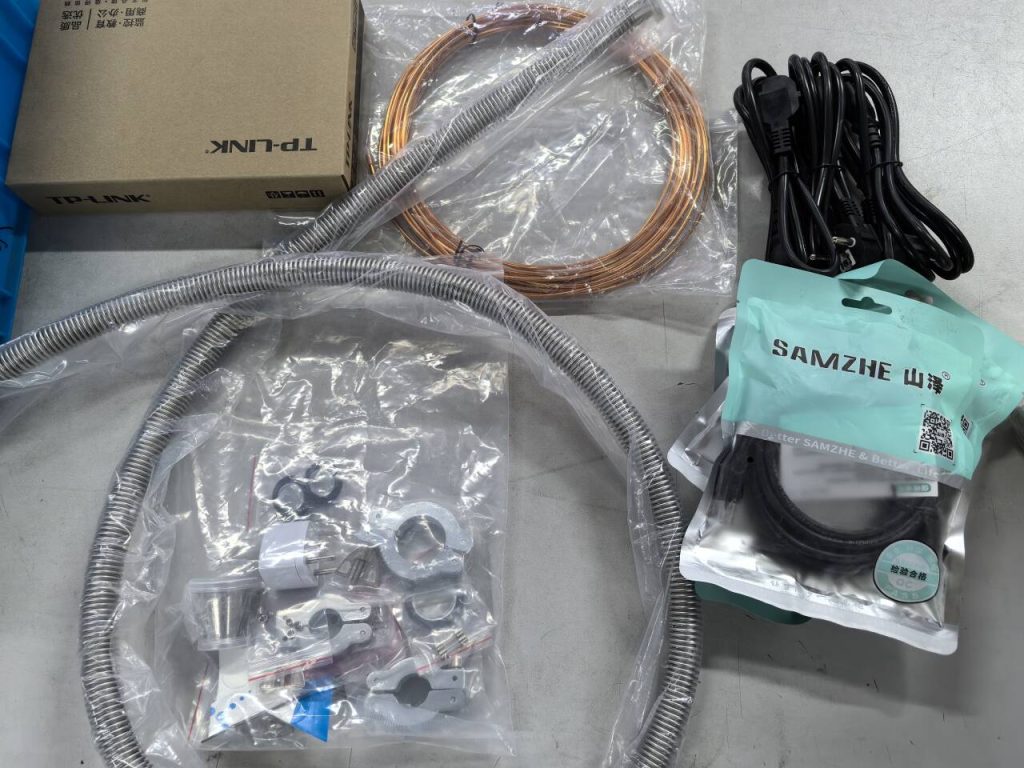

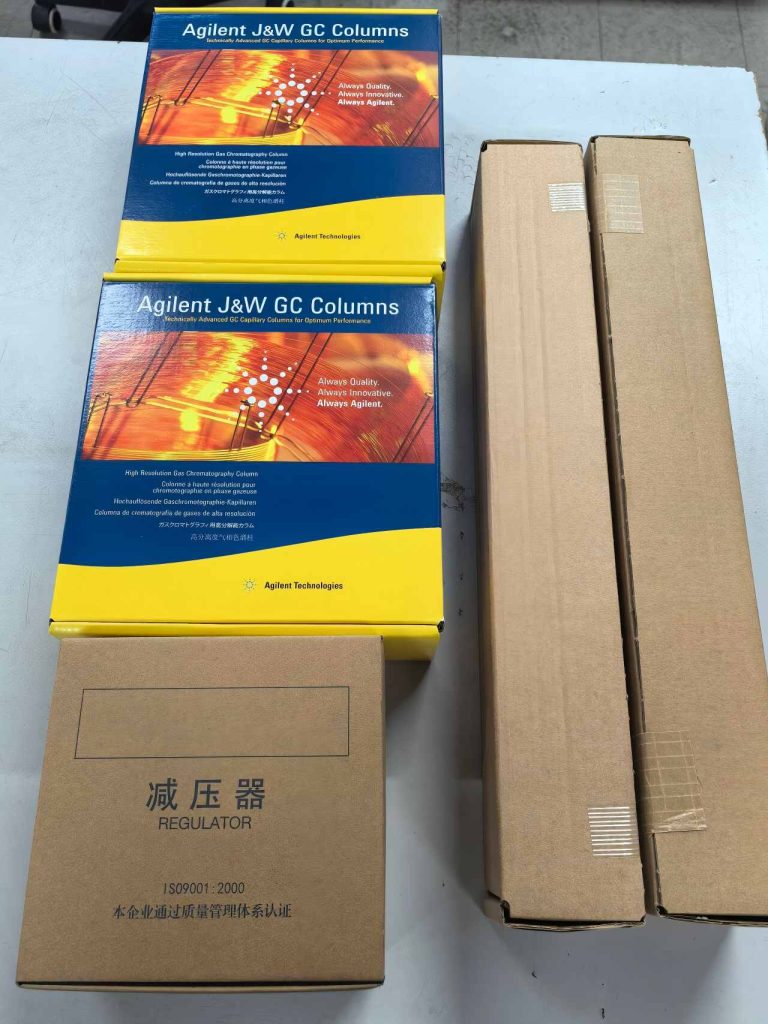

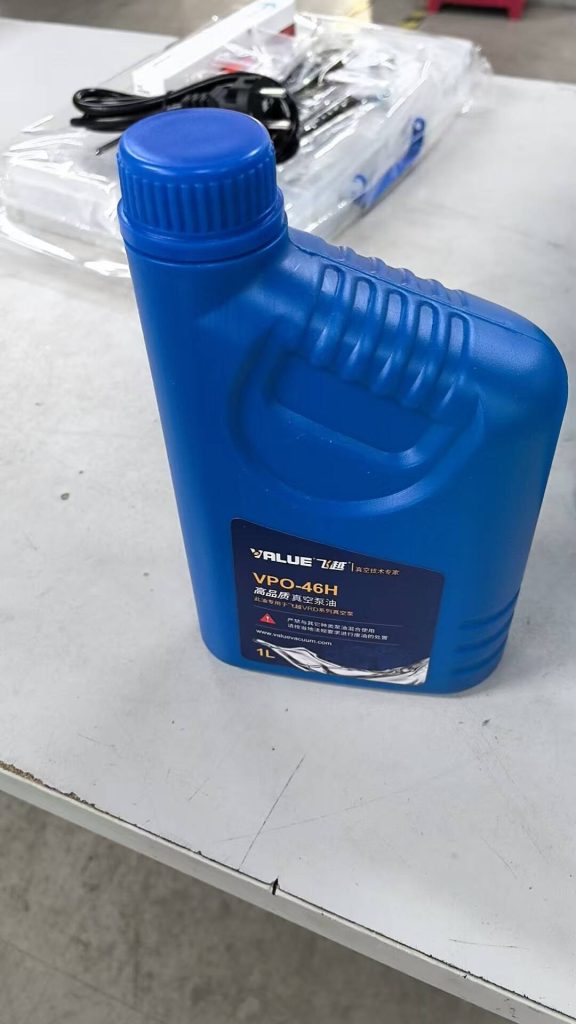

GC1290 MS8100 Accessories optional
