Electrophoresis Tank & Gel Imaging System
Drawell offers a comprehensive range of horizontal and vertical electrophoresis systems for DNA, RNA, and protein analysis. Our versatile solutions support low- and high-throughput applications in molecular biology and life science research, providing complete systems with tanks, inserts, and reagents for various gel sizes and sample capacities.
Gel Imaging System/Gel Documentation system is used for gel map observation after electrophoresis running.DNA or other bio-moleculars can not be seen under natural light,but with the help of UV light and high resolution CCD,it can be realized with fluorescent stain,such as ethidium bromide.Working with software,the electrophoreogram can be analysed and photographed by gel documentation system.Meanwhile, the impages can be zoomed in and out according to users’ requirements.
Features of Electrophoresis System
- Adopt imported high-transparency PC material, one-time injection molding.
- Two-color top cover is available, and the electrophoresis electric field is automatically cut off when the cover is opened to ensure safe operation; the side-flip top cover design can effectively dissipate heat and facilitate observation during electrophoresis.
- The tray has a handle design to ensure the safety of the operation process.
- The tray has an anti-drift function to effectively prevent the strip from bending.
- The tray has a sample addition background color design for easy sample addition.
- The safety cover opening button design facilitates the opening of the top cover;
- Equipped with a special gel box.
- Equipped with a horizontal adjustment function.
- The detachable electrode holder makes the maintenance and replacement of the electrode more convenient, quick and safe.
Electrophoresis Tank & Gel Imaging System Classification
| Model | Gel Size(W×L),mm | Buffer Volume(mL) | Sample volume | Gel making mode | Recommended Power Supply |
| DW-SPAT | 48×75 | ～150 | 3～18 | Gel box | DW-300C, DW-300E |
| DW-SPBT | 78×100 | ～400 | 10～30 | Gel box | DW-300C, DW-300E |
| DW-SPCT | 120×120, 60×120, 120×60, 60×60 | ～550 | 1～100 | Gel box | DW-300E, DW-600E |
| DW-SPFT | 130×130, 78×100, 48×75 | ～600 | 3～104 | Gel casting | DW-300E, DW-600E |
| DW-SPGT | 200×200, 200×150, 200×100 | ～1800 | 17～164 | Gel casting | DW-600C, DW-6000E |
| DW-SPHT | 245×250 | ～2000 | 19～364 | Gel casting | DW-600C, DW-6000E |
| DW-SP7 | 70×250×2, 90×250×2 | ～1000 | —— | —— | DW-300, DW-600 |
| DW-SP7A | 66×25, 82×25 | ～560 | —— | —— | DW-600 |
Drawell Electrophoresis Tank Recommends:
| Model | Effective pixels | Resolution: | Camera | Transmission UV wavelength | Reflectance UV wavelength |
| DW04S-3C | 1280×1024 | 1.4Megapixels | Low illumination and high resolution digital CCD | 302(nm) | 254, 365(nm) |
| DW04S-3E | 2560×1920 | 5.0Megapixels | Low illumination and high resolution digital CCD | 302(nm) | 254, 365(nm) |
Drawell Electrophoresis System Recommends:
Application of Electrophoresis Tank & Gel Imaging System

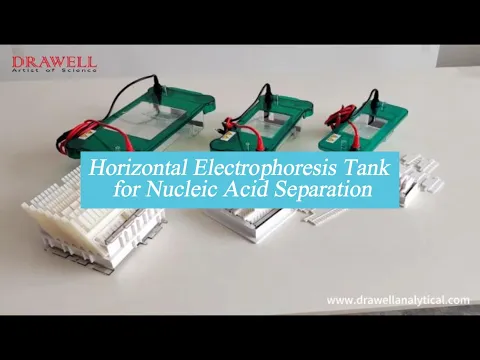

- Horizontal Electrophoresis
- Analysis, Purification and Preparation of Nucleic Acid Samples(DW-SPAT, DW-SPBT, DW-SPCT, DW-SPFT, DW-SPGT, DW-SPHT)
- Detection of High-throughput PCR Samples(DW-SPCT, DW-SPFT, DW-SPGT, DW-SPHT)
- Paper Electrophoresis(DW-SP7,DW-SP7A)
- Slide Electrophoresis /Comet Electrophoresis(DW-SP7,DW-SP7A)
- Cellulose Acetate Membrane Electrophoresis(DW-SP7,DW-SP7A)
- Vertical Electrophoresis
- Analysis and Purification of Protein Samples(DW-SCZ2+,DW-SCZ4+)
- Analysis, Purification and Preparation of Nucleic Acid Samples(DW-CZ-BL)
- Seed Purity Detection(DW-CZ-BL)
- High-throughput Rapid SSR Marker Analysis(DW-CZ-BL)
- Nucleic Acid Sequencing
Applicable to AFLP analysis, differential display, microsatellite analysis (SSR), SSCP research, heteroduplex nucleic acid molecule analysis, DNA footprinting, RNase protection test, S1 nuclease map, primer extension analysis.
- Gel Imaging System / Gel Documentation System
Used for observation, photography and analysis of gel bands after electrophoresis.
Gel Imaging System / Gel Documentation System, Real-Time Image Preview and Photo Taking

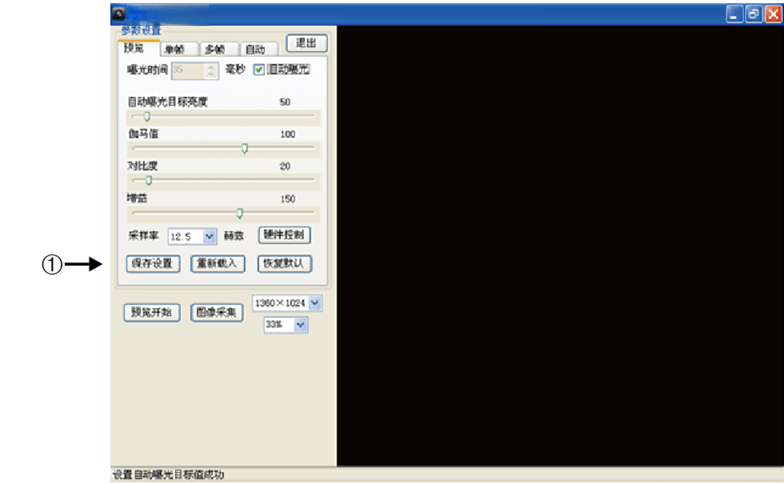

- ① Users can save the adjusted image parameters;
- ② Time intervals can be set according to actual needs, and dynamic continuous shooting can be performed to obtain the experimental result images with the best conditions and effects;
- ③ Exposure value evaluation function is available to facilitate obtaining the best exposure time;
- ④ Optimal image screening function is available;
- ⑤ The “negative film” function can be selected to achieve the exchange of background color and atlas color;
- ⑥ Users can choose different formats of images to save according to their needs.
Electrophoresis Accessories
- Lid with Cables
- Body Tank with Electrodes
- Multi-Size Gel trays
- Gel box
- Gel Casting Stand
- Multi-thickness, Multi-wells comb
- Level Adjusting Button
Electrophoresis Power Supply for Electrophoresis Tank
Max. Voltage Ranges From 200V to 10000V
| Model | Voltage Range(V) | Current Range(mA) | Power Range(W) | Display |
| DW-200E | 5-200 | 1-2000 | 1-200 | LCD |
| DW-300E | 5-300 | 1-400 | 1-120 | LCD |
| DW-300HE | 10-300 | 1-1500 | 1-450 | LCD |
| DW-600E | 10-600 | 1-500 | 1-300 | LCD |
| DW-600HE | 5-600 | 1-1000 | 1-300 | LCD |
| DW-1000E | 30-1000 | 1-500 | 1-300 | LCD |
| DW-1600E | 10-1600 | 1-200 | 1-320 | LCD |
| DW-3000E | 20-3000 | 1-400 | 1-400 | LCD |
| DW-5000E | 20-5000 | 1-200 | 1-100 | LCD |
| DW-10000E | 20-1000 | 1-3500uA | 1-35 | LCD |
Drawell Electrophoresis Power Supply E series:
Max. Voltage Ranges From 200V to 3000V
| Model | Voltage Range(V) | Current Range(mA) | Power Range(W) | Display |
| DW-200C | 5-200 | 1-2000 | 1-200 | LCD |
| DW -300C | 3-300 | 1-400 | 1-120 | LCD |
| DW -600C | 10-600 | 1-500 | 1-300 | LCD |
| DW-300HC | 10-300 | 1-1500 | 1-450 | LCD |
| DW-600HC | 10-600 | 1-1000 | 1-300 | LCD |
| DW-ECPT3000 | 200-3000 | 1-200 | 1-200 | LCD |
Drawell Electrophoresis Power Supply Series:
5-300V or 5-600V, LED Display
| Model | Voltage Range(V) | Current Range(mA) | Power Range(W) | Display |
| DW-300 | 5-300 | 1-300 | 1-90 | LED |
| DW-600 | 5-600 | 1-200 | 1-120 | LED |
Drawell Electrophoresis Power Supply Recommends:
