HH-Series Electric Constant Temperature Water Bath
Electrothermal thermostatic water bath is one of the common equipment for pre-processing of laboratory samples. It is mainly used in medical, chemical, biological, scientific research enterprises, laboratory and so on. The structure is composed of shell, pot body, electric heater and temperature control components.
Product details:
Working Principles of HH-Series Electric Constant Temperature Water Bath
The sensor converts the temperature of the water in the flume into the resistance value. after the amplification and comparison of the integrated amplifier, the control signal is output to effectively control the average heating power of the electric heating pipe, so that the water in the flume remains constant temperature.
Applications of HH-Series Electric Constant Temperature Water Bath
Our Advantages:

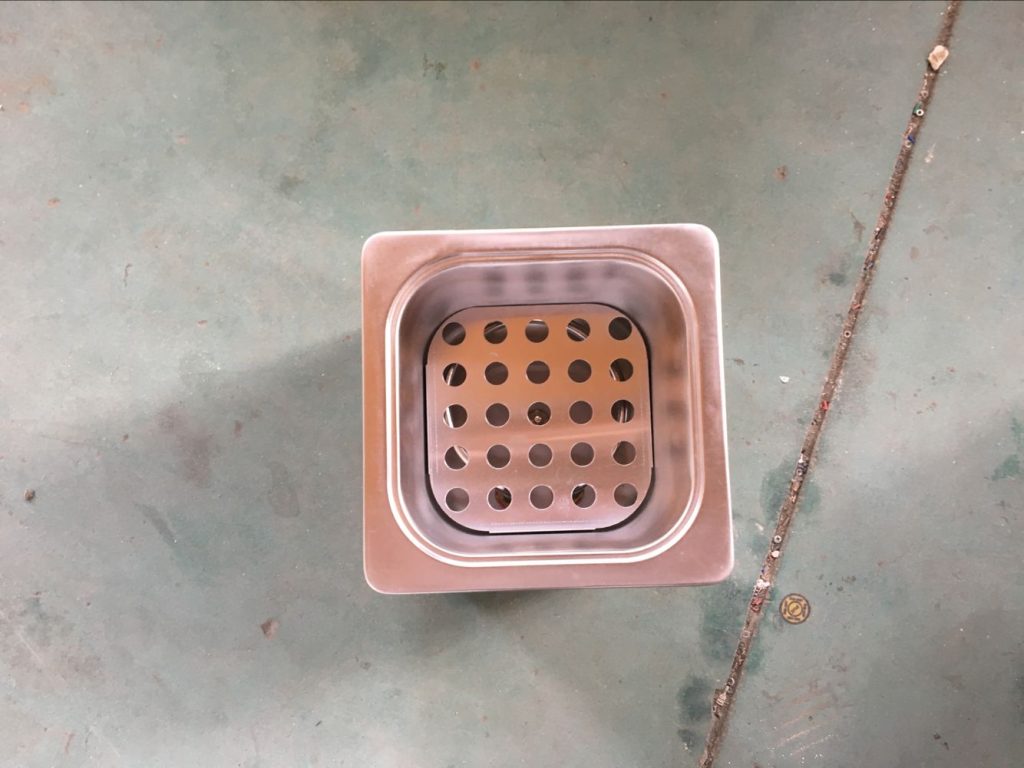

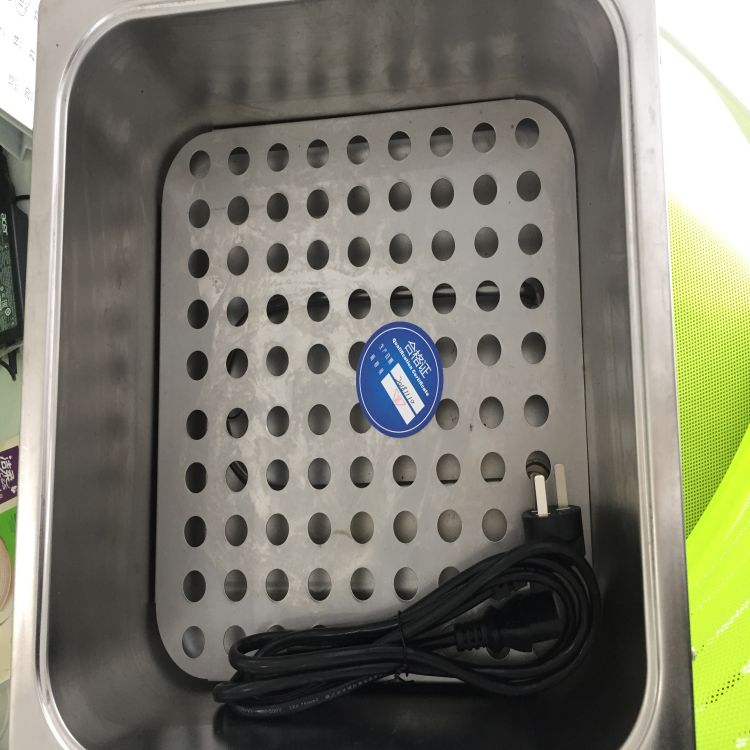

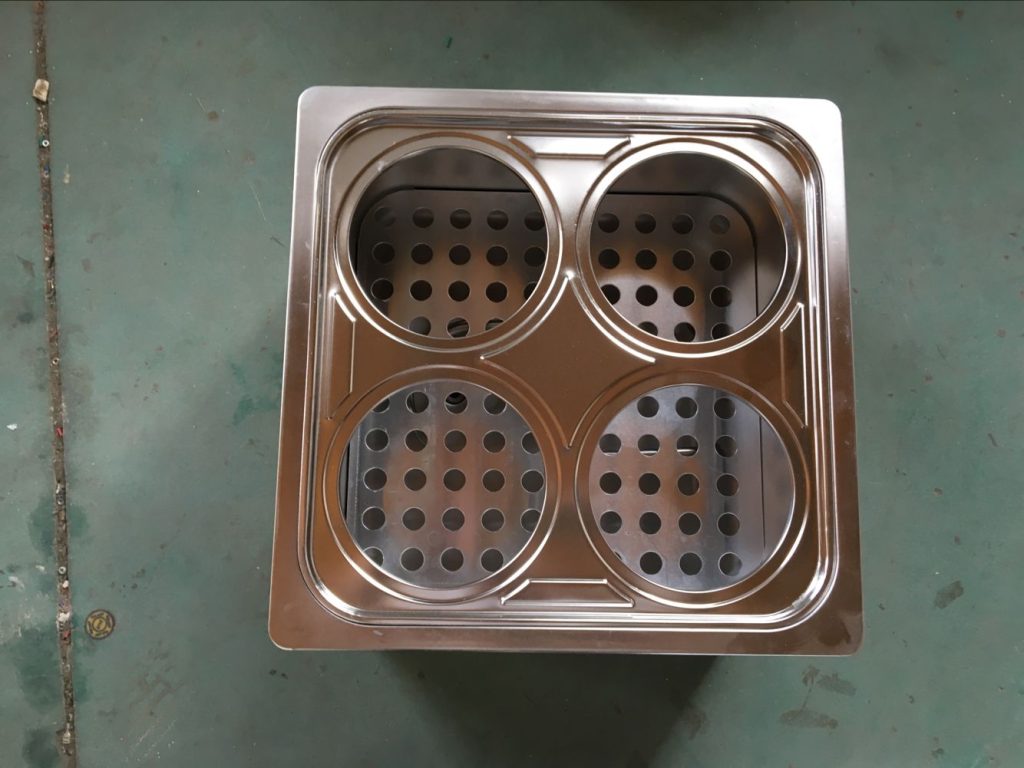

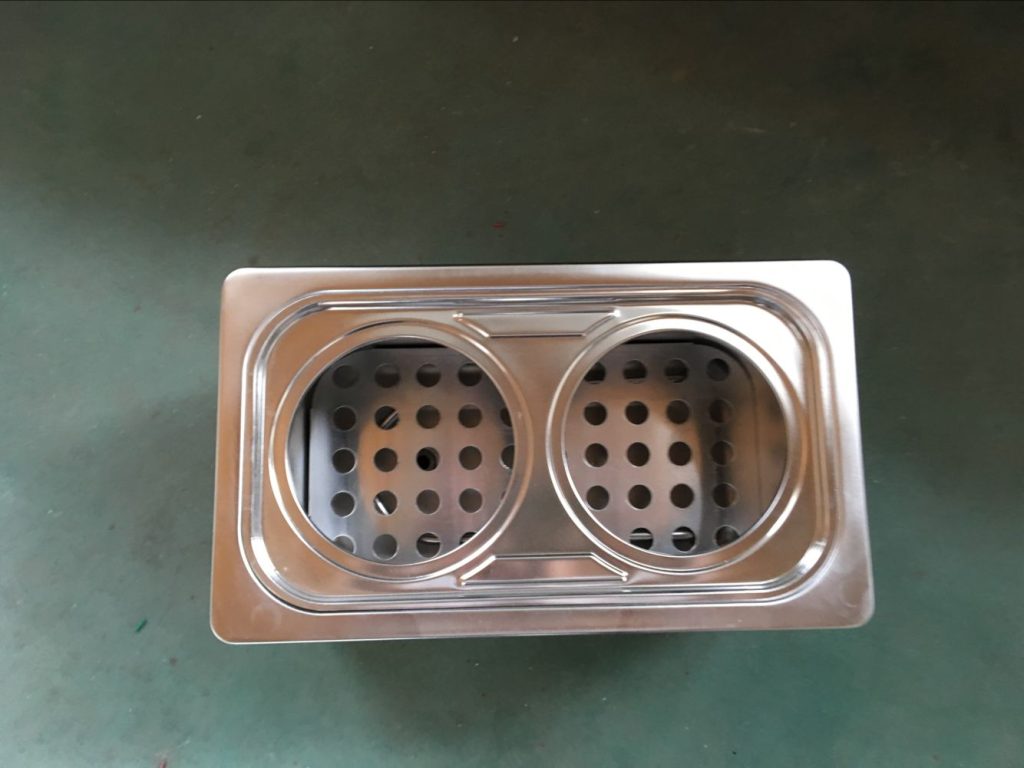

- Stainless steel tubular heaters are placed horizontally in a constant temperature water bath pot, and aluminum shelves with holes are placed inside the tank.
- The upper cover is equipped with different caliber combination ring, which can adapt to different caliber flask. There is a discharge tube on the left side of the water bath pot.
- The temperature control system adopts high-quality electronic components, which are sensitive to temperature control, reliable in performance, and convenient in use.
Technical Parameters of HH-Series Electric Constant Temperature Water Bath
| Model | Temperature Range/solution (℃) | Working dimension (mm) |

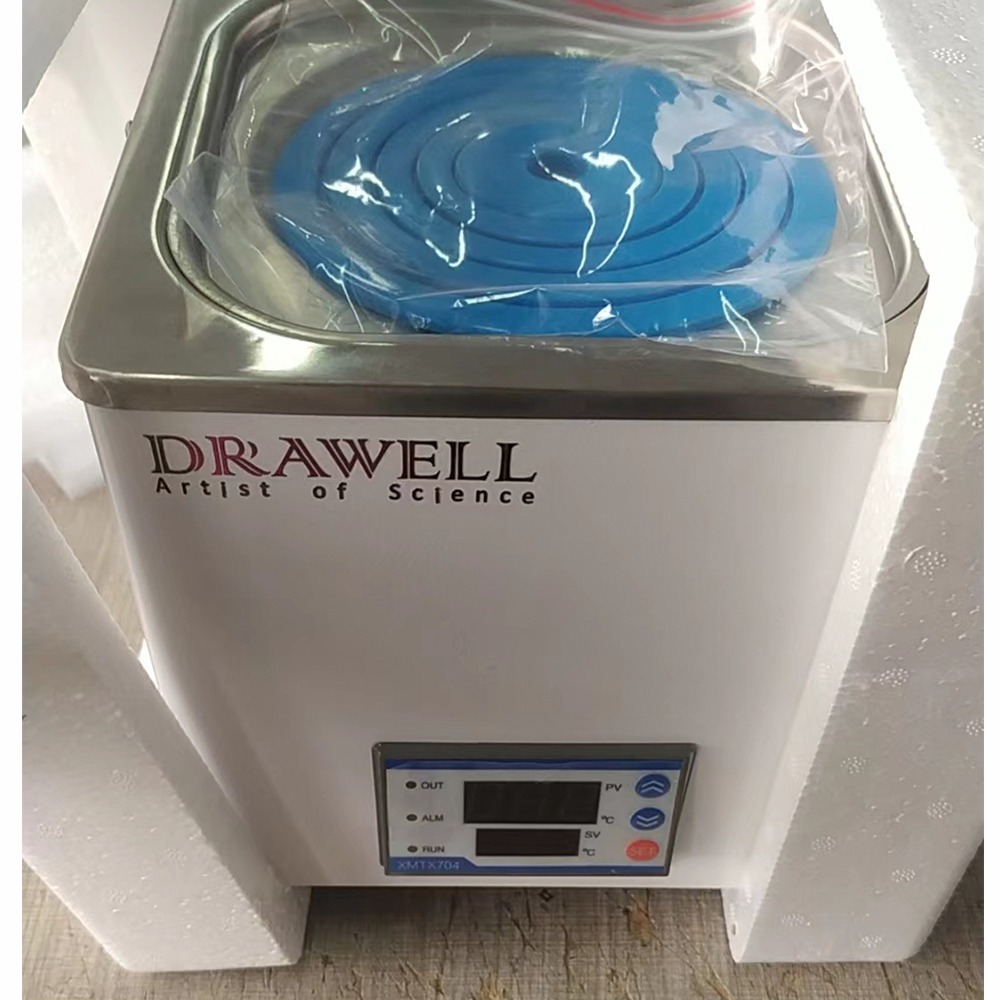

| HH-11-1 | RT+5℃-100℃ Temp Accuracy: ±0.5℃ Temp Resolution: 0.1℃ | 单列单孔/160*160*120 / 1 line 1 hole |
| HH-11-2 | 单列双孔/300*180*90 / 1 line 2 holes | |
| HH-21-4 | 双列四孔/320*320*90 / 2 line 4 holes | |
| HH-11-4 | 单列四孔/620*170*90 / 1 line 4 holes | |

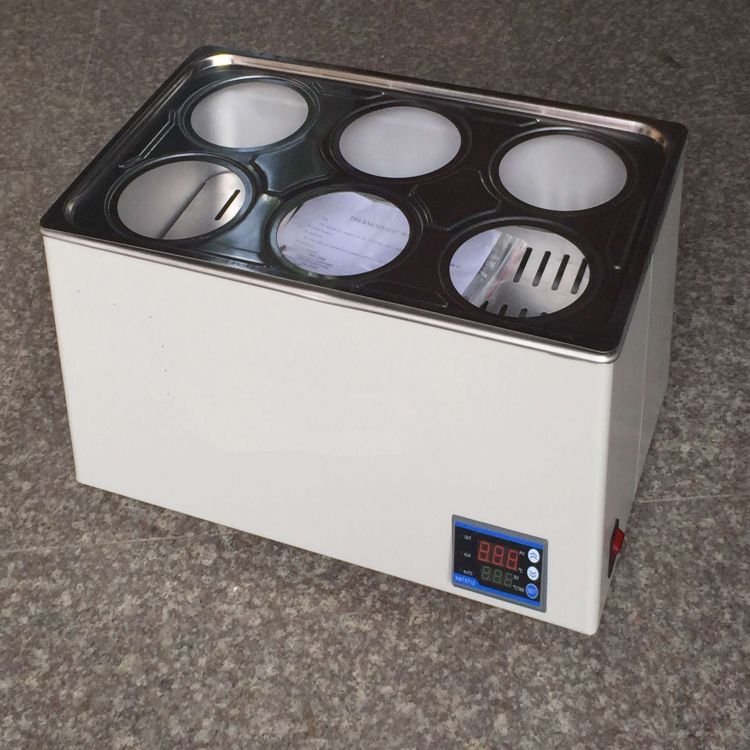

| HH-21- 6 | 双列六孔/420*320*90 / 2 line 6 holes | |
| HH-11- 6 | 单列六孔/920*170*90 / 1 line 6 holes | |

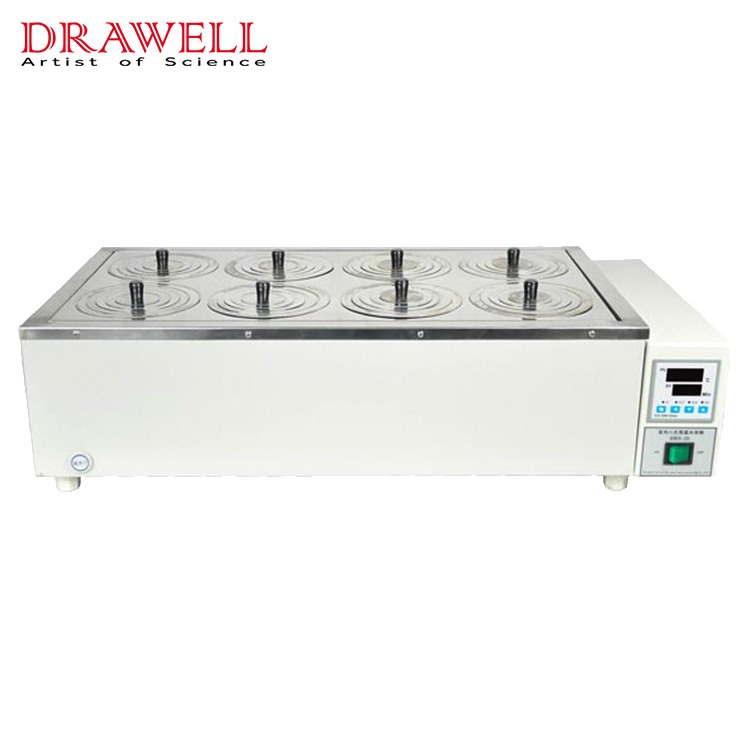

| HH-21-8 | 双列八孔/610*310*90 / 2 line 8 holes | |
| HH-11-8 | 单列八孔/1220*170*90 / 1 line 8 holes |

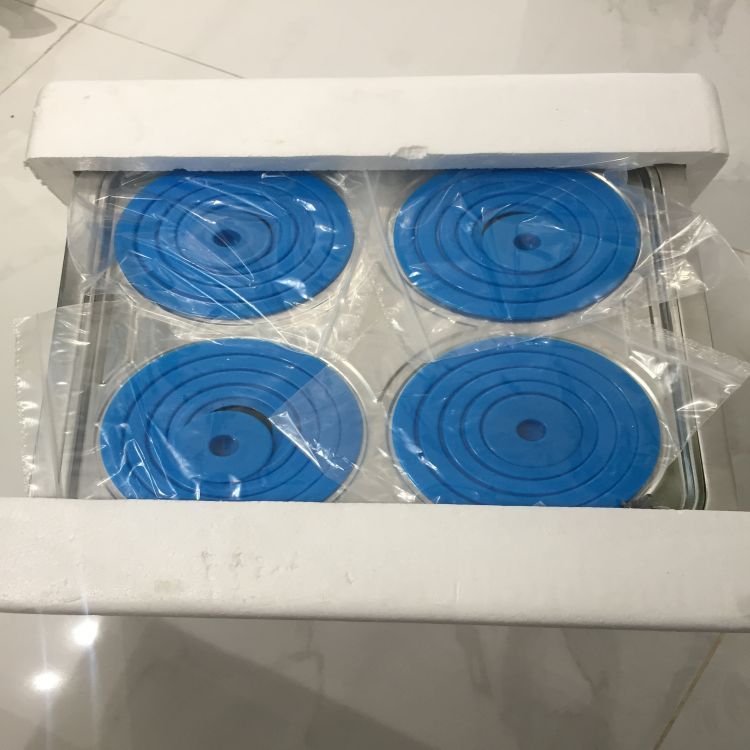

Packing list: Main engine, power cord, partition, upper cover, specification, warranty card, certificate

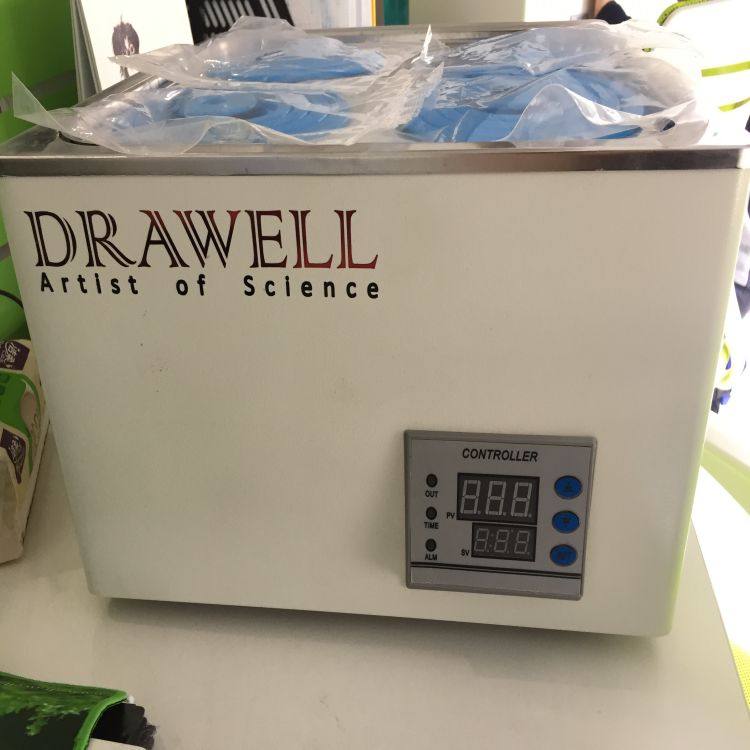

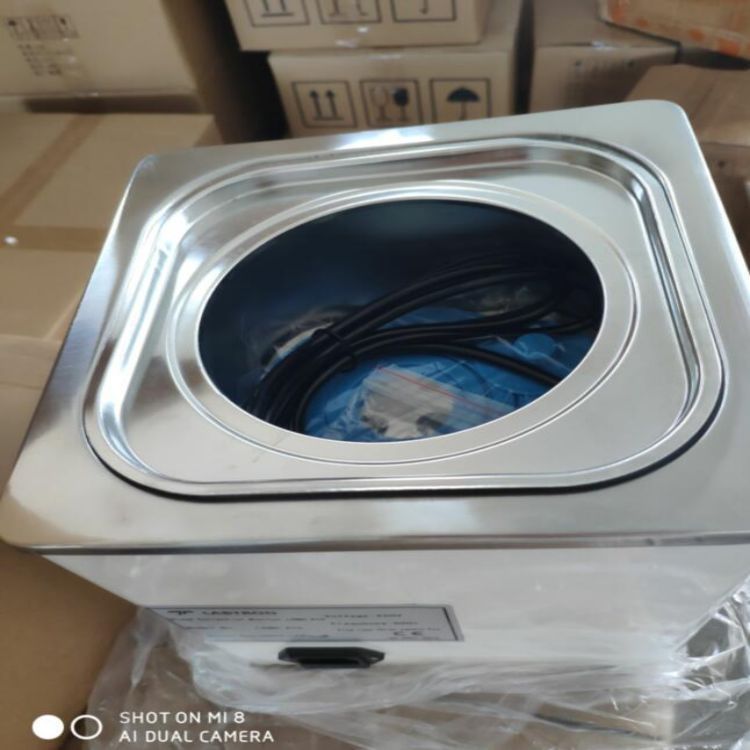

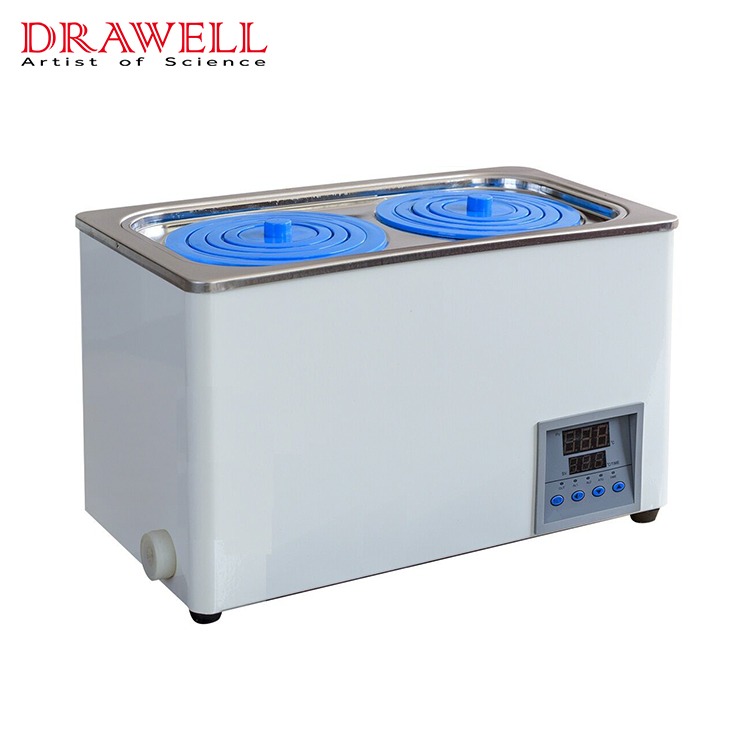

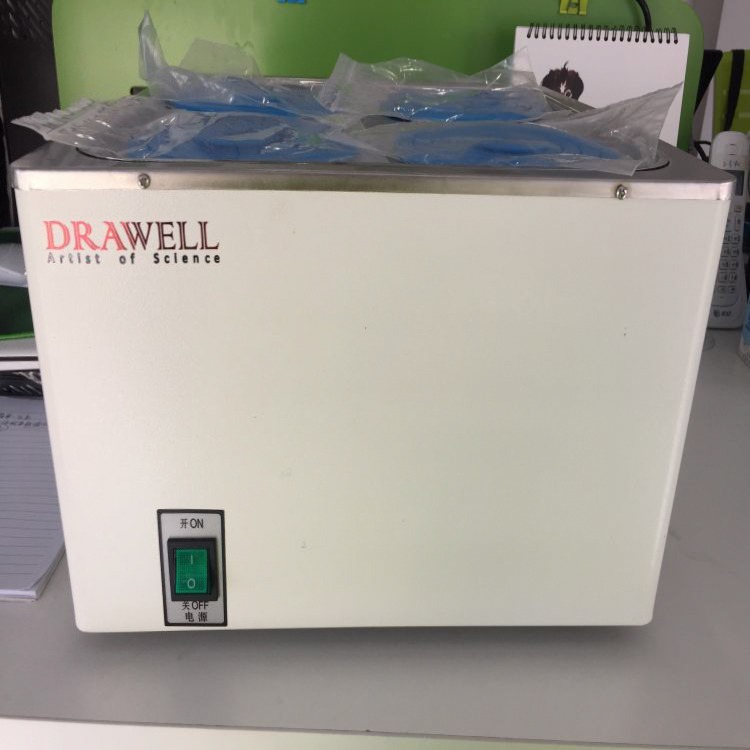

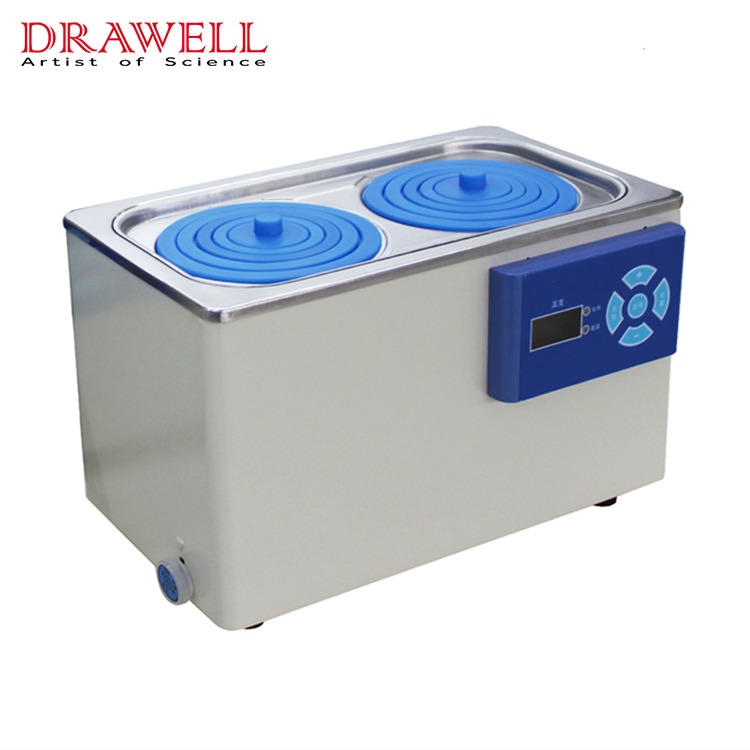

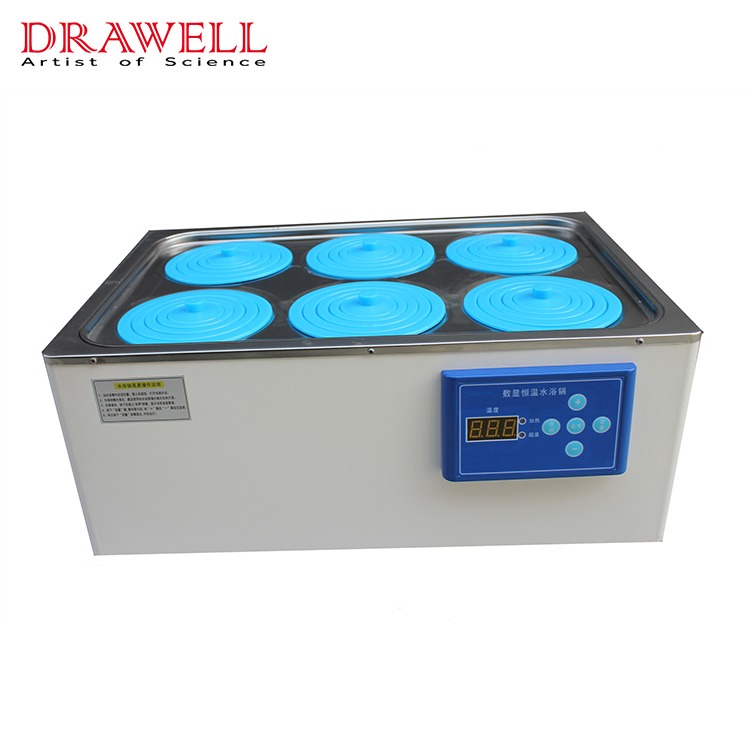

HH-Series Electric Constant Temperature Water Bath Display
