Economic Vortex Mixer MX-E
Vortex Mixers are ideal instruments for mixing liquid components in tubes, and resuspension of cells, using an eccentric mechanism. They are widely used in biological and chemical analysis applications.
MX-E is a new type of vortex mixer, suitable for short-time (inching) or long-term continuous work; the maximum speed is 3000rpm/min, the motor is steplessly adjustable; there is a variety of vibrating head adapters to choose from (can be used for Eppendorf tubes, etc.); Silicon base, small and exquisite, super shockproof, suitable for high-speed work; easy installation of the vibrating head, stable and reliable products, eccentric ball bearing design.
Feature of MX-E Vortex Mixer
- For a small amount of sample mix
- Touch operation
- Fixed speed: 3000rpm
- Small compact shape, ultra shock mount
- DC brushless motor, stable performance
- Eccentric bearing design
Specifications of MX-E Vortex Mixer
|
Voltage |
110-120V/220-230V |
|
Frequency |
50/60Hz |
|
Mixing motion |
Orbital |
|
Revolving diameter [mm] |
4.8mm |
|
Power |
12W |
|
Motor rating output |
10W |
|
Rotational speed |
3000rpm |
|
Operating mode |
Inching |
|
External Dimension |
133×133×80mm |
|
Package Dimension[W×H×D] |
250×185×130mm |
|
Net Weight |
0.6kg |
|
Permissible ambient temperature |
5-40℃ |
|
Permissible relative humidity |
80%RH |
|
Protection class |
IP21 |

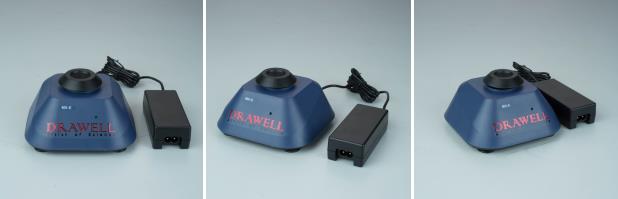

MX-E Vortex Mixer Display
