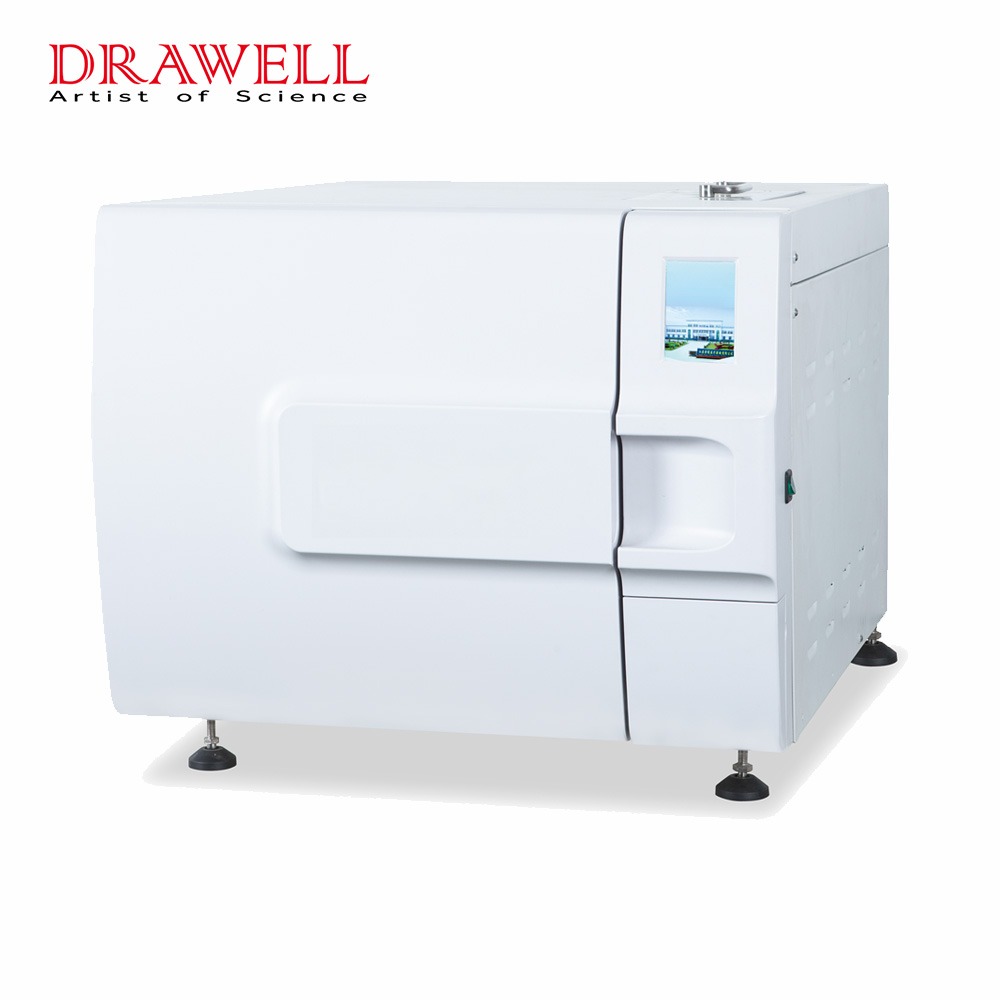

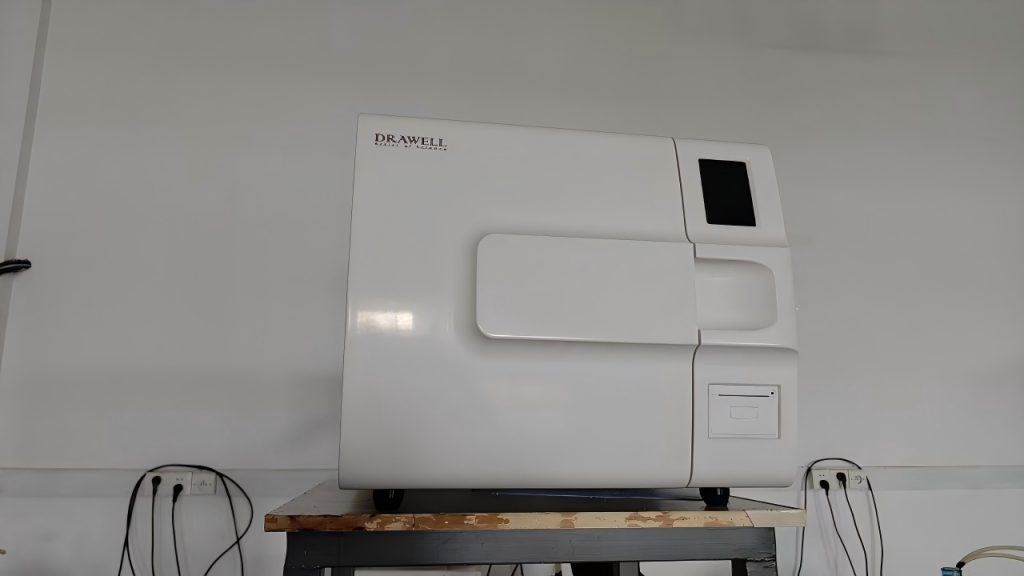

DWT-BA Series Pulsating Vacuum Table Top Steam Sterilizer
- Automatic door switch
- Automatic water

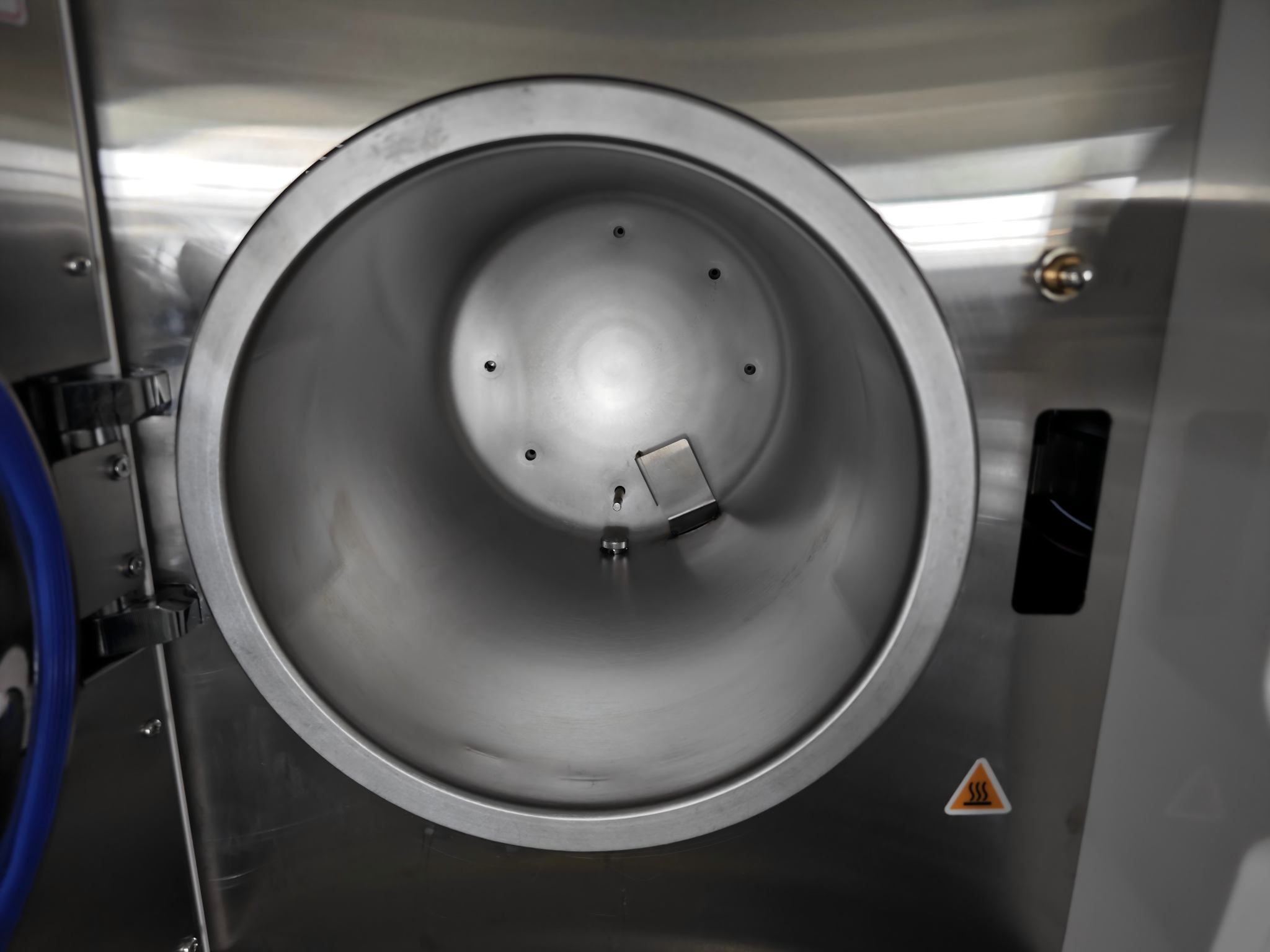

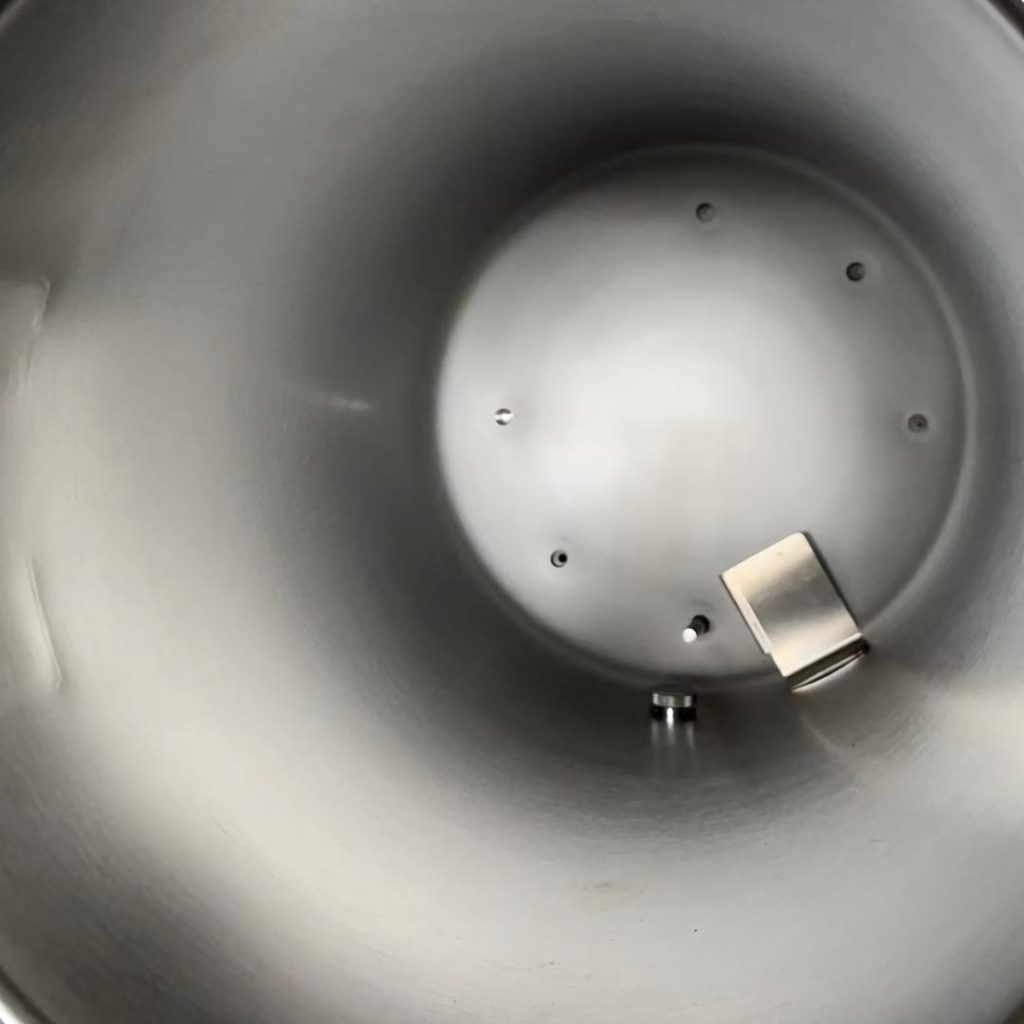

- Quality stainless steel inner tank, sealed cover
- Microcomputer control
- Safety interlocking device
- With drying function
- With BD test, HELIX test, and Vacuum test.
- LED display and inductive operation
- Equipped with standard test interface
- European CLASS B standard.
- With automatic protection function: over temperature protection, overpressure protection, low water level protection, anti-dry burning, safety door lock.
- Three times per-vacuum
- Buzzer reminder after sterilization, automatic stop.
- Automatic discharge of cold air, and automatic steam exhaust after sterilization.
- Built-in steam generator to provide saturated steam quickly
- With built-in printer, USB function, and U disk
Specifications of DWT-BA Series Pulsating Vacuum Table Top Steam Sterilizer
Technical parameter / Model | DWT-18BA | DWT-23BA | DWT-45BA |
Volume | 18L | 23L | 45L |
Power | 2kw | 2kw | 2.5kw |
Voltage | 110V/220V,60Hz/50Hz | ||
Design pressure | 0.25MPa | ||
Design temperature | 139℃ | ||
Rated working pressure | 0.22MPa | ||
Rated working temperature | 134℃ | ||
Chamber volume | ∅250×370 | ∅250×470 | ∅316×615 |
Outer dimension | 620×505×450 | 505×710×450 | 657×870×575 |
Packing size(L×W×H) | 670×560×510 | 760×560×510 | 980×750×630 |
Gross/net weight | 62/53kg | 65/58kg | 142/105kg |
