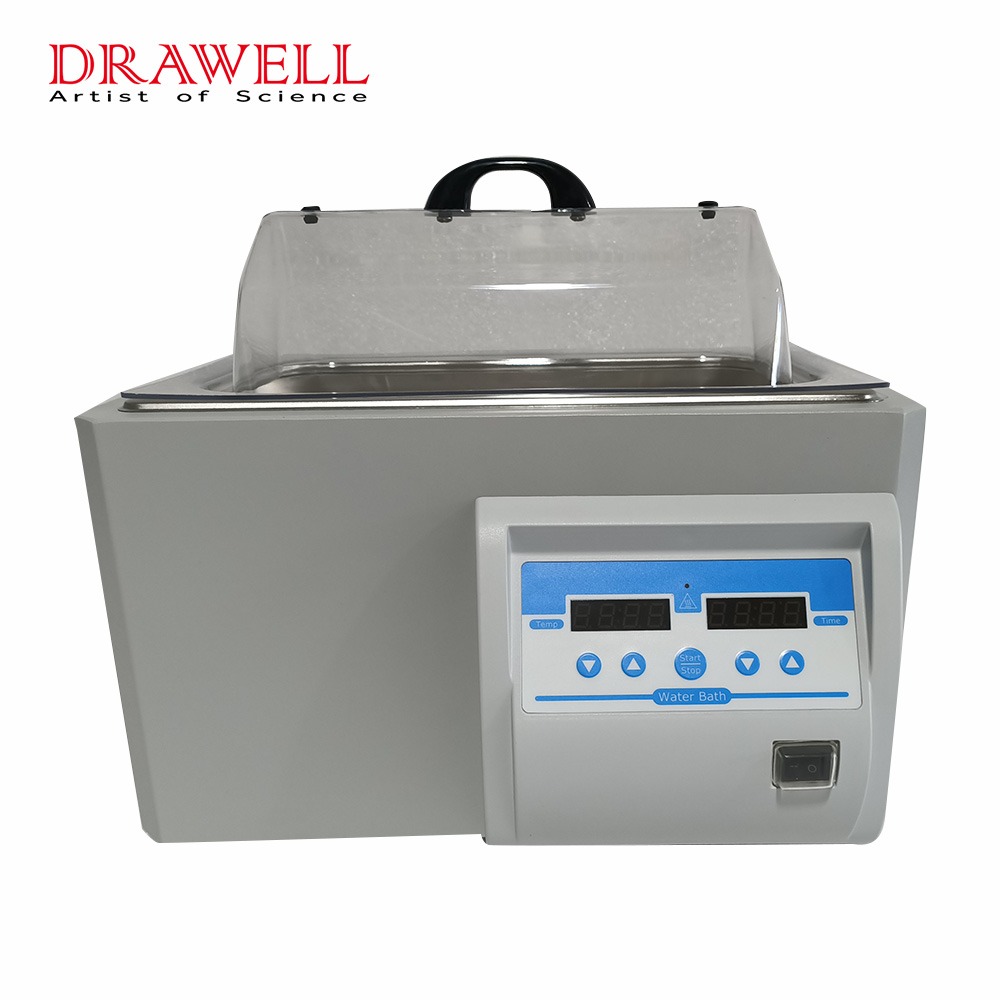

DW-W5L-1 Thermostat Water Bath

The Thermostat Water Bath is a temperature-controlled thermostat bath equipment. This durable and dependable water bath comes with a variety of safety and convenience features. It has a unique lid design that allows condensation to drain back into the tank without spilling onto the work area. High efficiency insulation maintains temperature stability and uniformity within the bath, while keeping the housing cool to the touch.

DW-W5L-1 Brochure

Features of DW-W5L-1 Thermostat Water Bath

  1. Digital set-up for temperature and time with independent LED display.
  2. Microprocessor control, uniform temperature control, high precision.
  3. Easy-to-clean stainless steel inner tank, with unique sealing structure to avoid water leakage.
  4. The side of the tank is equipped with an independent drain, which can easily drain the sewage after cleaning.
  5. The lid’s gabled design will divert condensation to the front and back of the tank, away from samples.
  6. The gabled lid design can effectively speed up the heating speed and solve the problem of frequent water addition for a long time heating.
  7. Built-in water level detection device to prevent the danger of dry burning.
  8. Over-heating protection device is included.

Parameters of DW-W5L-1 Thermostat Water Bath

ProjectDW-W5L-1
Temp. setting range0°C~100°C
Temp. control rangeRT.+5°C~100°C
Timing range1min~99h59min/∞
Temp. accuracy≤±0.3°C @37°C
Display accuracy0.1°C
Temp. uniformity≤±0.3°C @37°C
Heating time≤ 30min(25°C~100°C)
Tank capacity5L
Working area263x120x115mm
Power900W
VoltageAC220V or 110V/50-60Hz
Fuse250V  3A  Ф5×20
Dimension(mm)355x263x309mm
Weight(kg)5.1kg
