DW-SCZ2+ Vertical Electrophoresis Tank
Vertical electrophoresis serves as a powerful analytical tool for proteins and nucleic acids, supporting a wide range of life science research applications—from purity assessment to the analysis of complex protein lysates. DRAWELL offers a complete line of vertical electrophoresis systems, including tanks, inserts, and reagents, designed to accommodate various techniques, gel sizes, and sample capacities.
Features of DW-SCZ2+ Vertical Electrophoresis Tank
- Glass plate installation can be completed in just 15 seconds, ensuring a fast and easy setup.
- The integrated gel casting stand eliminates the need to transfer glass plates from casting to electrophoresis, allowing convenient observation of gel preparation through both sides of the glass.
- The contrasting background color on the core wall enhances visibility during sample loading and electrophoresis.
- A generous buffer volume provides effective cooling and maintains stable pH throughout the experiment.
- The system features an automatic power-off function when the lid is removed for enhanced safety.
Parameters of DW-SCZ2+ Vertical Electrophoresis Tank
| Model | DW-SCZ2+ |
| Glass plate size (W×L) | 100×100(mm) |
| Gel size (W×L) | 82×88(mm) |
| Gel thickness | 0.75, 1.0, 1.5 (mm) |
| Number of gel | 1~2 pc(s) |
| No. of samples | 11~30 |
| Total buffer volume | 750 (ml) |
| Gel making mode | Gel casting |
| Dimension(L×W×H) | 150×120×115(mm) |
| Weight | 1.5(kg) |

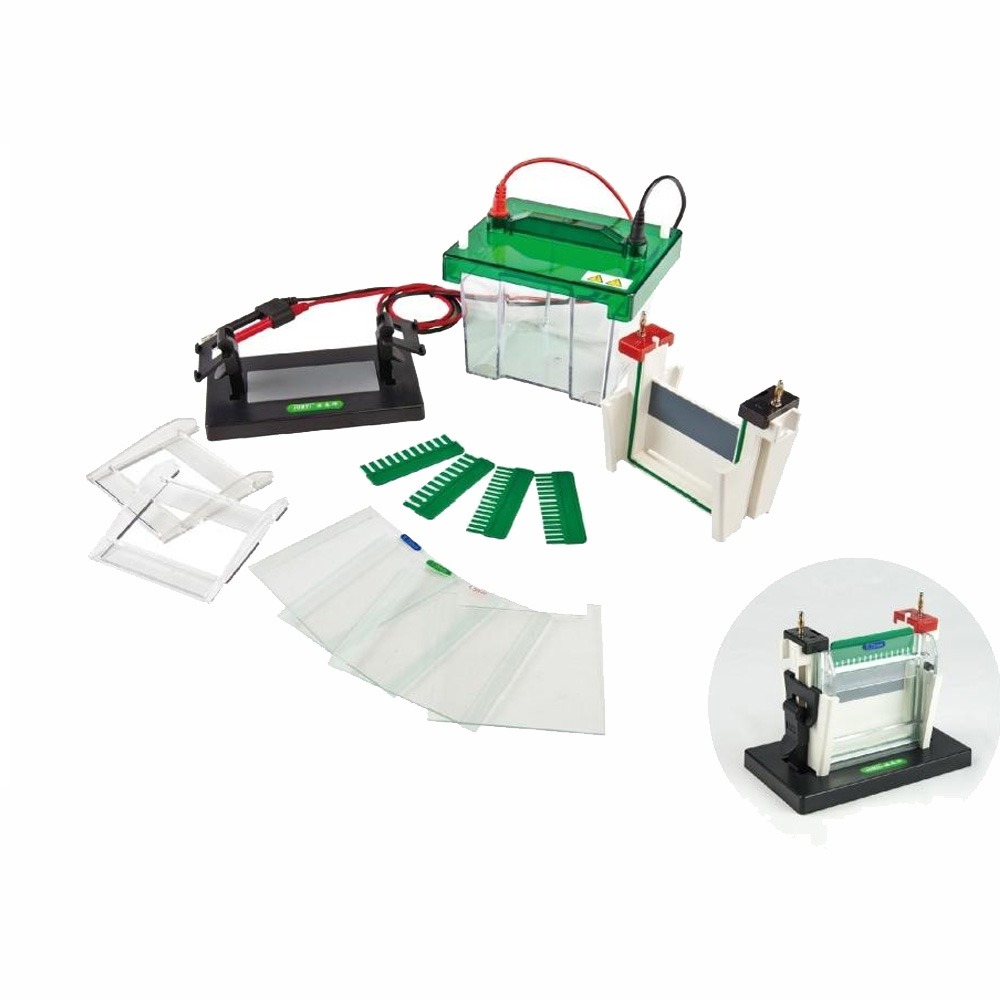

Packing List of DW-SCZ2+ Vertical Electrophoresis Tank
| Parts name | Quantity |
| Lid with cables | 1 |
| Body tank | 1 |
| Gel casting core with electrodes | 1 |
| Gel casting stand | 1 |
| Notched glass plates | 4 |
| Spacer plate with 0.75mm glass spacer | 2 |
| Spacer plate with 1.0mm glass spacer | 2 |
| Spacer plate with 1.5mm glass spacer | 2 |
| 0.75mm thickness 11-well comb | 2 |
| 1.0mm thickness 11-well comb | 2 |
| 1.5mm thickness 11-well comb | 2 |
| 0.75mm thickness 15-well comb | 2 |
| 1.0mm thickness 15-well comb | 2 |
| 1.5mm thickness 15-well comb | 2 |
| Gel releaser | 1 |
| Wedged-shaped plates | 2 |
| Dummy plate | 1 |
