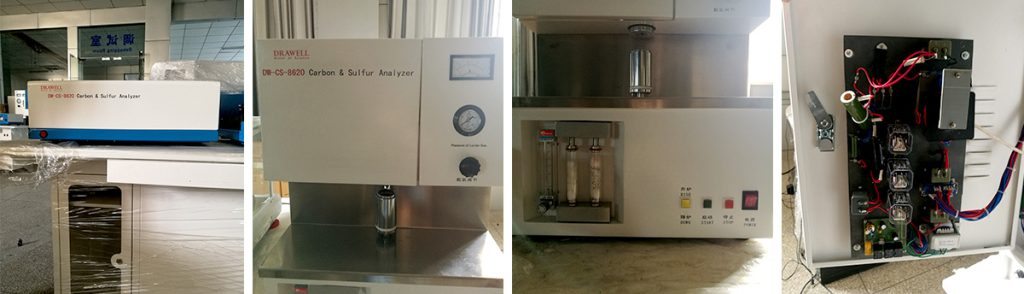

DW-CS-8620 Arc Infrared Carbon & Sulphur Analysis Instrument
DW-CS-8620 Description
Infrared Carbon&Sulfur Analyzer, with infrared analysis techniques and arc burner, is used to testing the mass fraction of C,S of steel, alloy, nonferrous metal, cement, ore, catalyst and other materials.
Main Features of DW-CS-8620
(1) Convenient, practical and reliable: unique burning device, equipped with infrared detection system, direct online, remote operation.
(2) Tubular oven high pressure device design and metal filtering device, ensure the airflow stability.
(3) Adopting pyroelectric infrared detectors with low noise, high sensitivity and high stability and using Tailor-made new platinum infrared light source of fever continued and high efficiency of the spectral characteristics.
(4) Infrared testing and combustion furnace are connected by optical fiber, with multistage hidden isolating circuit, complete eliminate the arc interference completely.
(5) Weighing the sample in variable amount with electronic balance: different brands of electronic balance are selectable, automatic online, to realize weighing the sample in variable amount.
(6) Apply to arc burning infrared carbon&sulfur analysis software. English operating software, convenient operation and easy to master.
Main technical parameter
| Testing elements | C,S Surveying |
| Analysis theory | Arc furnace burn infrared absorptive detection |
| Analysis range | C: 0.0010%-10.000% S: 0.0005%-0.500%(can extend to 99.9999%) |
| Analysis of error | C:Accor with GB/T223.69-1997 Standard; S:Accord with GB/T223.68-1997 Standard |
| Analysis time | 20-100s adjustable |
| Electronic balance | Weighing the sample in variable amount, weighing range:210g/0.001g |
Spare parts list
| Name | Model | Unit | Qty | Remark |
| Fuse tube | 4A 15A | Pc | 2 | |
| Relay | JTX-AC 220V | Pc | 1 | |
| Sealing ring | Ф9×1.9 | Pc | 1 | |
| Sealing ring | Ф5×1.9 | Pc | 1 | |
| PVC tube | Ф4×6 | M | 10 | |
| Silica gel ring | Ф42×20×4 | Pc | 1 | |
| Silica gel ring | Ф20×10×4 | Pc | 1 | |
| Dust extraction pipe | Pc | 1 | ||
| Smashing sample | Pc | 1 | ||
| Through grey hook | Pc | 1 | ||
| High quality hoses | Ф5×8.5 | M | 1 | |
| Silicon molybdenum powder | Bottle | 2 | ||
| Pure iron | Bottle | 1 | ||
| Tin granular | Bottle | 1 | ||
| Copper crucible | Pc | 2 | ||
| Tweezers | Pc | 1 | ||
| Samples spoon | Large, medium and small | Set | 1 | Stainless steel |
| Multi-purpose socket | Pc | 1 | ||
| Reducing valve | Pc | 1 | With special joint | |
| Tungsten electrode | Pc | 2 | ||
| Fur cap | Pc | 1 | ||
| Silicone tube | Ф6×9 | Pc | 1 |
