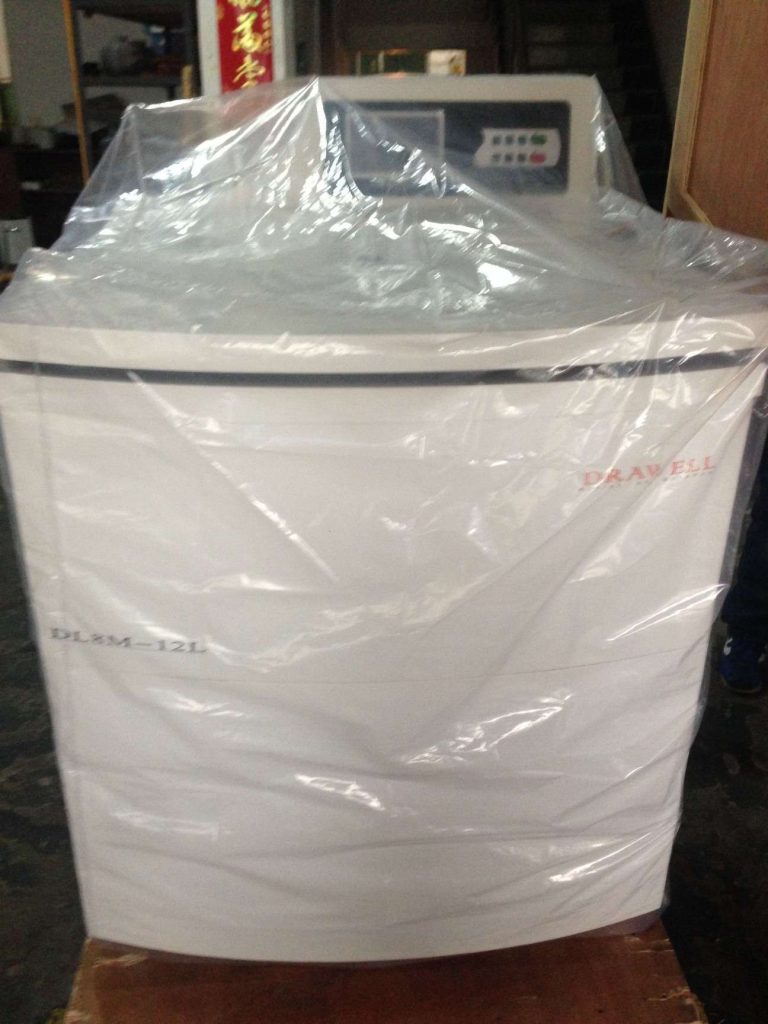

DL8M-12L Super Large Capacity Refrigerated Centrifuge

DL8M-12L Compact refrigerated floor standing centrifuge is specially designed for universal use in blood banks, clinical laboratories, serology investigations, molecular biology, serum separation, and pharmaceutical applications, where repeatability, precision, and reliability of speed, time, temperature, acceleration, and deceleration are significant factors in obtaining perfect separation of distinct blood fractions.

Features of Super Large Capacity Refrigerated Centrifuge

  1. Large color touch screen display, both shows the set parameters and operation parameters.
  2. All stainless steel internal and external structure, corrosion resistance and durable.
  3. Use the big Brand Compressor system,with the accurate temperature control system.
  4. Max capacity:6×2400ml or processing 18 bags of 400ml whole blood at one time.
  5. An easy-going operator interface with a standard English operating software, user can operate freely.
  6. With 35 operational programs can be designed, saved and used. Users can set 9 programs for daily operation use
  7. With the self-diagnositc system and protection for imbalance, over-speed and over-temperature. Both automatic electronic lock and mechanical lock to ensure safety.
  8. Acc/Dec 10 rates from 0~9 grade; Display speed of rise and fall curve, integral curve and temperature curve.
  9. Equipped with standard interface can connect computer to operate centrifuge, and composition local computer management system.
  10. Widely used in the field of blood station,pharmaceutical factory, biochemistry, biological products and so on.

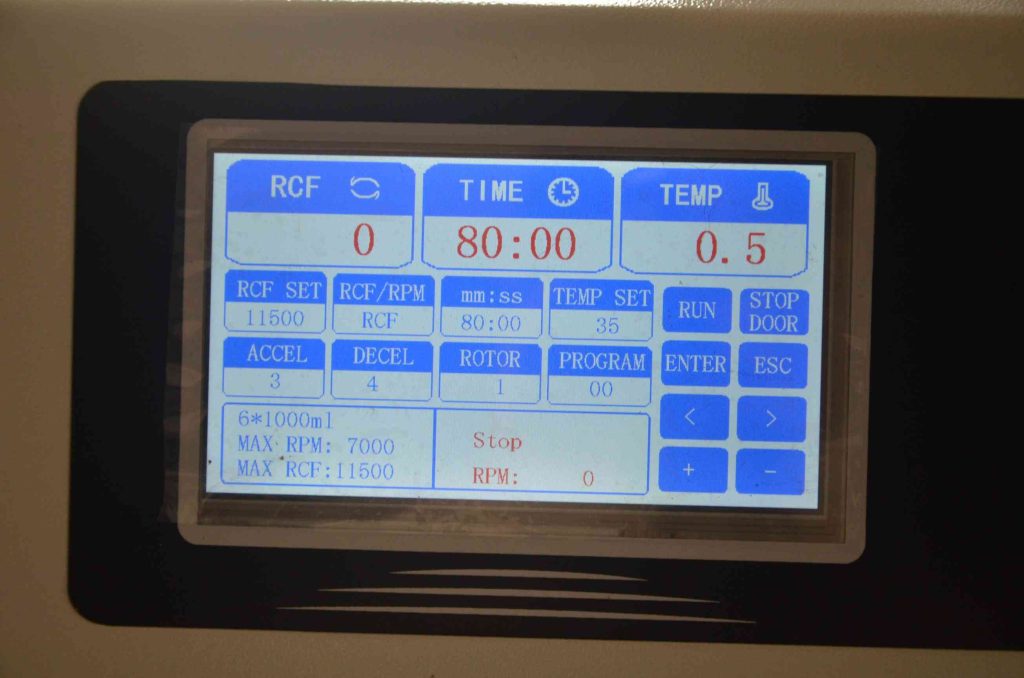

DL8M-12L-LCD Display
LCD Display

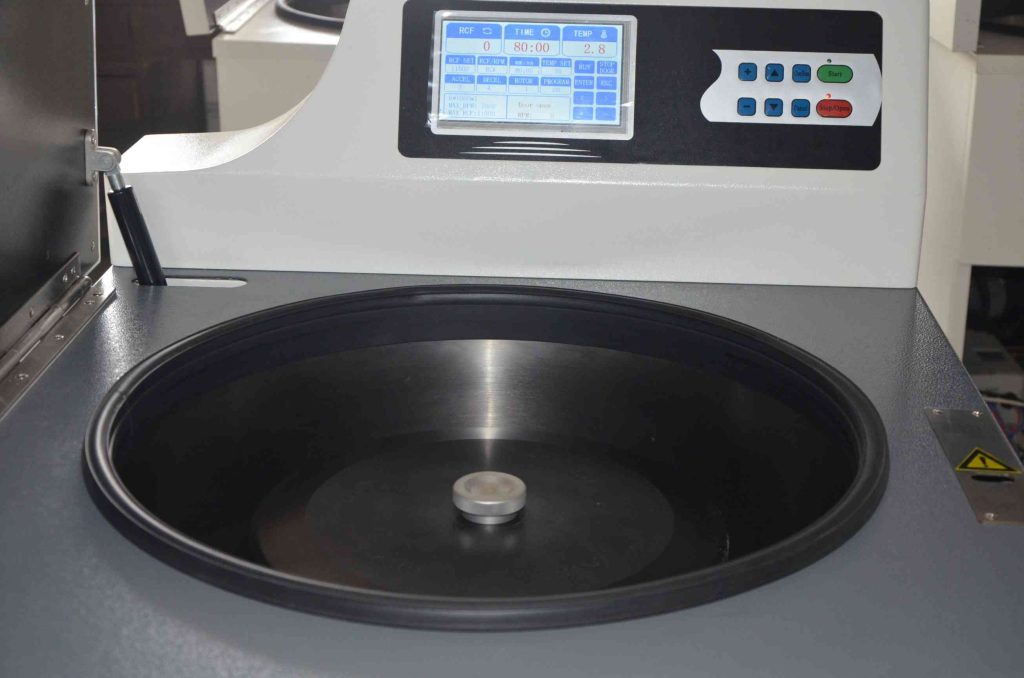

DL8M-12L-Intelligent Type
Intelligent Type

Specifications of the DL8M-12L Refrigerated Centrifuge

Model

DL8M-12L

Max Speed

8000r/min

Max RCF

15200xg

Max Capacity

6×24000ml

Speed Accuracy

±10r/min

Timer Range

0-99h 59 min

Temperature Range

-20~+40℃

control&drive

microprocessor control

Acc/dec Rate

0-9(Grade)

Program Store

35

Motor Power

4KW

Refrigerator Power

2.2KW

Noise

≤60dB(A)

Power Supply

AC220V 50Hz 35A

Weight (Without Rotor)

500kg

Dimensions (L×W×H)

960×860×1200mm

Refrigeration System

Big Brand High-performance Compressor CFC-free Refrigeration System

Technical parameters of DL8M-12L Refrigerated Centrifuge

Model

DL8M-12L

Max Speed

8000r/min

Max RCF

15200xg

Max Capacity

6×24000ml

Speed Accuracy

±10r/min

Timer Range

0-99h 59 min

Temperature Range

-20~+40℃

control&drive

microprocessor control

Acc/dec Rate

0-9(Grade)

Program Store

35

Motor Power

4KW

Refrigerator Power

2.2KW

Noise

≤60dB(A)

Power Supply

AC220V 50Hz 35A

Weight (Without Rotor)

500kg

Dimensions (L×W×H)

960×860×1200mm

Refrigeration System

Big Brand High-performance Compressor CFC-free Refrigeration System

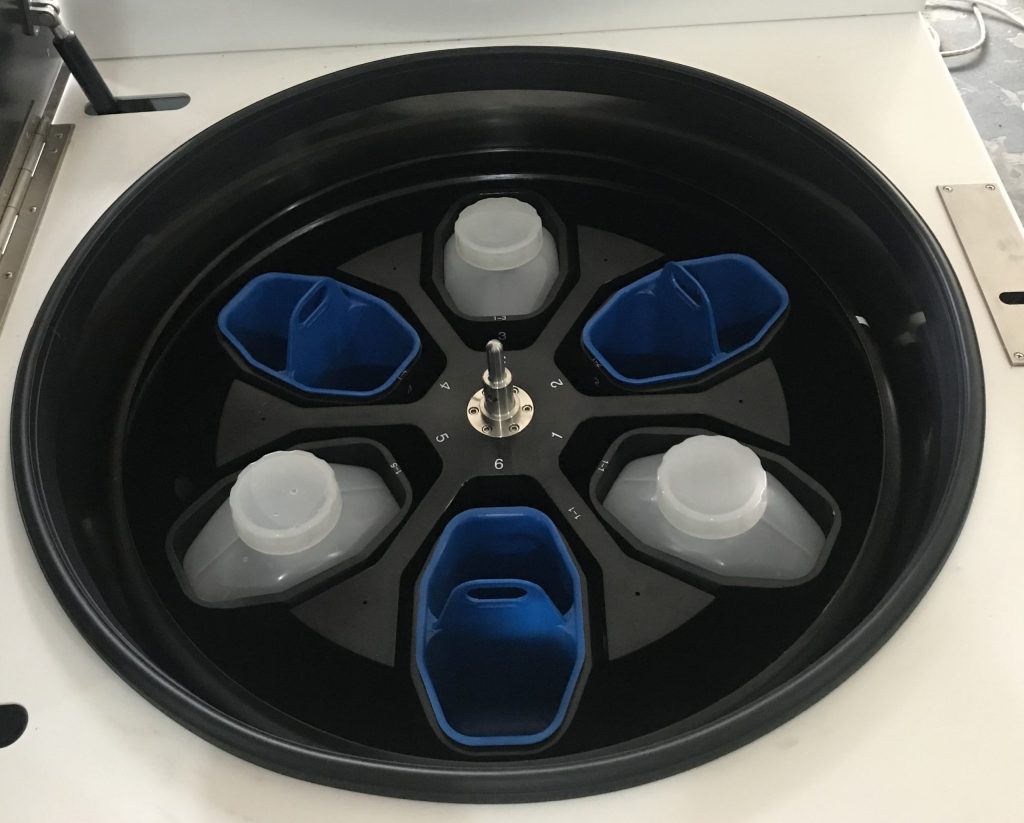

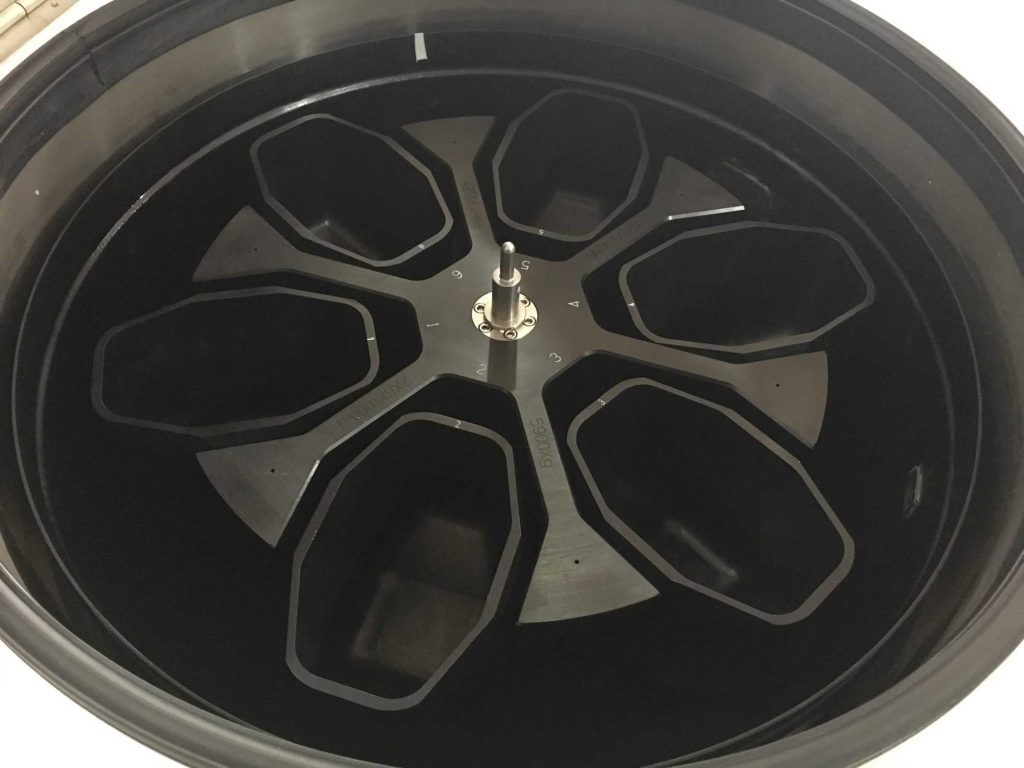

Rotor

图片1 28

No.1 Swing rotor

Max Speed:4000r/min

Capacity:2×6×1000ml

12*4-500ml blood bag

Max RCF:5800xg

图片2 26
No.2 Swing rotor

Max Speed:4200r/min

Capacity:6×2400ml

Max RCF:5900xg

图片3 17

No.3 Swing rotor

Max Speed:4000r/min

Capacity:24×200ml

Max RCF:5900xg

图片4 15

No.4 Angle rotor

Max Speed:8000r/min

Capacity:6×1000ml

Max RCF:15200xg

Application of DL8M-12L Super Large Capacity Refrigerated Centrifuge

Application of DL8M-12L Super Large Capacity Refrigerated Centrifuge

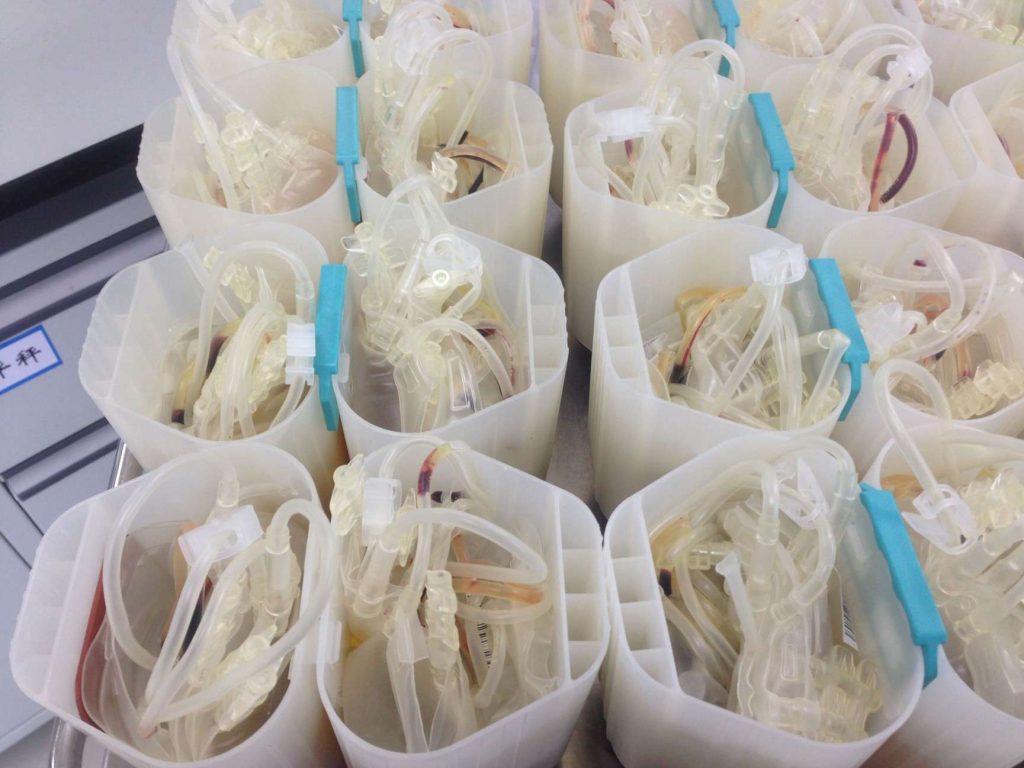

Blood Bank
Application of DL8M-12L Super Large Capacity Refrigerated Centrifuge
Bio-Technology
Application of DL8M-12L Super Large Capacity Refrigerated Centrifuge
Chemistry Lab
Application of DL8M-12L Super Large Capacity Refrigerated Centrifuge
Bio-Pharmaceutical
