Digital Viscometer

The viscometer refers to an instrument used to measure the viscosity of fluids (liquid and gas). NDJ and DV series digital viscometer has the advantages of high measurement accuracy, stable viscosity readings, convenient operation, and good anti-interference performance. They are widely used to determine the viscosity of various fluids such as grease, paint, food, medicine, adhesives, and cosmetics. It can also be used to measure the viscous resistance of liquids and the absolute viscosity of liquids.

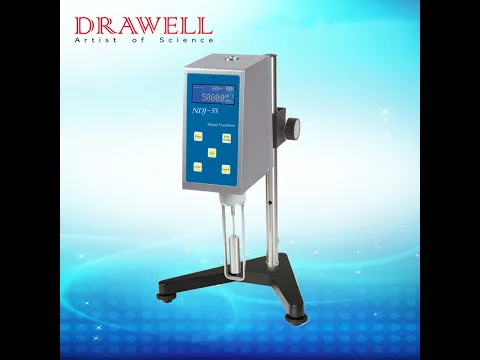

NDJ Viscometer Operation
Digital Viscometer

Features of Digital Viscometer

1. Stable speed.
2. It can be used as a stand-alone computer, or it can be connected to a micro printer and a computer to realize data collection.
3. The speed, rotor number, viscosity, torque, and temperature can be displayed simultaneously.
4. Different standard spindles can be selected according to needs.

Low Viscosity Viscometer:

Medium & High Viscosity Viscometer:

High-Temperature Digital Viscometer:

HBDV-1H Digital Viscometer(1)

HBDV-1H Digital Viscometer

• Temp. Range: RT+10℃~300℃
• Measuring Range: 800~80,000,000 mPa·s
• Rotating Speed: 0.1~99.9(Stepless Gear)
• Spindles: 21、27、28、29
HBDV-2H Digital Viscometer (1)

HBDV-2H Digital Viscometer

• Rotating Speed: 0.1~200(Stepless Gear)
• Temp. Range: RT+10℃~300℃
• Measuring Range: 400~80,000,000 mPa·s
• Spindles: 21、27、28、29
LVDV-1H Digital Viscometer(1)

LVDV-1H Digital Viscometer

• Temp. Range: RT+10℃~300℃
• Measuring Range: 10~1,000,000 mPa·s
• Rotating Speed: 0.1~99.9 (Stepless Gear)
• Spindles: 21、27、28、29
LVDV-2H Digital Viscometer (1)

LVDV-2H Digital Viscometer

• Temp. Range: RT+10℃~300℃
• Measuring Range: 5~1,000,000 mPa·s
• Rotating Speed: 0.1~200 (Stepless Gear)
• Spindles: 21、27、28、29
RVDV-1H Digital Viscometer(1)

RVDV-1H Digital Viscometer

• Temp. Range: RT+10℃~300℃
• Measuring Range: 100~10,000,000 mPa·s
• Rotating Speed: 0.1~99.9 (Stepless Gear)
• Spindles: 21、27、28、29
RVDV-2H Digital Viscometer (1)

RVDV-2H Digital Viscometer

• Temp. Range: RT+10℃~300℃
• Measuring Range: 50~10,000,000 mPa·s
• Rotating Speed: 0.1~200 (Stepless Gear)
• Spindles: 21、27、28、29
SNB-RH Digital Viscometer(3)

SNB-RH Digital Viscometer

• Temp. Range: RT+10℃~300℃
• Measuring Range: 50~200,000 mPa·s
• Rotating Speed: 5,10,20,50,100
• Spindles: 21、27、28、29

Structure of Digital Rotational Viscometer

Structure of Digital Rotational Viscometer
LVDV Low Viscosity Viscometer
  1. It can be used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.
  2. It is widely used to test the viscosity of oils, paints, plastics, coatings, detergents, medicines and other items.

Advantages of Digital Rotational Viscometer

  1. It can be used to describe shear thinning and time-dependent behavior and can measure the viscosity of opaque, settling or non-Newtonian fluids.
  2. The speed of the rotating part can be simply adjusted for easy operation.
  3. Connect to a computer via RS232 interface to facilitate automatic measurements.

Applications of Digital Viscometer

Rotational viscometer has a very close relationship with petroleum, chemical, electric power, textile, metallurgy, textile and national defense, and other fields.

It is an important means for industrial process control, product quality improvement, and energy conservation and development. In scientific fields such as physical chemistry and fluid mechanics, viscosity measurement plays an important role in understanding fluid properties and studying flow conditions. For example, in the medical industry, measuring the viscosity of blood and physiological fluids is a newly developed diagnostics, especially an important diagnostic method for cardiovascular diseases, cancers, tumors, and other difficult and miscellaneous diseases. It is widely used in petroleum, grease, paint, ink, slurry, food, medicine, coating, cosmetics, and other industries.

application of Digital Viscometer

How to Select Digital Viscometer Spindle

  1. Spindles with mark * are optional.
  2. The NO. 21, 27, 28 and 29 spindles are equipped with small sample adaptor which is optional; temperature-controlled heaters are standard.
  3. K=1000, M=1000000.
Digital Viscometer Spindle

Digital Rotational Viscometer Optional Accessories

  • Extreme low viscometer adapter (with one spindle L0)
  • Small sample adapter (with spindle 21, 27, 28 and 29 each)
  • RTD temperature probe
  • Temperature-controlled heater
  • Printer
  • Data acquisition analysis and plotting software
  • DV programmable download software
