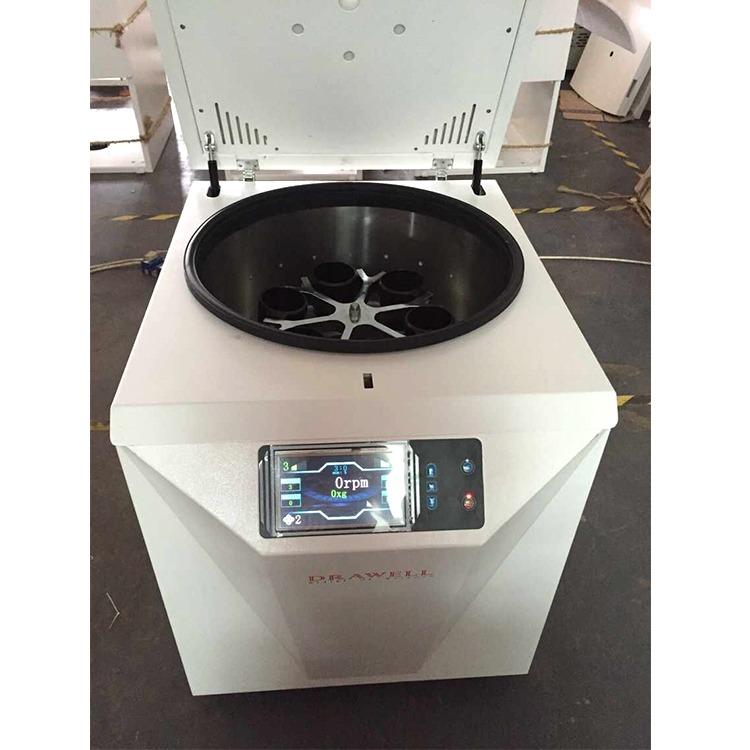

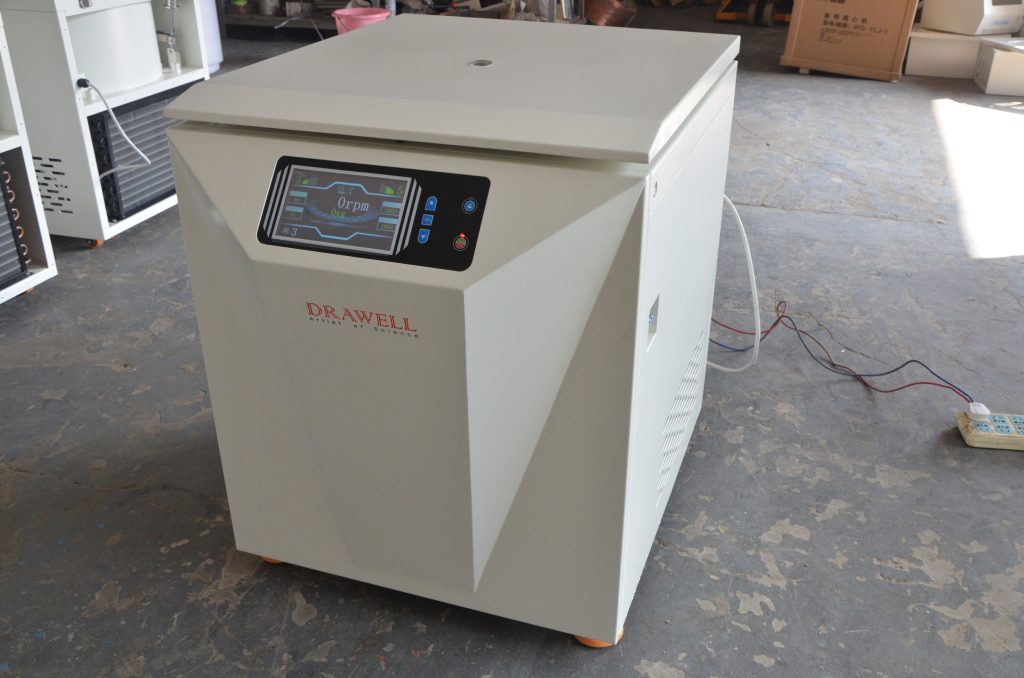

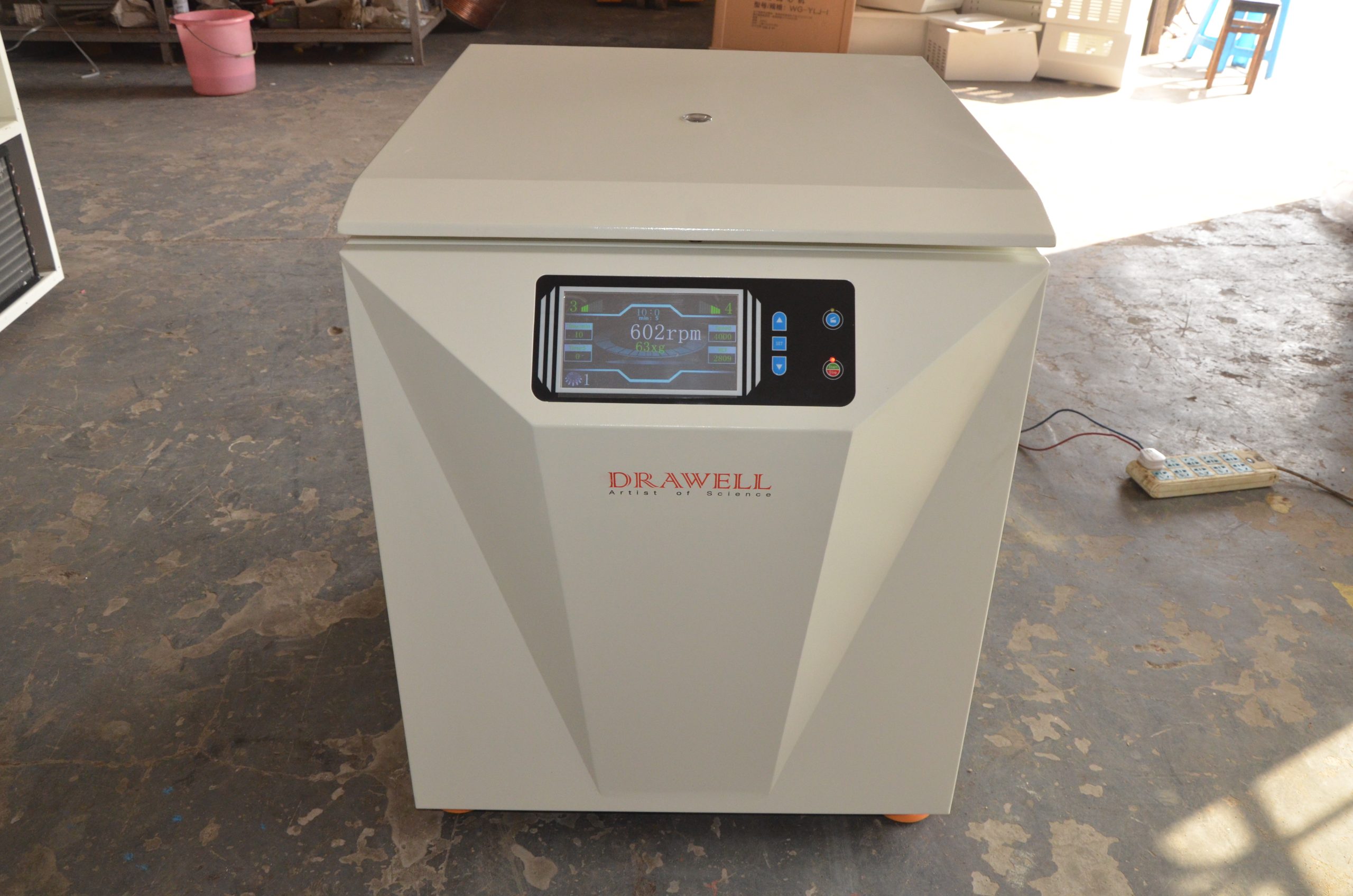

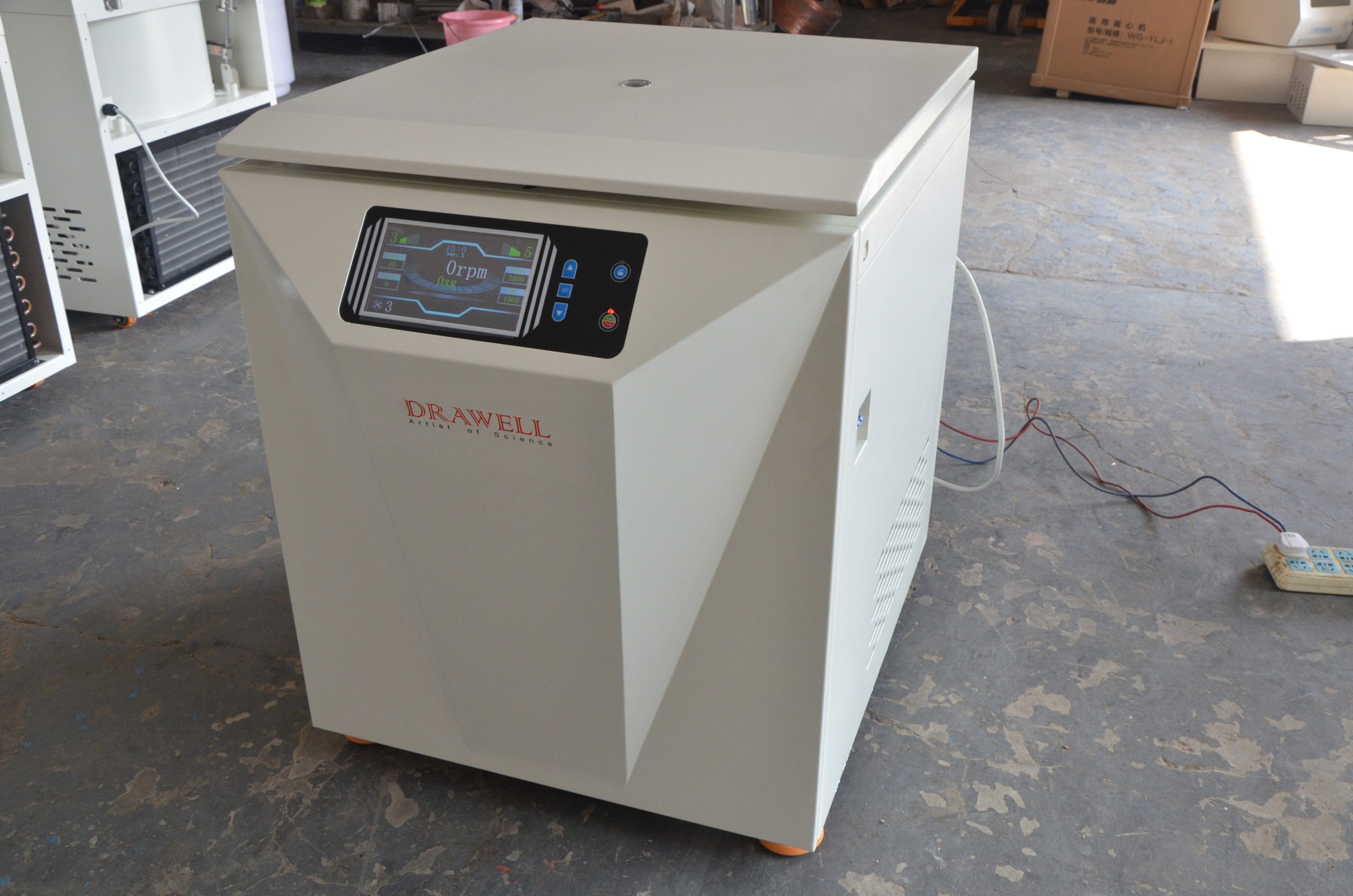

DD5-MC/DD6-MC Floortype Refrigerated Centrifuge
DD5-MC/DD6-MC is a model, which compact size and with a large capacity refrigerated function.
Widely used in Hospital, Blood banks, Bio-Chemistry, Bio-pharmaceutical, Scientific research, etc.
Features of DD5-MC/DD6-MC Refrigerated Centrifuge

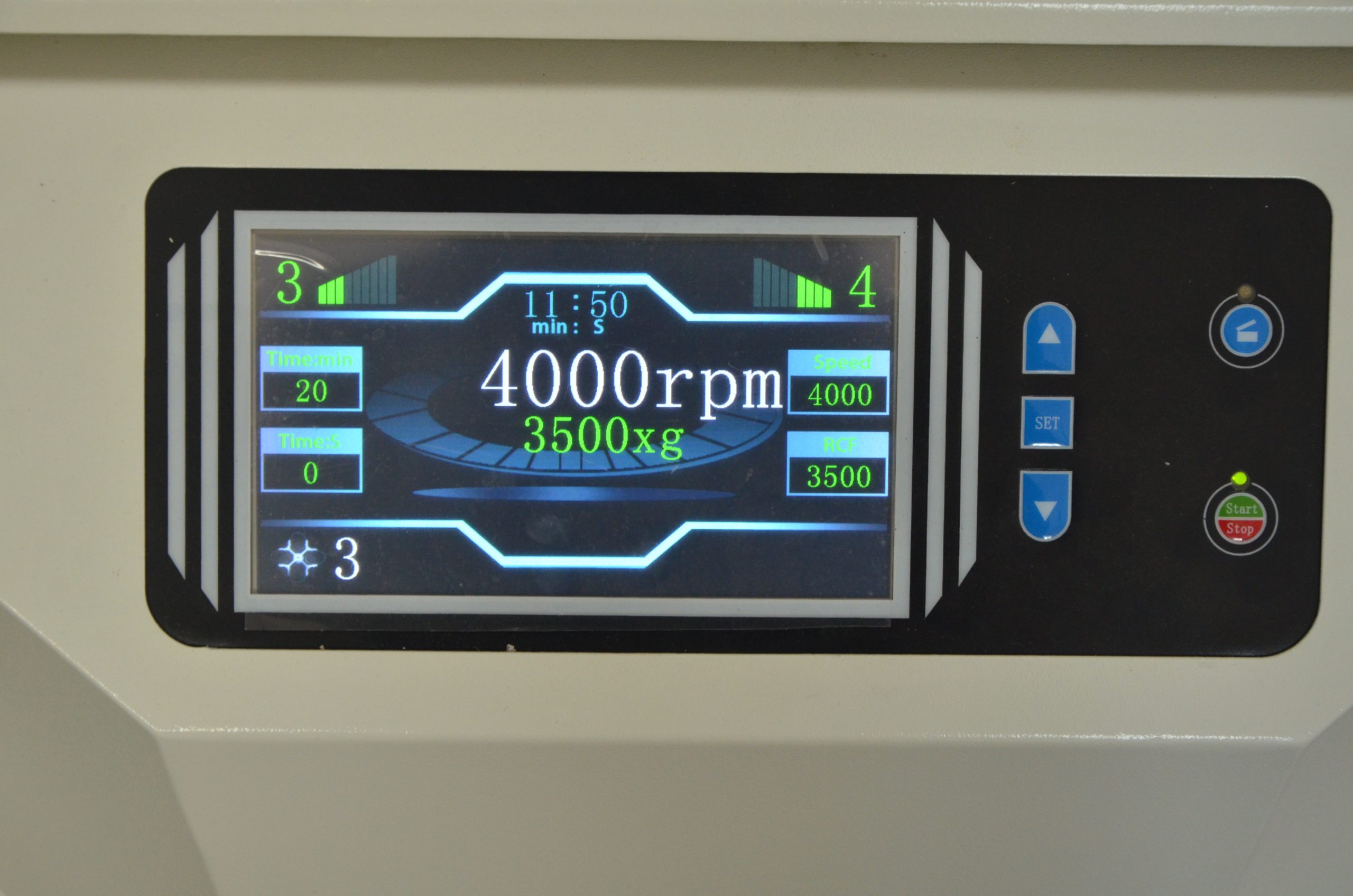

1. Advanced CPU control system:
Can more accurately control speed, time, and relative centrifuge.
2. Maintenance-free AC variable frequency motor:
Centrifugal speed and force step increase adjusted to 10rpm/10±g.
Time control: 0-99 minutes, accuracy ±1 second.
3. Stainless steel cavity & Sturdy structure:
Suitable for continuous use, inflatable spring, easy-open lid, the auto-locking lid to ensure safety.
4. Advanced electronic imbalance detection system:
Monitor the centrifuge process in real-time to ensure a safe operation.
5. Super-hard aluminum alloy rotor: With sealing performance and unlimited high-temperature sterilization resistance.
6. False alert: When the operation is over, or there is an error/imbalance, the sound signal prompts and the operation stops at the same time.
7. Lid open programmable, motorized, Lid dropping protection.
8. Manual emergency lid release: Very useful in unexpected power interruption; Can’t run when the lid is open, nor open the lid when rotor runs.
Technical Parameters of DD5-MC/DD6-MC Centrifuge
|
Model |
DD6-MC |
DD5-MC |
|
Max Speed |
6000r/min ±10rpm |
5000r/min ±10rpm |
|
Max RCF |
5120×g |
4390×g |
|
Max Capacity |
6×500ml |
|
|
Temperature Range |
-20℃~+40℃ ±1℃ |
|
|
Timer |
0~99min |
|
|
Noise |
≤60dB(A) |
|
|
Motor |
Converter motor |
|
|
Power Supply |
AC220V & 110V50Hz 5A |
|
|
Dimension |
800×600×825mm(L×W×H) |
|
|
Weight |
150kg |
|
Rotors
|
Rotor No. |
Capacity |
Max Speed |
Max RCF |
|
No.1 AR |
12×15/10ml |
6000 r/min |
6680 xg |
|
No.2 SR |
4×750ml |
4000 r/min |
4390 xg |
|
4×500ml |
4000 r/min |
3500 xg |
|
|
No.3 SR |
4×250ml |
4000 r/min |
3600 xg |
|
No.4 SR |
6×300/250ml |
4000 r/min |
3940 xg |
|
No.5 SR |
6×500ml |
4000 r/min |
3780 xg |
|
No.6 SR |
72×5/7ml |
4000 r/min |
3440 xg |
|
148×5/7ml |
4000 r/min |
||
|
No.7 SR |
2×2×96 holes |
4000 r/min |
2300 xg |
|
No.8 SR |
8×50ml |
4000 r/min |
3020 xg |
|
24/32×10/15ml |
|||
|
48x7ml |
|||
|
No.9 SR |
4×100ml |
5000 r/min |
4390 xg |
