Benchtop Automatic Balance Low-Speed centrifuge TDZ5-WS / iTDZ5-WS

  1. Stainless Steel Chamber, Full metal structure and microprocessor controlled,running stable.
  2. Safety Interlock system that prevents opening the centrifuge lid during running.
  3. With Emergency lid lock release, in case of power off.
  4. Imbalance sensor, Over speed detection
  5. 10 programs can be stored, quickly recall the last used program.
  6. With air cooling fans to avoid high temperature with long time working.
  7. Digital /LCD/Touch LCD display for option, which indicated the Speed, time, RCF etc.
  8. Rotor automatically identification function to avoid over speed running.(iTDZ5-WS)
  9. Equipped with USB cord to connect PC(iTDZ5-WS)
  10. Full automactically electric control to both open and close door lid, no need to manual close door lid.(iTDZ5WS)
iTDZ5-WS Brochure

Basic Introduction of Benchtop Automatic Balance Low-Speed Centrifuge TDZ5-WS / iTDZ5-WS

TDZ5-WS / iTDZ5-WS low speed centrifuge are widely used in medical and Biological Field, Health Examinationcenter, and laboratories etc.

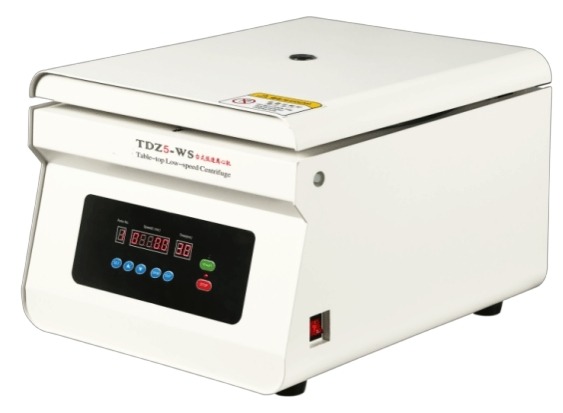

Benchtop Automatic Balance Low-Speed Centrifuge TDZ5-WS
Digital Display
Benchtop Automatic Balance Low-Speed centrifuge TDZ5-WS-1
LCD Display

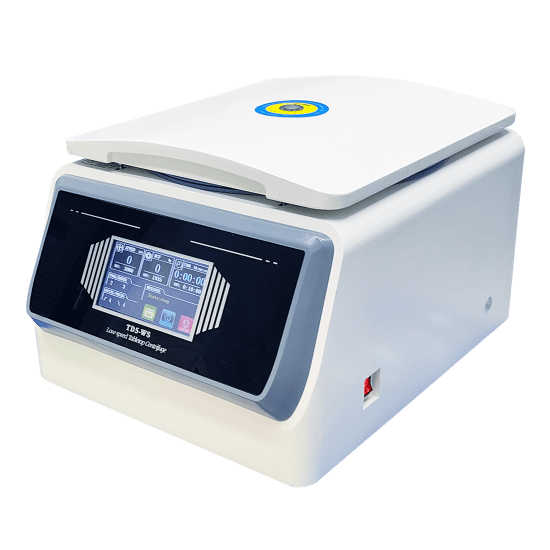

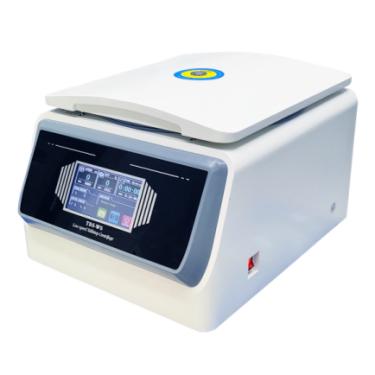

Benchtop Automatic Balance Low-Speed centrifuge iTDZ5-WS
Intelligent Type

Parameters of Benchtop Automatic Balance Low-Speed centrifuge TDZ5-WS / iTDZ5-WS

ModelTDZ5-WSiTDZ5-WS
DisplayDigitalLCDTouch LCD
Max Speed/RCF5500r/min  5220×g
Speed Accuracy±10rpm
Timer Range0~99min59s
Rotor No.Rotor CapacitySpeed (r/min)RCF (xg)
No.1 Angle Rotor10/12×15ml55005220
No.2 Swing Rotor4×100ml40003020
No.3 Swing Rotor8×50ml40003020
 8×100ml40003020
No.4 Swing Rotor32×15ml40003020
No.5 Swing Rotor32×10ml40003020
No.6 Swing Rotor24×10/15ml40003020
No.7 Swing Rotor48×5ml40003020
No.8 Swing Rotor72×2/5ml40003020
No.9 Swing Rotor4×250ml40003300
No.10 Swing Rotor48×15ml40003300
No.11 Micro plates 2×2×96holes40002300
Timer Range0~99mins
Noise≤60dB(A)
Power SupplyAC220V & 110V 50Hz 5A
Dimension545×452×370mm(L×W×H)
Weight39kg

Note: Rotors can be customized
