All Steel Vertical Desktop Laminar Flow Cabinet VD-650 / VD-850

The air is inhaled through the fan and then filtered by the HEPA filter through the static pressure box. After that, the filtered clean air is sent out in the state of vertical or horizontal airflow, so that the operation area continues to reach 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.

Application Range

The vertical flow clean bench is noisier than the horizontal clean bench because its fan is installed at the top. The wind blows vertically so it is often used in medical engineering to ensure the operator’s health.

Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals, optoelectronics, microelectronics, hard disk manufacturing, and other fields.

Characteristics

  • The whole equipment adopts cold-rolled plate welding, and the surface is electrostatically sprayed. Its worktop is stainless steel 304.
  • The air supply mode of the equipment is divided into vertical air supply and horizontal air supply, quasi-closed glass damper, which is easy to operate.
  • Small and exquisite, it can be freely placed on the general workbench for operation, which is convenient for small studios.
  • The fan system is controlled by a remote switch with fast and slow dual speeds to ensure that the wind speed in the work area is always in an ideal state.

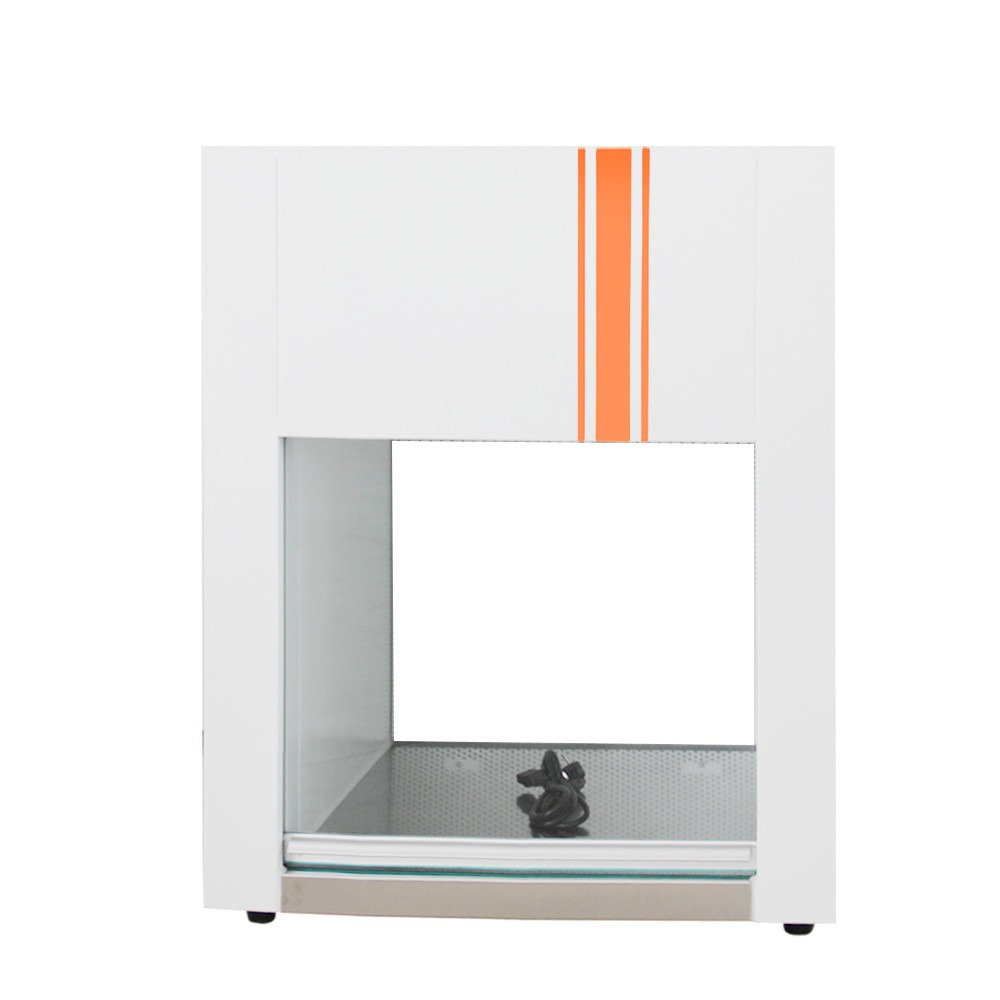

VD 650

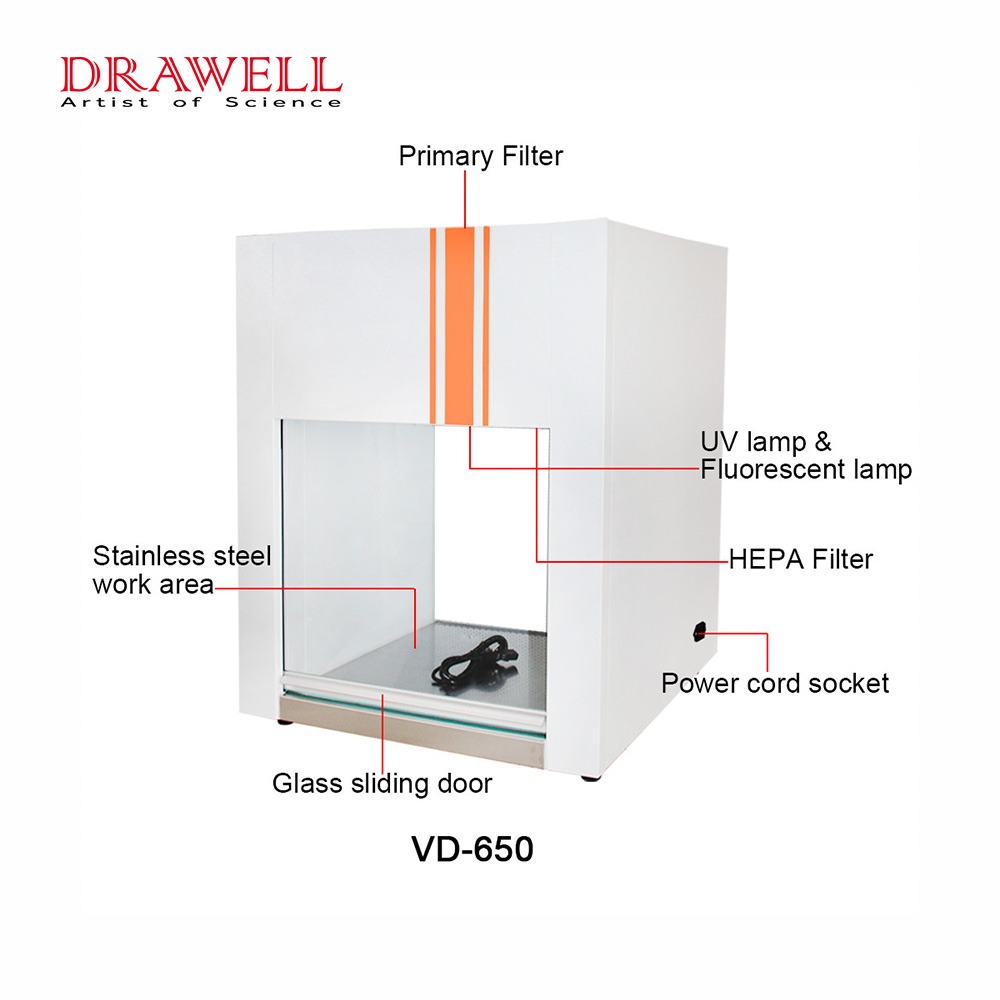

VD 650 structure

Technical Parameters

Model

VD-650

Clean grade

Grade 100(209 E U.S. Federal)

Number of bacteria

≤ 0.5 per utensil.hour(90mm utensil)

Noise

≤62dB

Power

220V/50HZ

wind speed

0.25-0.45m/s

illumination

≥300LX

Working area dimension(W*D*H)

490×490×490mm

Overall dimension(W*D*H)

650×530×850mm

HEPA filter size and quantity

475×410×38×①

Fluorescent/UV lamp specifications and quantity

5W×①/10W×①

VD 850
VD 850 structure

Technical Parameters

Model

VD-850

Clean grade

Grade 100(209 E U.S. Federal)

Number of bacteria

≤0.5 per utensil.hour(90mm utensil)

Noise

≤62dB

Power

220V/50HZ

wind speed

0.25-0.45m/s

illumination

≥300LX

Working area dimension(W*D*H)

690×490×490mm

Overall dimension(W*D*H)

850×530×850mm

HEPA filter size and quantity

675×410×38×①

Fluorescent/UV lamp specifications and quantity

12W×①/20W×①
