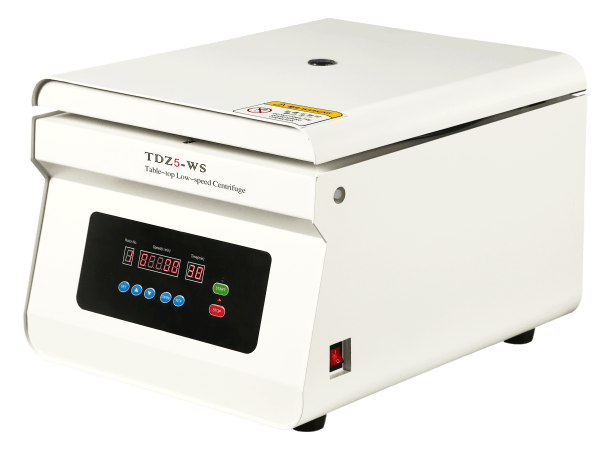

5500r/min TDZ5-WS Benchtop Low-speed Large Capacity Centrifuge

TDZ5-WS low speed centrifuges are widely used in medical and Biological fields, Health Examination centers, laboratories, etc.

Features of TDZ5-WS Benchtop Low-speed Large Capacity Centrifuge

  1. Stainless Steel Chamber, Full metal structure, and microprocessor controlled
  2. Safety Interlock system that prevents opening the centrifuge lid during running.
  3. With Emergency lid lock release, in case of power off.
  4. Imbalance sensor, Over speed
  5. 10 programs can be stored, and quickly recall the last used program.
  6. With air cooling fans to avoid high temperature with long time working.
  7. Digital or LCD display for choice, which indicated the Speed, time, RCF, etc.
TDZ5-WS--Digital-白底
Digital Display
TDZ5-WS--LCD-白底
LCD Display
TD5-WS-Intelligent Type
Intelligent Type

Panel features of TDZ5-WS Low-speed Centrifuge

  1. The TED digital display shows the parameter setting value and actual value at the same time;
  2. When the operation is over or there is an error, the sound signal will prompt, and the operation will stop at the same time, and the digital text will be displayed;
  3. 10 grades of Acc/Dec rate, which can be set or saved parameters freely.

Technical Parameters of TDZ5-WS Low-speed Centrifuge

ModelTDZ5-WS
Max Speed5500r/min
Speed Accuracy±10rpm
Max RCF5220×g
Timer Range0~99mins
Noise≤65dB(A)
Power SupplyAC220V & 110V 50Hz 5A
Dimension580×450×360mm(L×W×H)
Weight39kg

Rotor of TDZ5-WS Low-speed Centrifuge

Rotor No.

Rotor Capacity

Speed (r/min)

RCF (xg)

No.1 Angle Rotor

12×10/15ml

5500

5220

No.2 Swing Rotor

4×100ml

4000

3020

No.3 Swing Rotor

8×50ml

4000

3020

8×100ml

4000

3020

No.4 Swing Rotor

32×10/15ml

4000

3020

No.5 Swing Rotor

24×10/15ml

4000

3020

No.6 Swing Rotor

16×10/15ml

4000

3020

No.7 Swing Rotor

48×5ml

4000

3020

No.8 Swing Rotor

4×250ml

4000

3300

48×10/15ml

4000

3000

No.9 Swing Rotor

72×2/5ml

4000

3000

No.10 Micro plates

2×2×96holes

4000

2300

TDZ5-WS Low-speed Centrifuge Display

TDZ5-WS LCD Display
TDZ5-WS LCD Display
TDZ5-WS LCD Display
