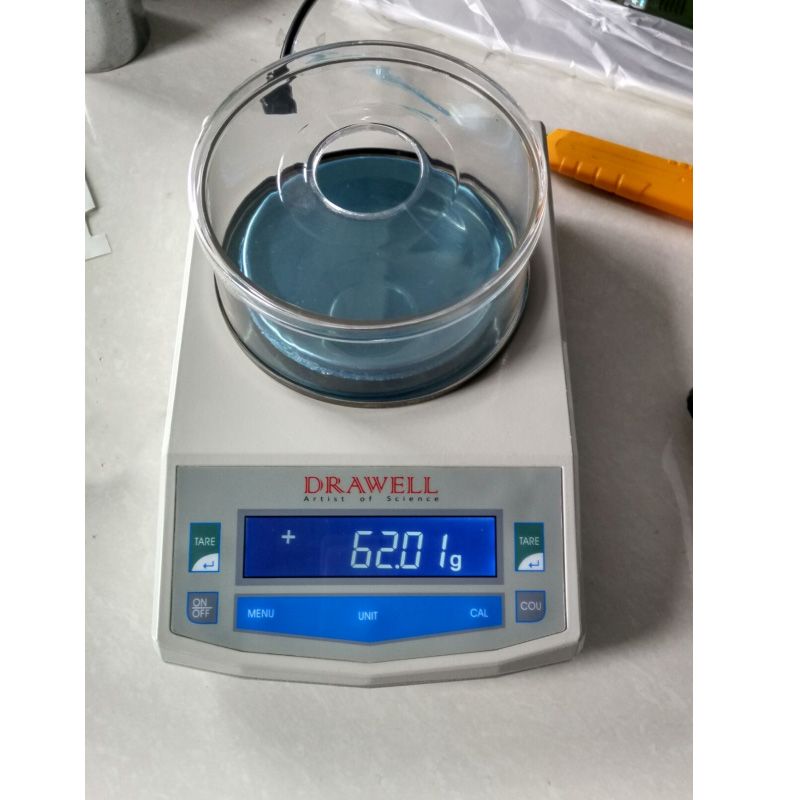

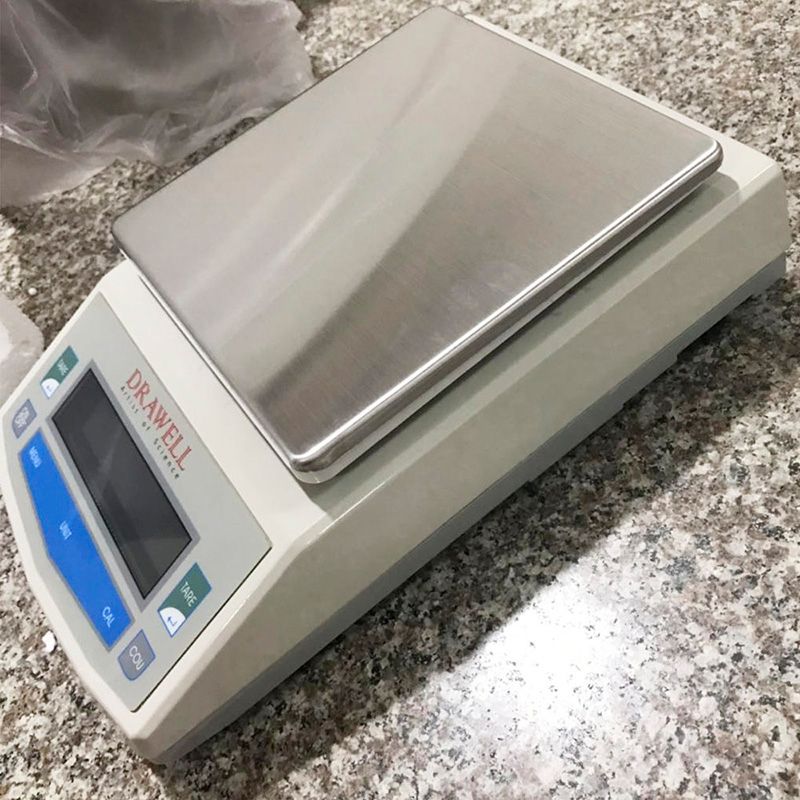

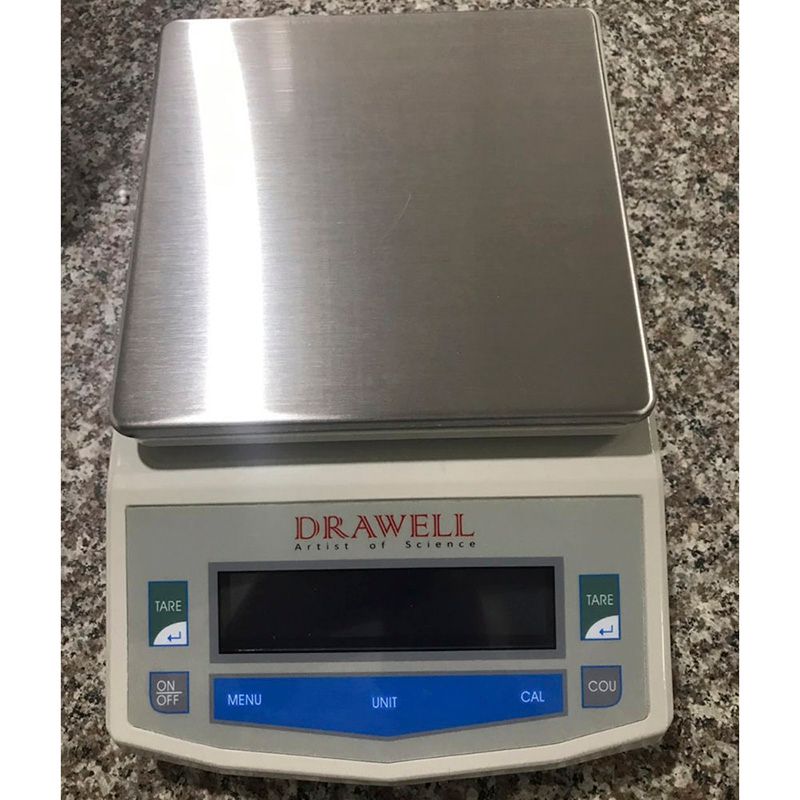

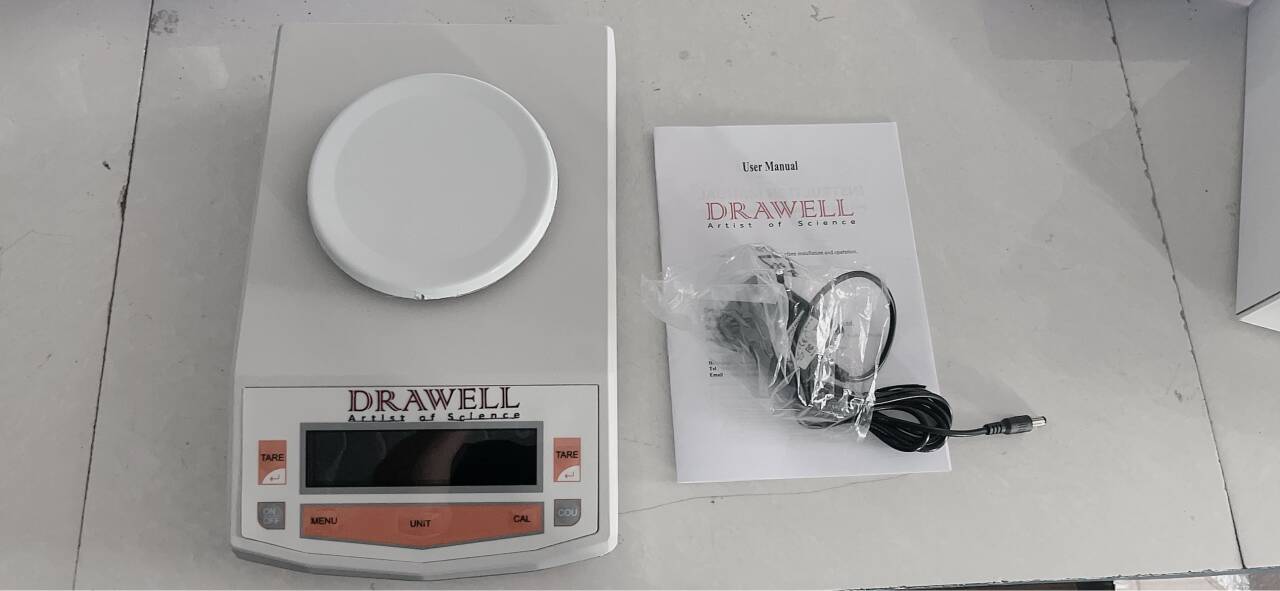

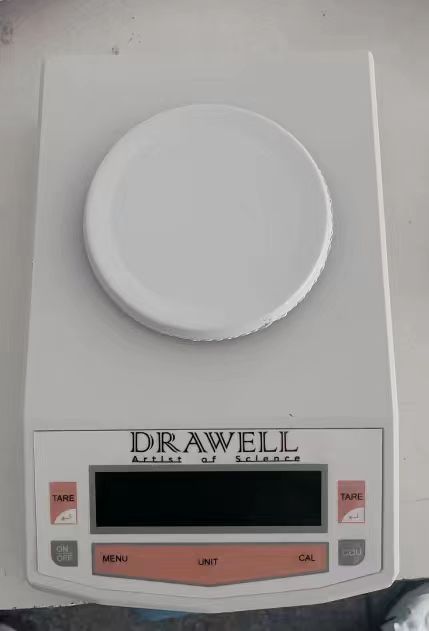

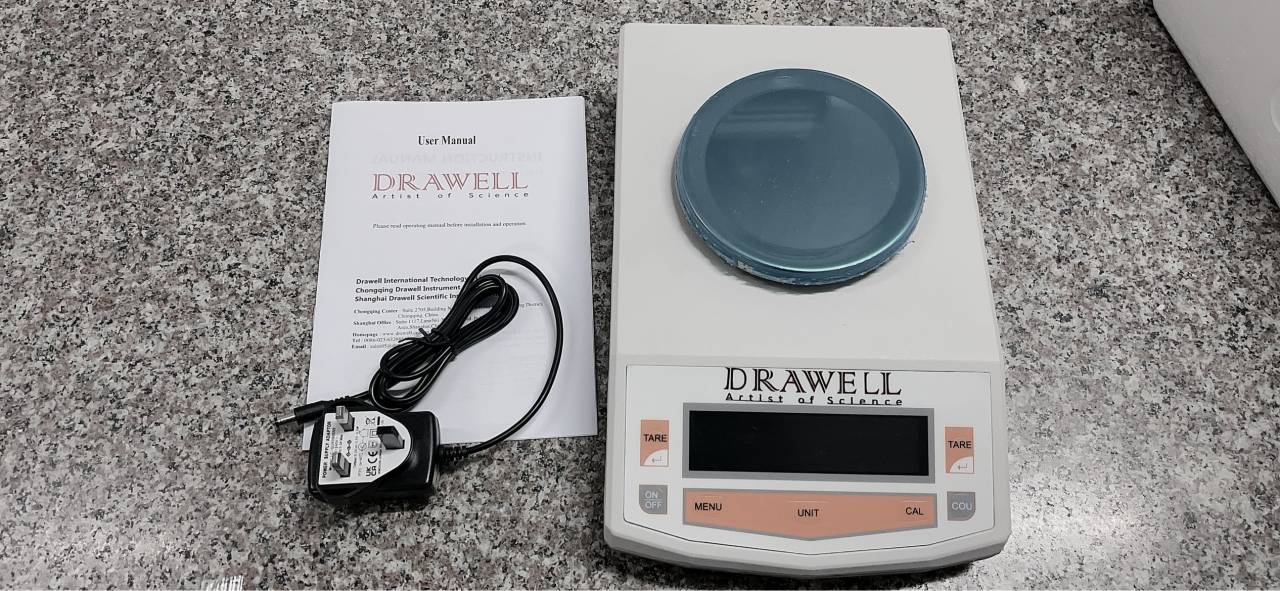

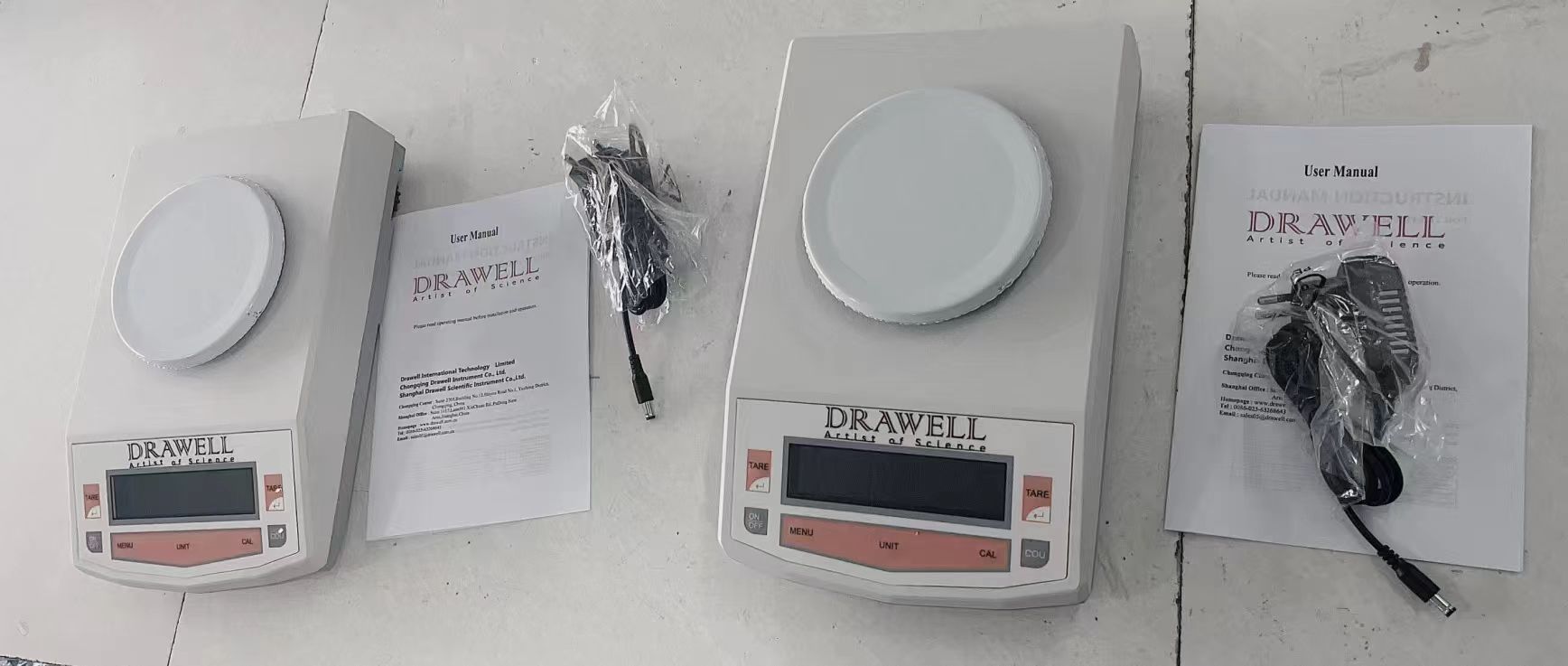

0.01g TD-D LCD Electronic Balance

  1. High-precision load cell.
  2. Aluminum Alloy die-cast base and mains.
  3. Stainless steel Platter.
  4. LCD display.
  5. Full capacity subtraction.
  6. Multi Weighing unit conversation g/mg/ct/oz.
  7. Below Balance Weighing Facility.
  8. Stabilization time 1.5 seconds.
  9. Overload Protection.
  10. Checking Weighing, and piece counting functions.

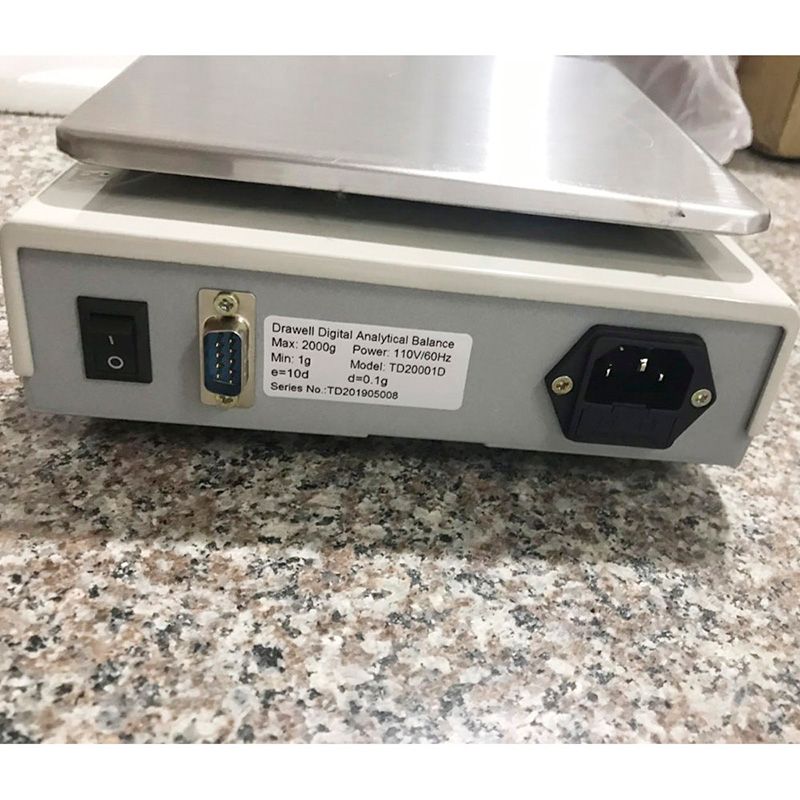

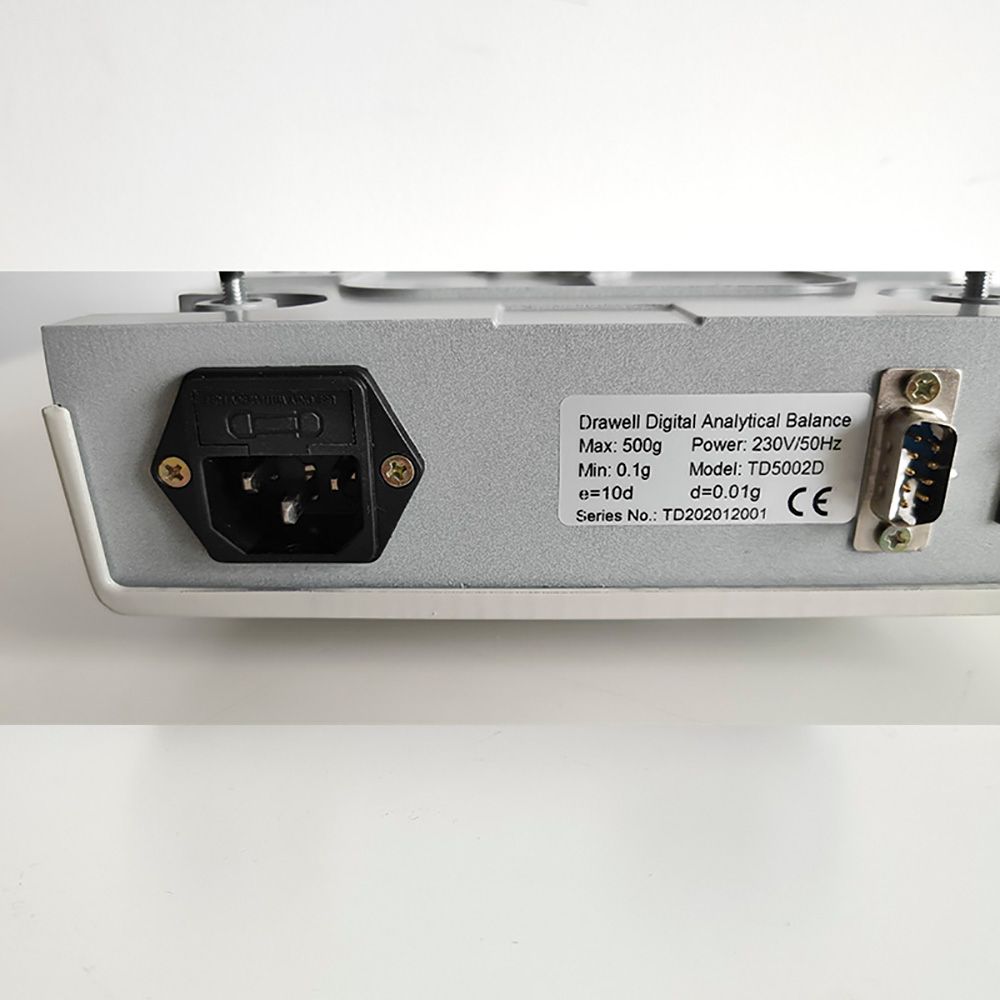

  11. RS232 Interface.
  12. Pan size:170*170mm.

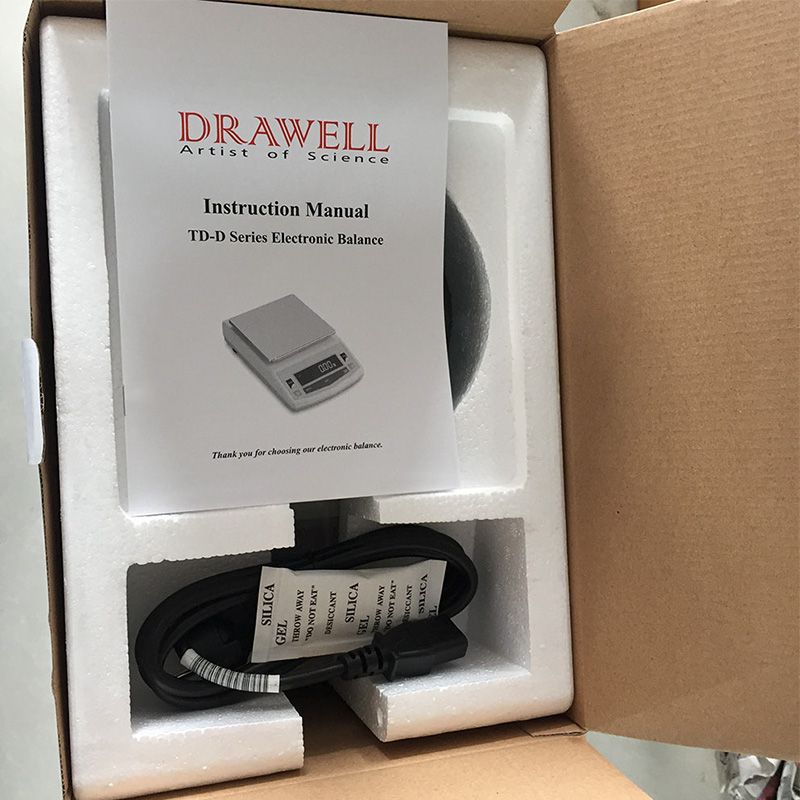

0.01g TD-D Manual
0.01g TD-D Brochure

Specifications of 0.01g TD-D LCD Electronic Balance

Model TD1002D TD2002D TD3002D TD5002D TD6002D TD10002D TD20002D Round Plate Picture
Capacity 0-100g 0-200g 0-300g 0-500g 0-600g 0-1000g 0-2000g Balance-TD5002D
Readability 0.01g
Repeatability ±0.02g
Linearity ±0.02g
Output Supply RS232
Platter size 170*170mm
Dimensions 290mm x 185mm x80mm
Net Weight 2500g
Power Supply AC110V/220-240V
Model TD30002D TD50002D Square Plate Picture
Capacity 0-3000g 0-5000g TD-D-square2
Readability 0.01g
Repeatability ±0.02g
Linearity ±0.02g
Output Supply RS232
Platter size 170*170mm
Dimensions 290mm x 185mm x80mm
Net Weight 2500g
Power Supply AC110V/220-240V
